TAP T906 BSF 3/8-20 SET 3 Pce STRAIGHT ISO529 HSS

TAP T906 BSF 3/8-20 SET 3 Pce STRAIGHT ISO529 HSS - Image 2

TAP T906 BSF 3/8-20 SET 3 Pce STRAIGHT ISO529 HSS - Image 3

TAP T906 BSF 3/8-20 SET 3 Pce STRAIGHT ISO529 HSS

SKU: HSTBSF38SETS/C: T9060953Barcode: 9311963093062

Usually ships in 1 day

$151.81inc
GST

Straight Flute Tap Sets – BSF

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

View all: HSS Taps - Hand & Machine - Sets

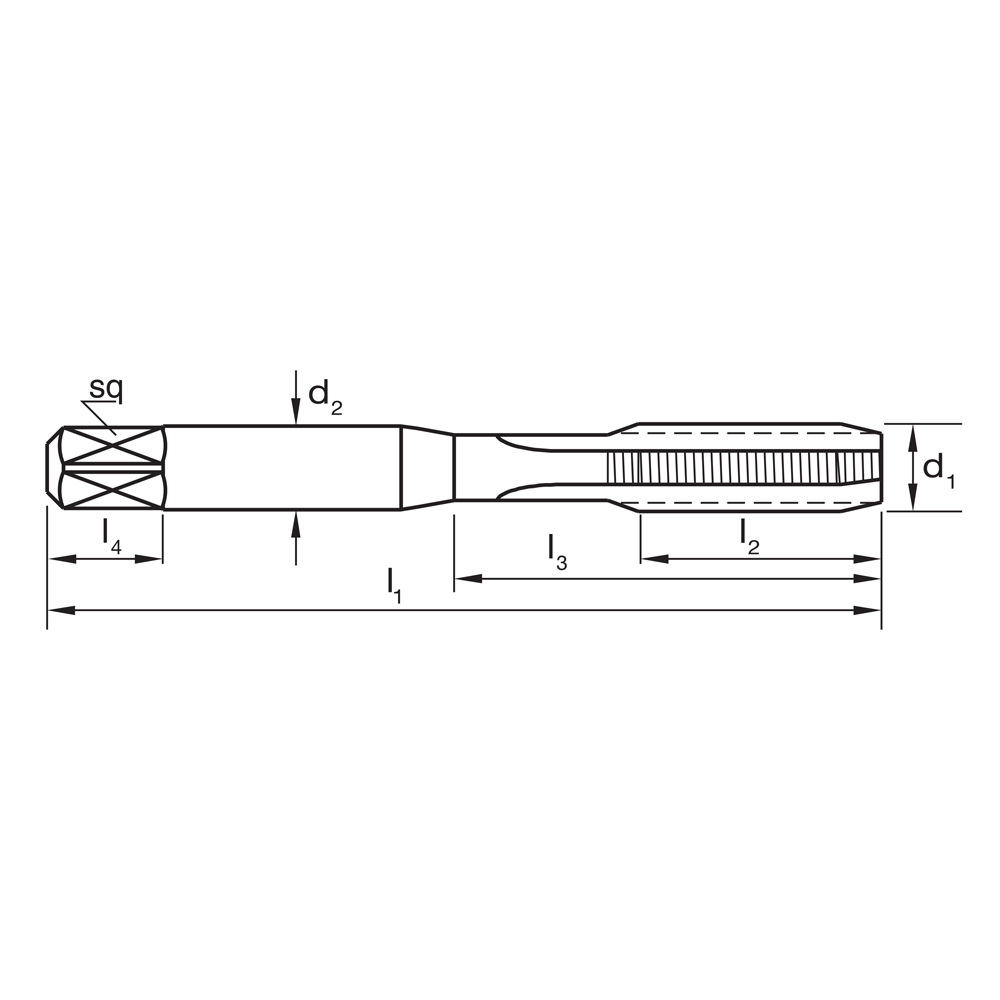

Technical Details
d1	3/8
d2	10
Drill Ø	8.3
Finish	Brt
l1	80
l2	24
Lead	Set
Material	HSS
Max Cut Depth	1xD
sq	8
Thread Form	BSF
TPI	20
Type	Straight Flute
