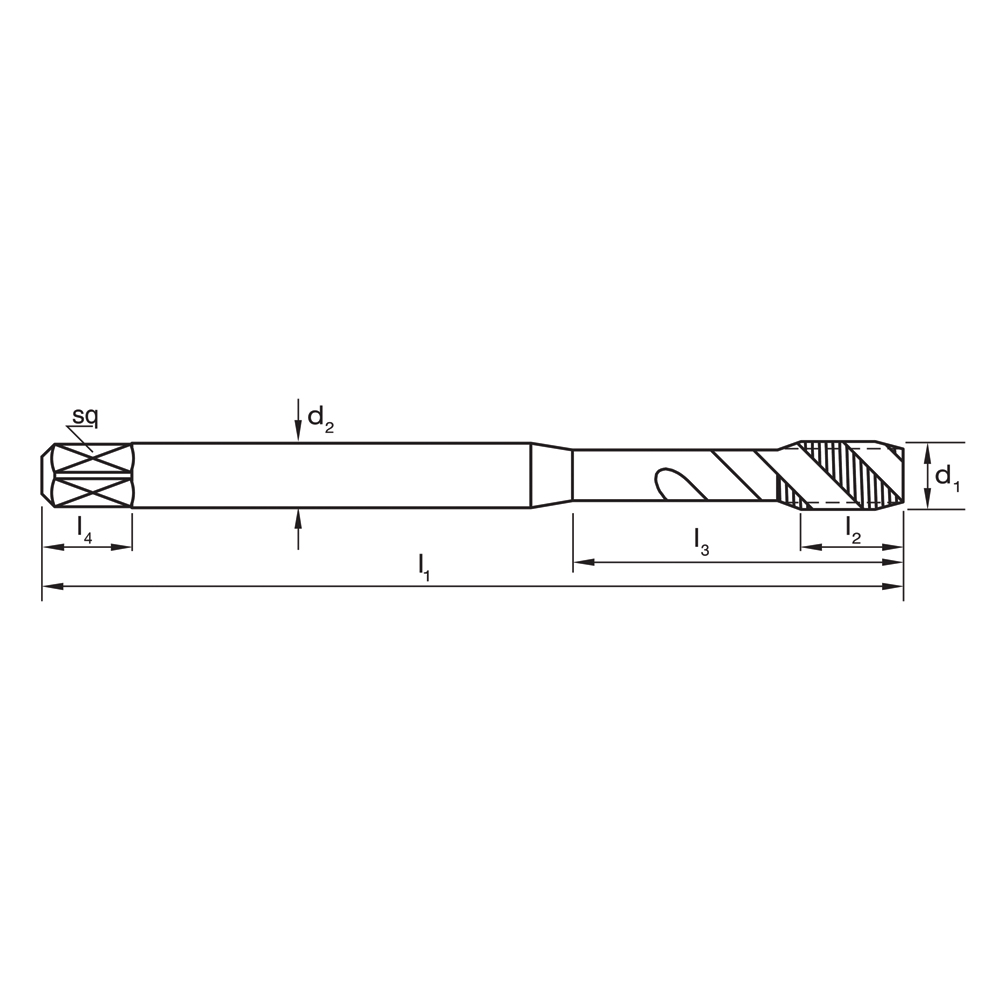

| Technical Details | |
|---|---|
| d1 | 3/8 |
| d2 | 10 |
| Drill Ø | 8.5 |
| Finish | Blu |
| Helix Angle | R40 |
| l1 | 100 |
| l2 | 15 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 2.5xD |
| sq | 8 |
| Thread Form | UNF |
| TPI | 24 |
| Type | Spiral Flute |

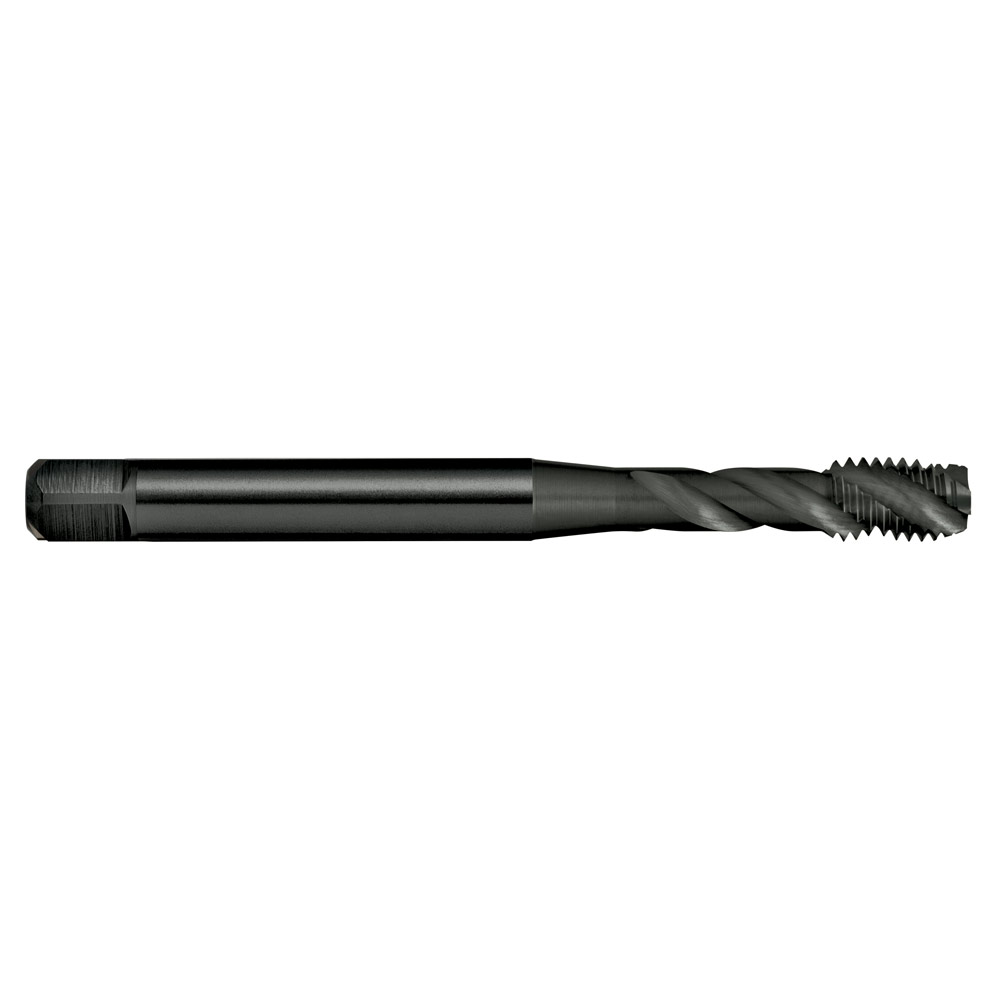

TAP T701 UNF 3/8-24 2B SPIRAL R40 N DIN2184-1 C HSSE BLU
$94.86inc
GST
Spiral Flute Taps – R40 N
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
View all: High Performance Taps - Spiral Flute
