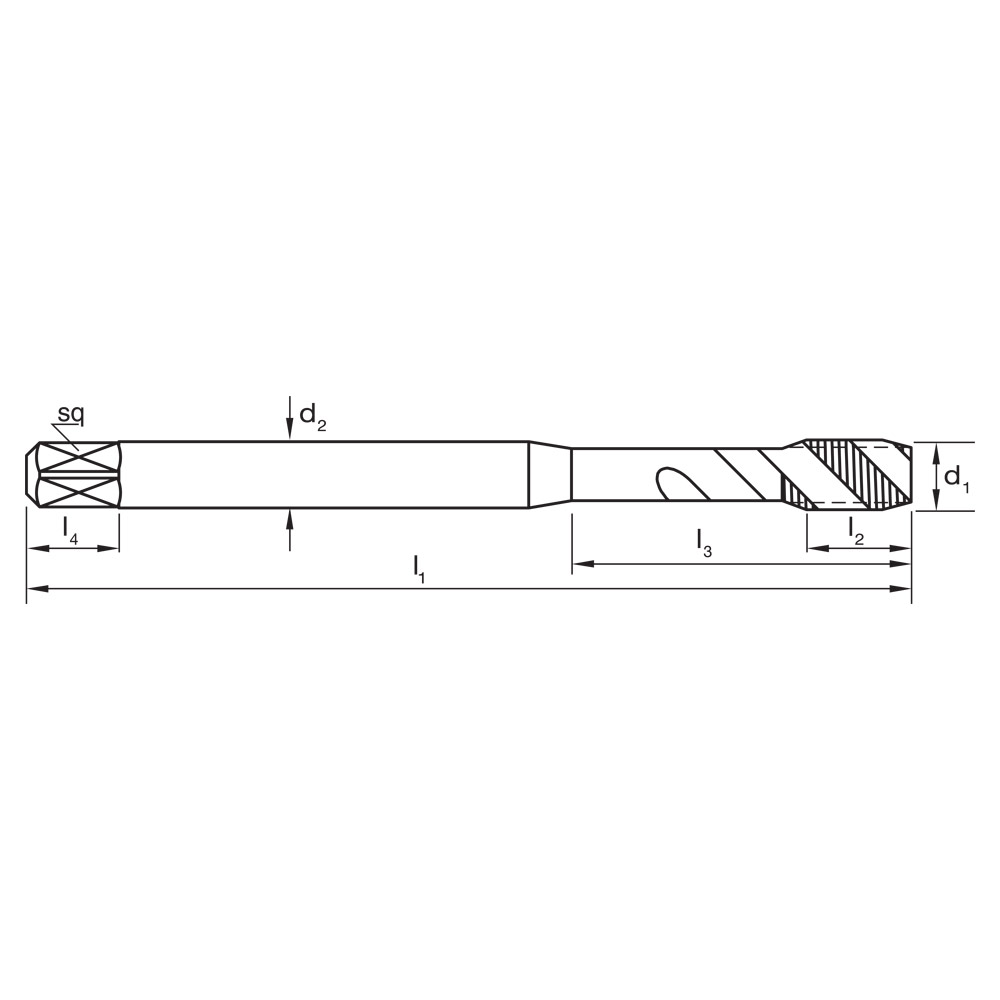

| Technical Details | |
|---|---|
| d1 | #6 |
| d2 | 4 |
| Drill Ø | 2.9 |
| Finish | TiCN |
| Helix Angle | R50 |
| l1 | 56 |
| l2 | 6 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 3 |
| Thread Form | UNF |
| TPI | 40 |
| Type | Spiral Flute |

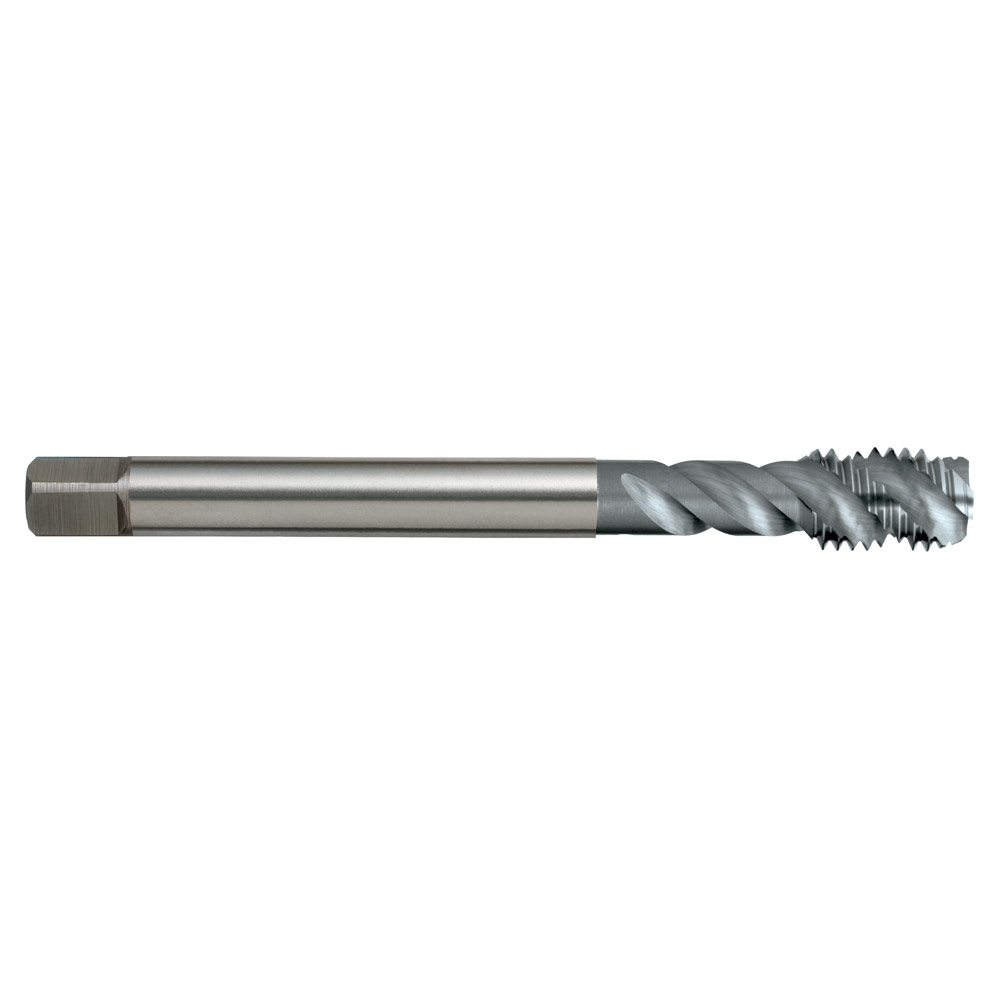

TAP T696 #6-40 UNF 2BX SPIRAL R50VA DIN2184-1 C PM-V3 TiCN
$92.65inc
GST
Spiral Flute Taps – R50 VAPM
- PM-HSSE V3 offers superior tool life
- Use in stainless steels and high strength steels up to 850N/mm2
- Blind holes up to 3 x d
- Suitable for synchronous tapping in machine operations
View all: High Performance Taps - Spiral Flute
