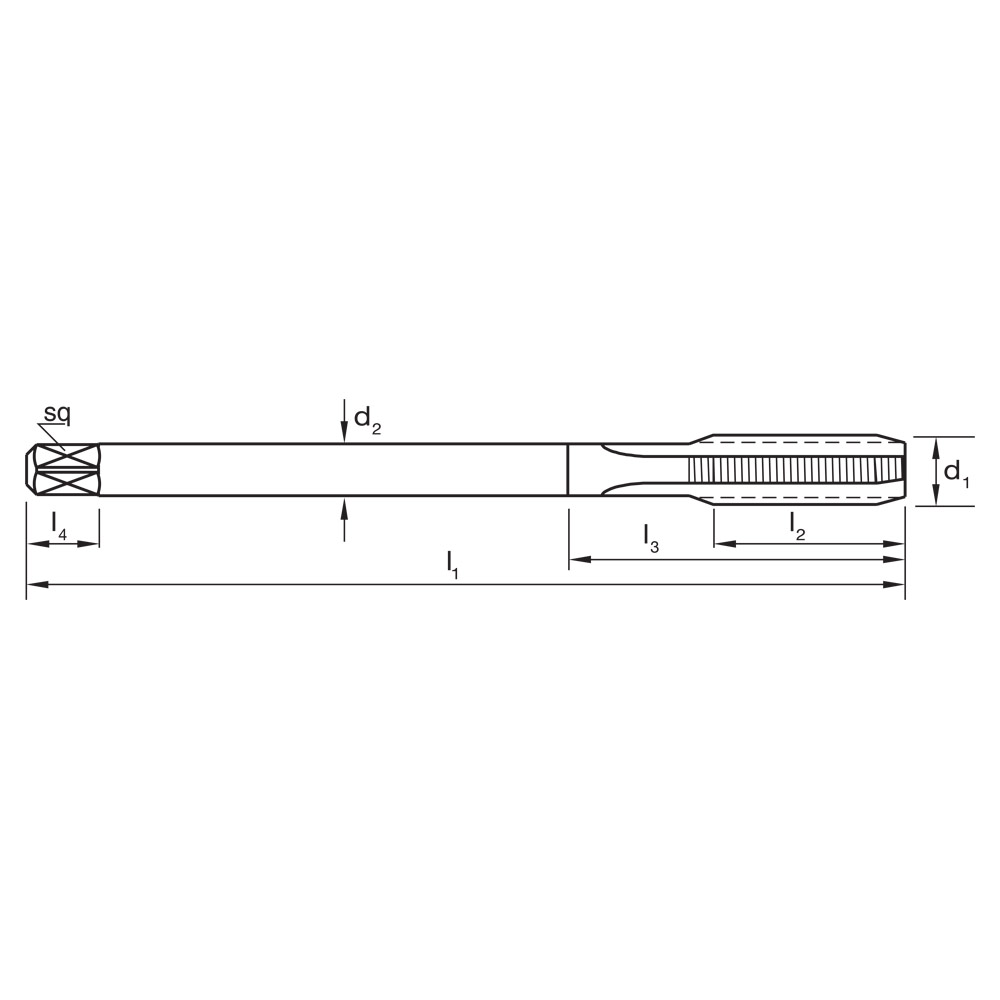

| Technical Details | |
|---|---|
| d1 | MF16 |
| d2 | 12 |
| Drill Ø | 14.5 |
| Finish | TiCN |
| l1 | 100 |
| l2 | 22 |
| Lead | Form E / 1.5 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 1.5xD |
| Pitch | 1.5 |
| sq | 9 |
| Thread Form | MF |
| Type | Straight Flute |

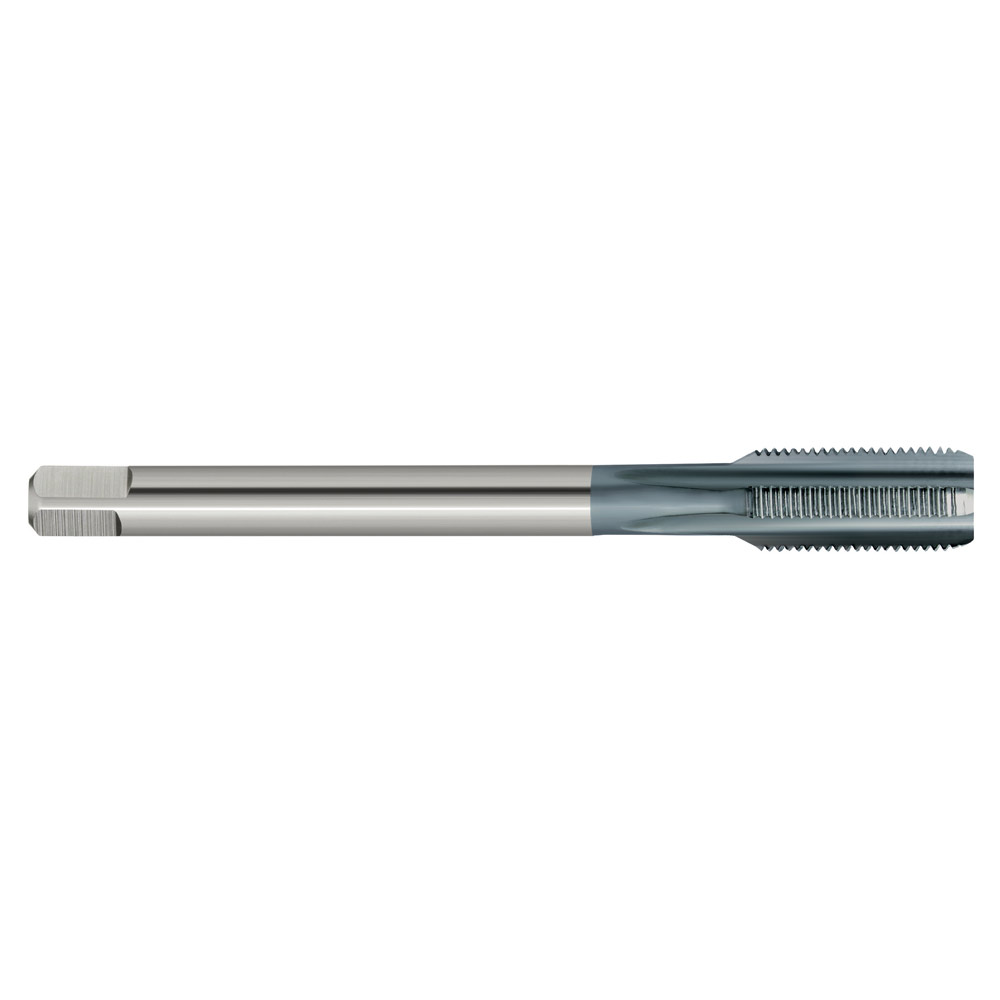

TAP T668 MF 16 x 1.5 6HX STRAIGHT DC DIN374 E PM TICN
$237.53inc
GST
Straight Flute Taps – DC
- Premium design for cast aluminium and cast iron (Short Chipping)
- Through & blind holes
- Depths up to approx. 1.5 x d
- Axial coolant duct available
View all: High Performance Taps - Straight Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
