| Technical Details | |
|---|---|
| d1 | 9/16 |
| d2 | 11 |
| Drill Ø | 12.2 |
| Finish | TiCN |
| Helix Angle | R15 |
| l1 | 110 |
| l2 | 20 |
| Lead | Form C / 3 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 1.5xD |
| sq | 9 |
| Thread Form | UNC |
| TPI | 12 |
| Type | Spiral Flute |

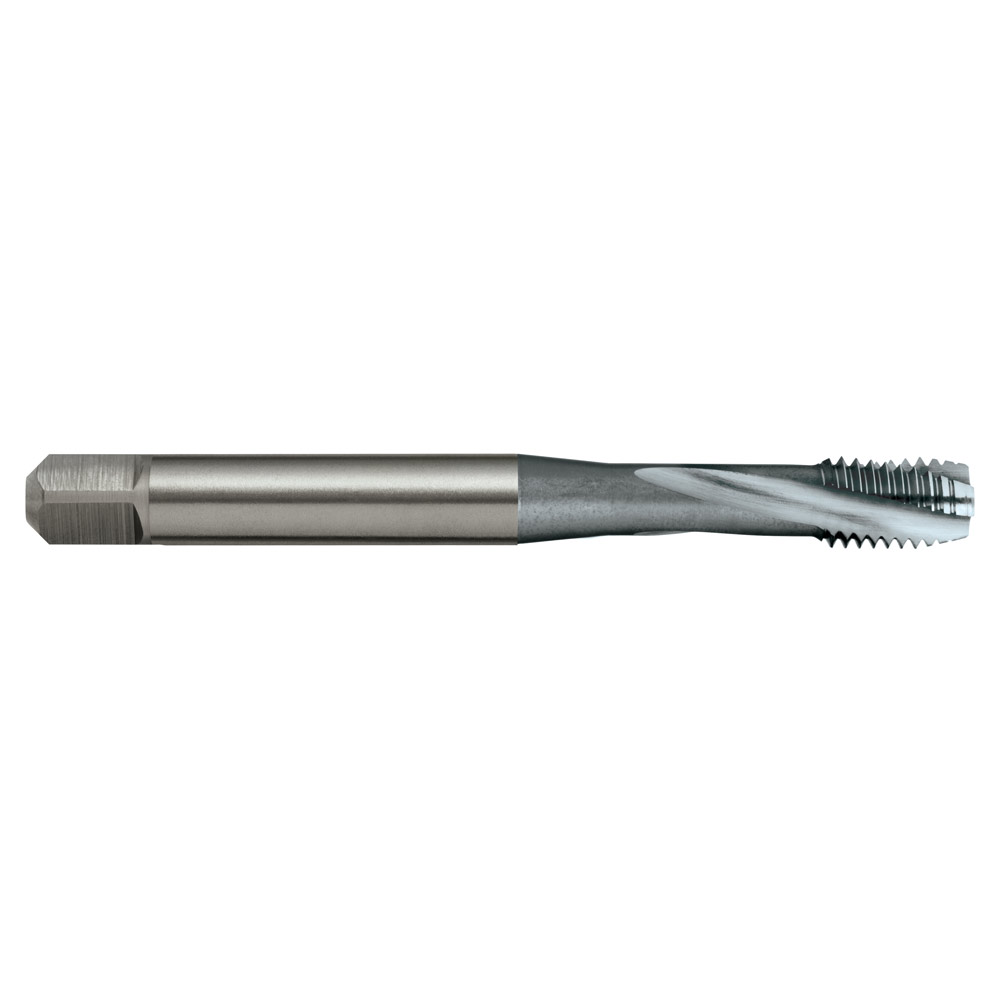

TAP T667 UNC 9/16-12 2BX SPIRAL R15H DIN2184-1 C PM-Co. TiCN
$123.85inc
GST
Spiral Flute Taps – R15 H
- Use in harder short chipping materials up to 45 HRc
- Blind holes
- Suitable for machine operations
- Depths up to approx. 1.5 x d1
View all: High Performance Taps - Spiral Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
