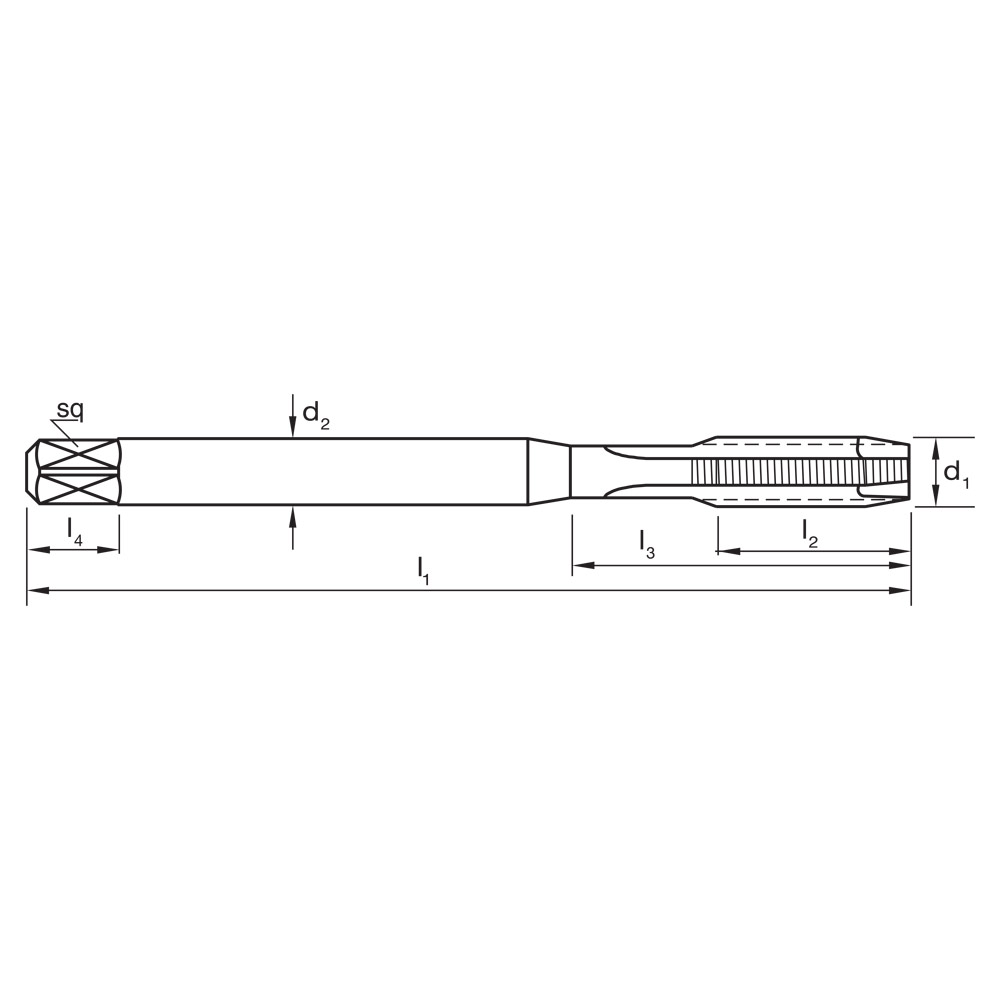

| Technical Details | |
|---|---|
| d1 | 3/4 |
| d2 | 14 |
| Drill Ø | 16.5 |
| Finish | TiCN |
| l1 | 125 |
| l2 | 34 |
| Lead | Form B / 4.5 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 3xD |
| sq | 11 |
| Thread Form | UNC |
| TPI | 10 |
| Type | Spiral Point (Gun) |

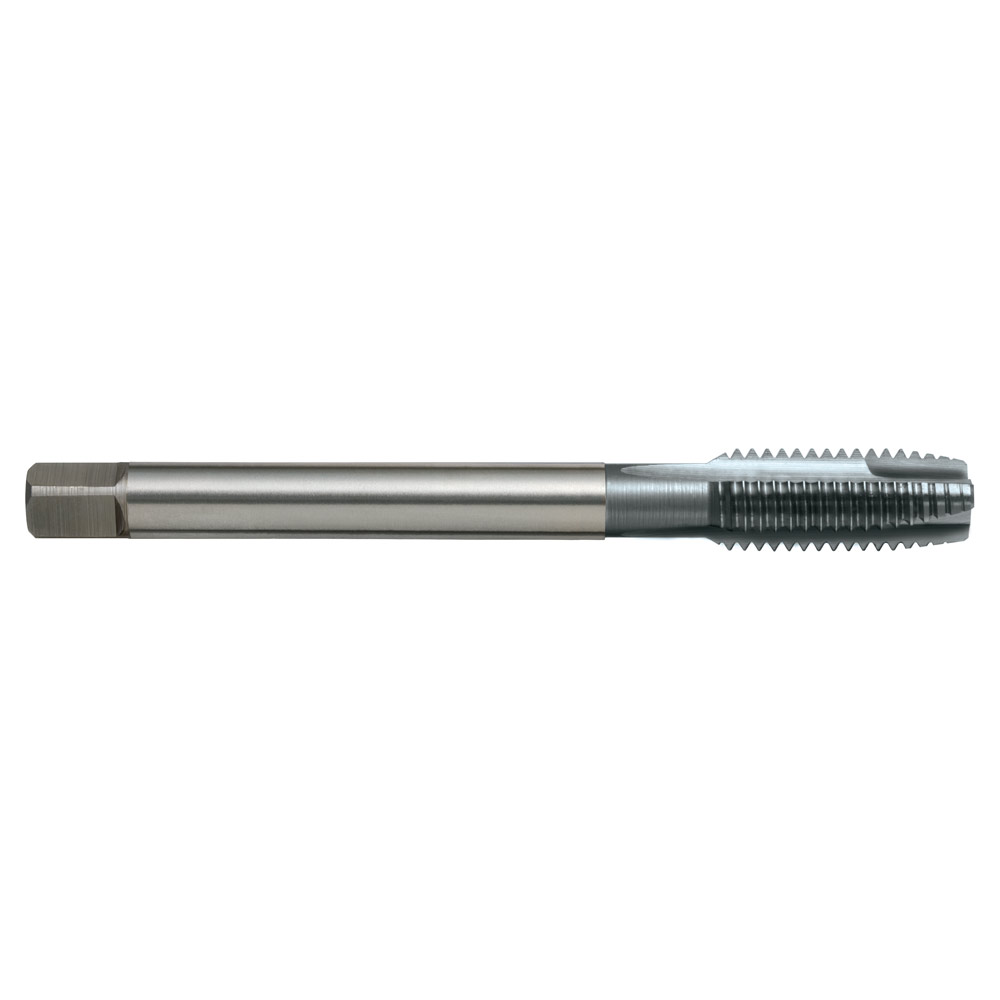

TAP T666 UNC 3/4-10 2BX GUN H DIN2184-1 B PM-Co. TiCN
$186.21inc
GST
Spiral Point (Gun) Taps – H
- Use in harder short chipping materials up to 45 HRc
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
