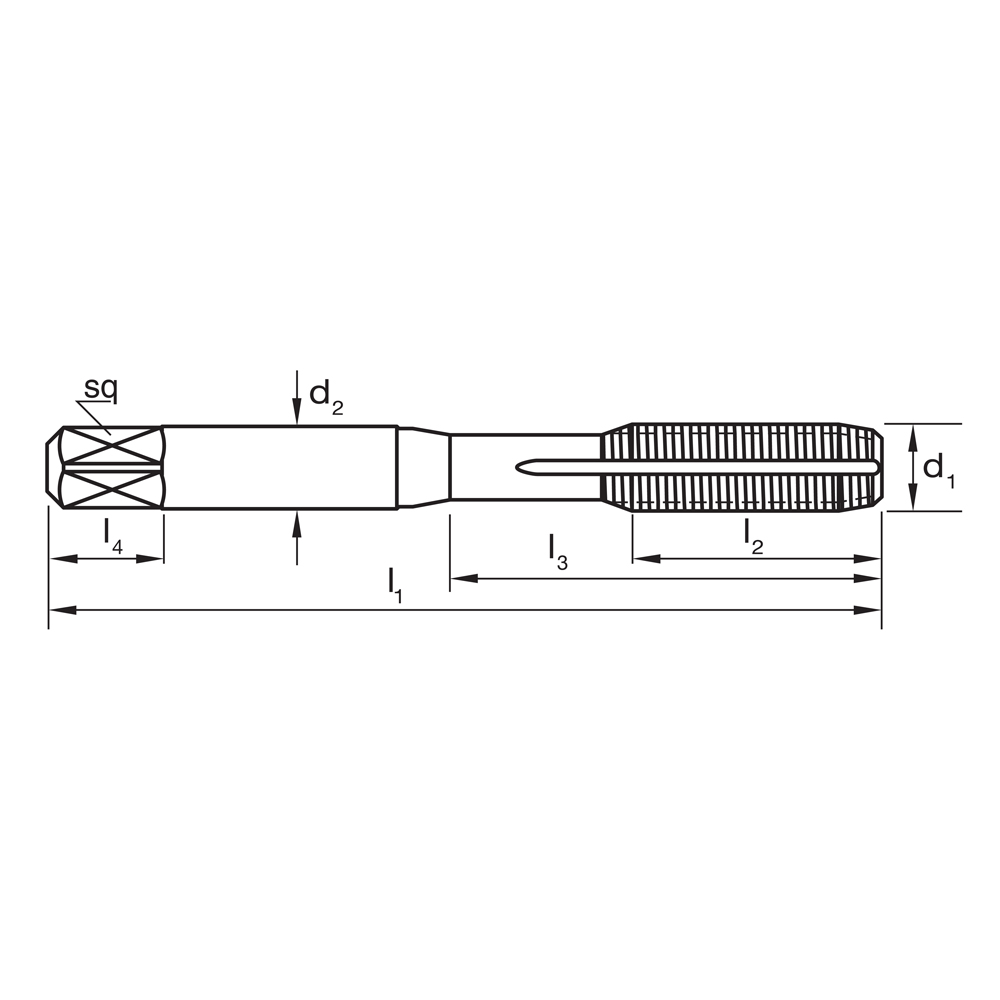

| Technical Details | |
|---|---|
| l2 | 17 |
| d1 | 5/32 |
| Drill Ø | 3.6 |
| Finish | Brt |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 1.5xD |
| l1 | 53 |
| d2 | 4 |
| sq | 3.15 |
| Thread Form | BSW |
| TPI | 32 |
| Type | Fluteless - Single Coolant Groove |

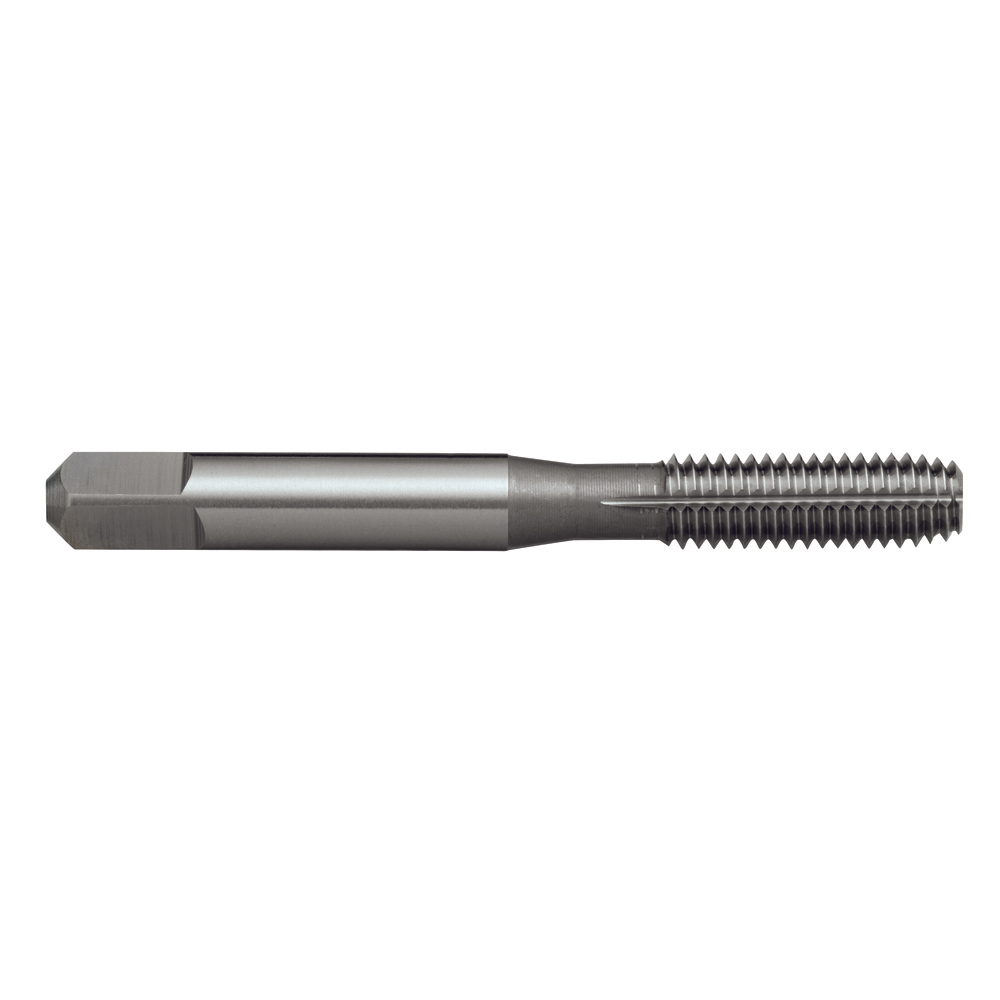

TAP T463 BSW 5/32-32 Z3 FORMING ISO529 Bott HSSE
$88.64inc
GST
Thread Forming Taps – BSW – Short
- For cold forming of threads in materials with good flow characteristics
- Through or blind holes
- Depths up to approx. 1.5 x d1
- TiN for longer tool life
View all: HSS Taps - Machine - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
