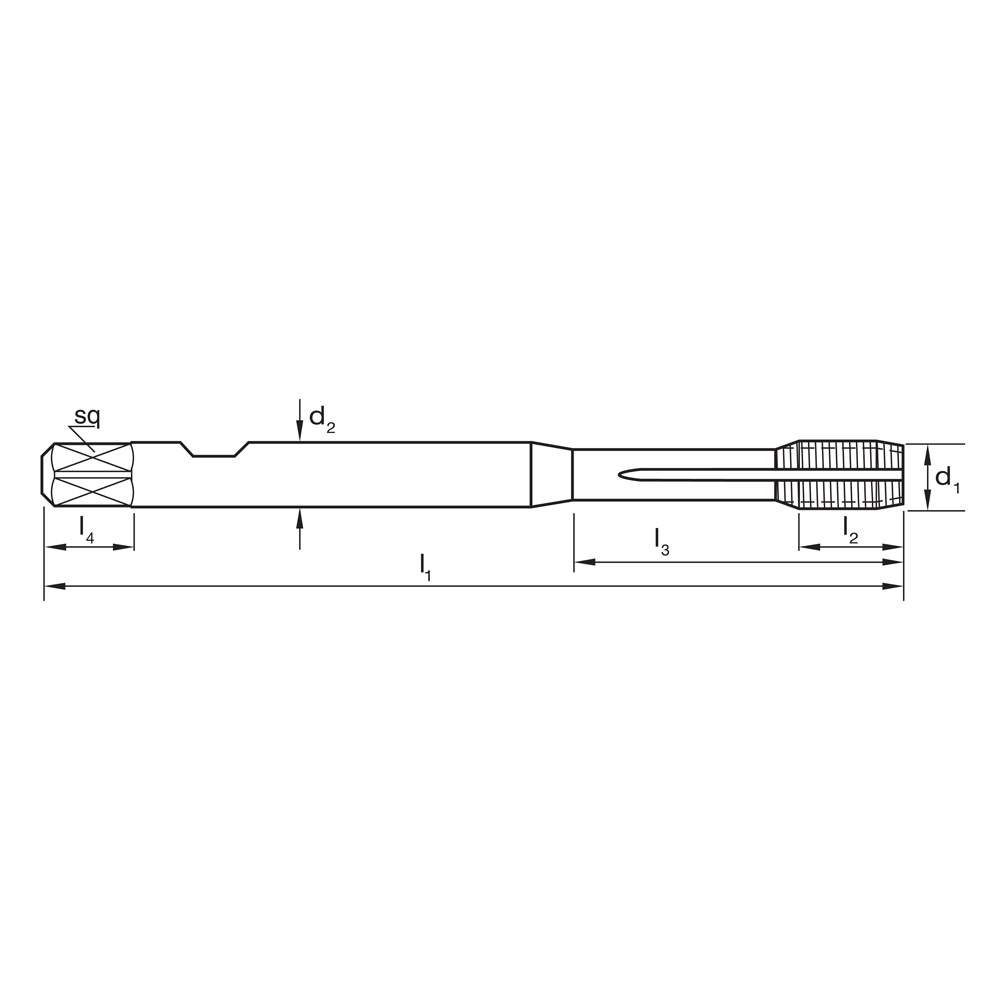

| Technical Details | |
|---|---|
| d1 | M14 |
| d2 | 14 |
| Drill Ø | 13.1 |
| Finish | TiN |
| l1 | 110 |
| l2 | 20 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 2xD |
| Pitch | 2 |
| sq | 11 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

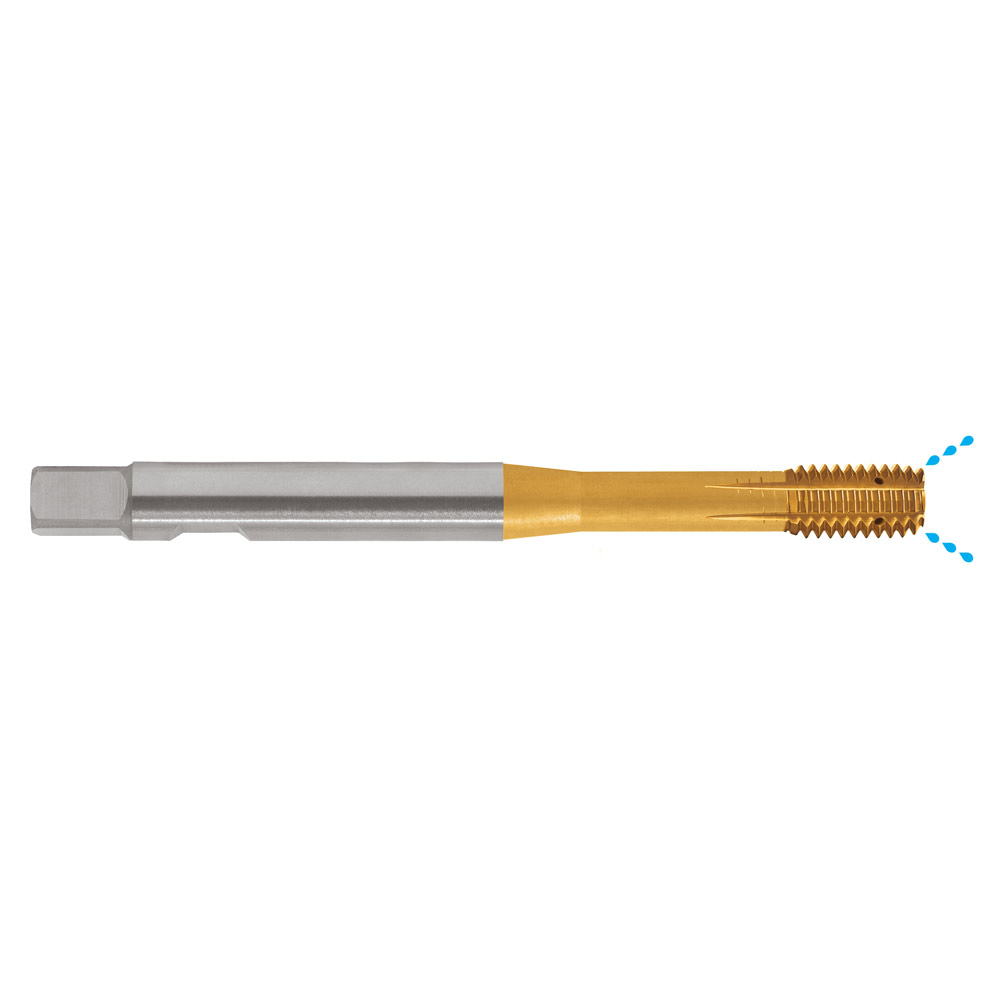

TAP T383 M 14 x 2 6HX FORMING IK D1835-B C PM-V3 TiN SYNCHRO
$414.17inc
GST
Thread Forming Taps – Synchro – IK
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
