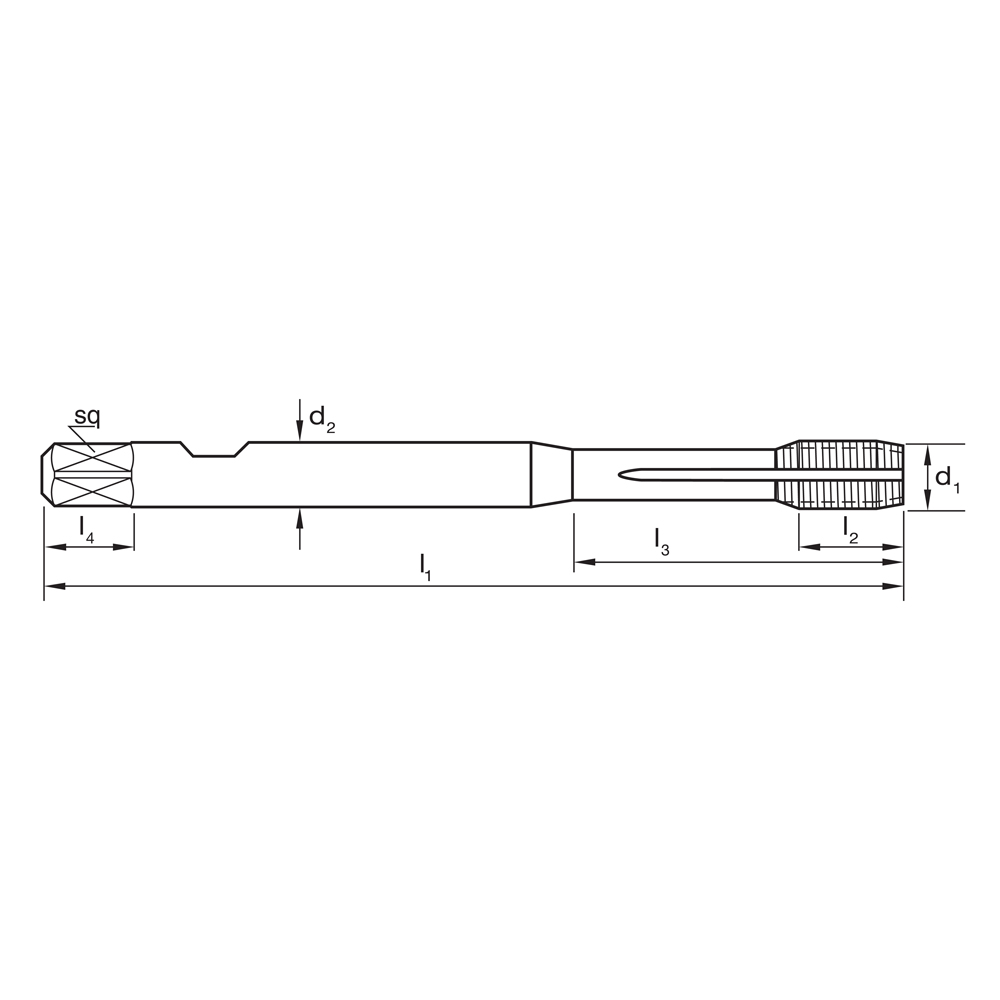

| Technical Details | |
|---|---|
| d1 | M18 |
| d2 | 16 |
| Drill Ø | 16.9 |
| Finish | TiN |
| l1 | 125 |
| l2 | 25 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 2xD |
| Pitch | 2.5 |
| sq | 12 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

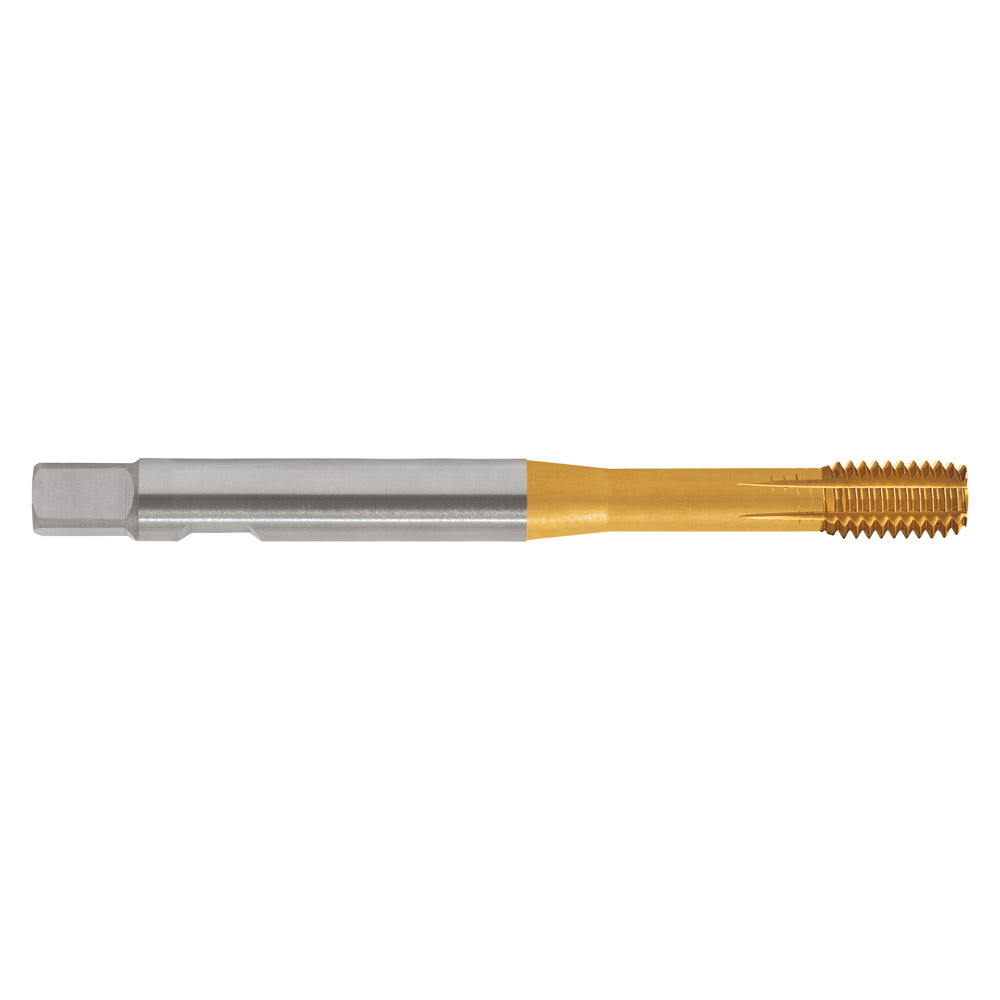

TAP T381 M 18 x 2.5 6HX FORMING D1835-B C PM-V3 TiN SYNCHRO
$320.25inc
GST
Thread Forming Taps – Synchro
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
View all: High Performance Taps - Forming
