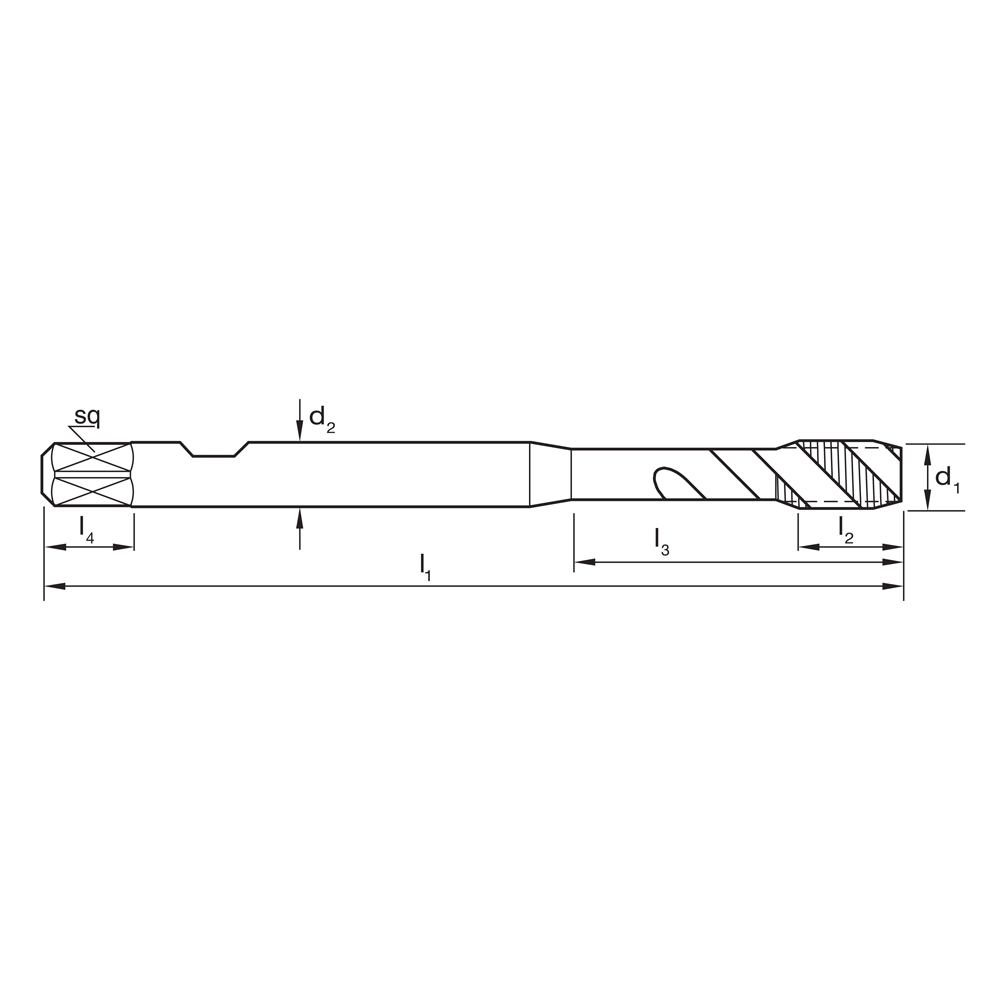

| Technical Details | |
|---|---|
| d1 | M12 |
| d2 | 12 |
| Drill Ø | 10.3 |
| Finish | CrN |
| Helix Angle | R45 |
| l1 | 110 |
| l2 | 18 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 2xD |
| Pitch | 1.75 |
| sq | 9 |
| Thread Form | M |
| Type | Spiral Flute |

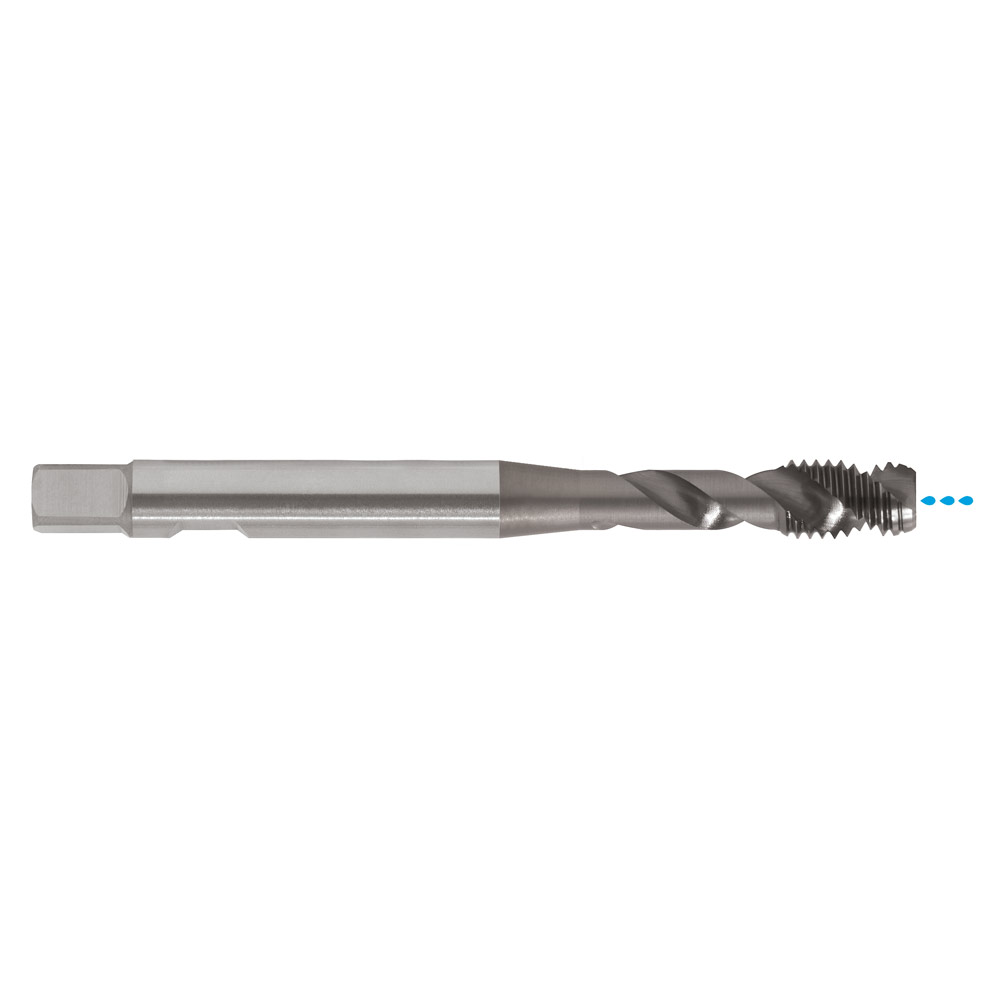

TAP T371 M 12 x 1.75 6HX SPL R45 IK D1835-B C PM-V3 CrN SYNC
$294.06inc
GST
Spiral Flute Taps – Synchro – R45 AI – IK
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed for aluminium & aluminium alloys
- Blind holes up to 2 x d1
- h6 endmill shank
View all: High Performance Taps - Spiral Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
