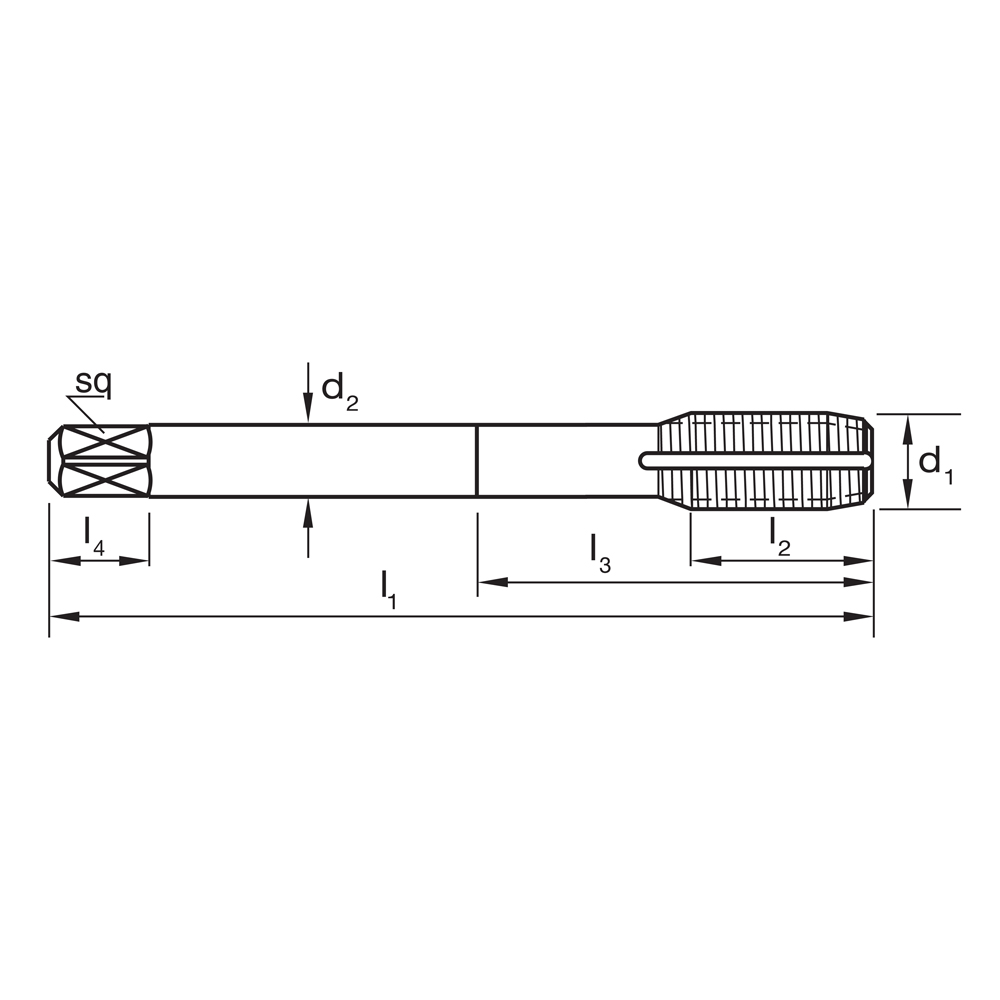

| Technical Details | |
|---|---|
| d1 | G 1/8 |
| d2 | 7 |
| Drill Ø | 9.25 |
| Finish | TiCN |
| l1 | 90 |
| l2 | 20 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 5.5 |
| Thread Form | G (BSPF) |
| TPI | 28 |
| Type | Fluteless - Multi Coolant Groove |

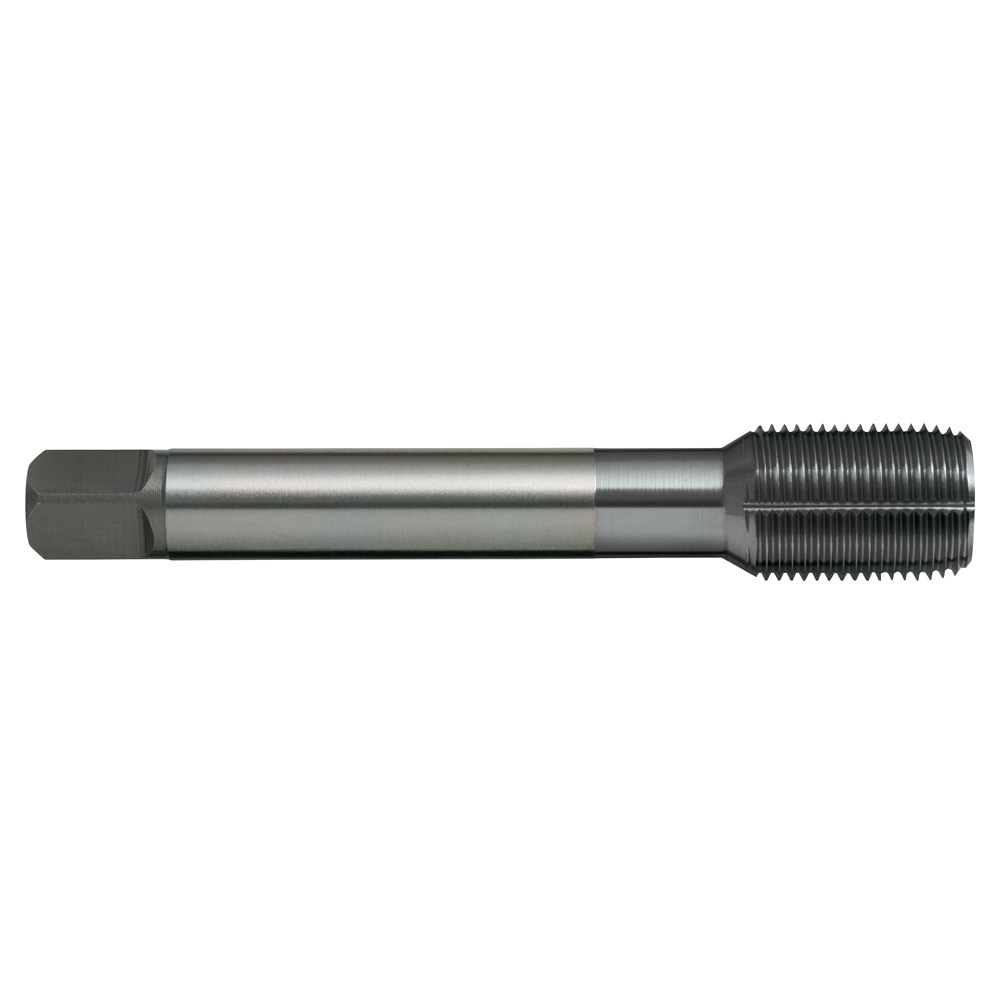

TAP T363 G 1/8-28 (BSPF) FORMING DIN5156 C HSSE TiCN
$140.61inc
GST
Thread Forming Taps – Multi Coolant Groove – N
- For cold forming of threads in materials with good flow characteristics Brt - For non-ferrous materials
TiCN - Suitable for abrasive and difficult materials - Through or blind holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
View all: High Performance Taps - Forming
