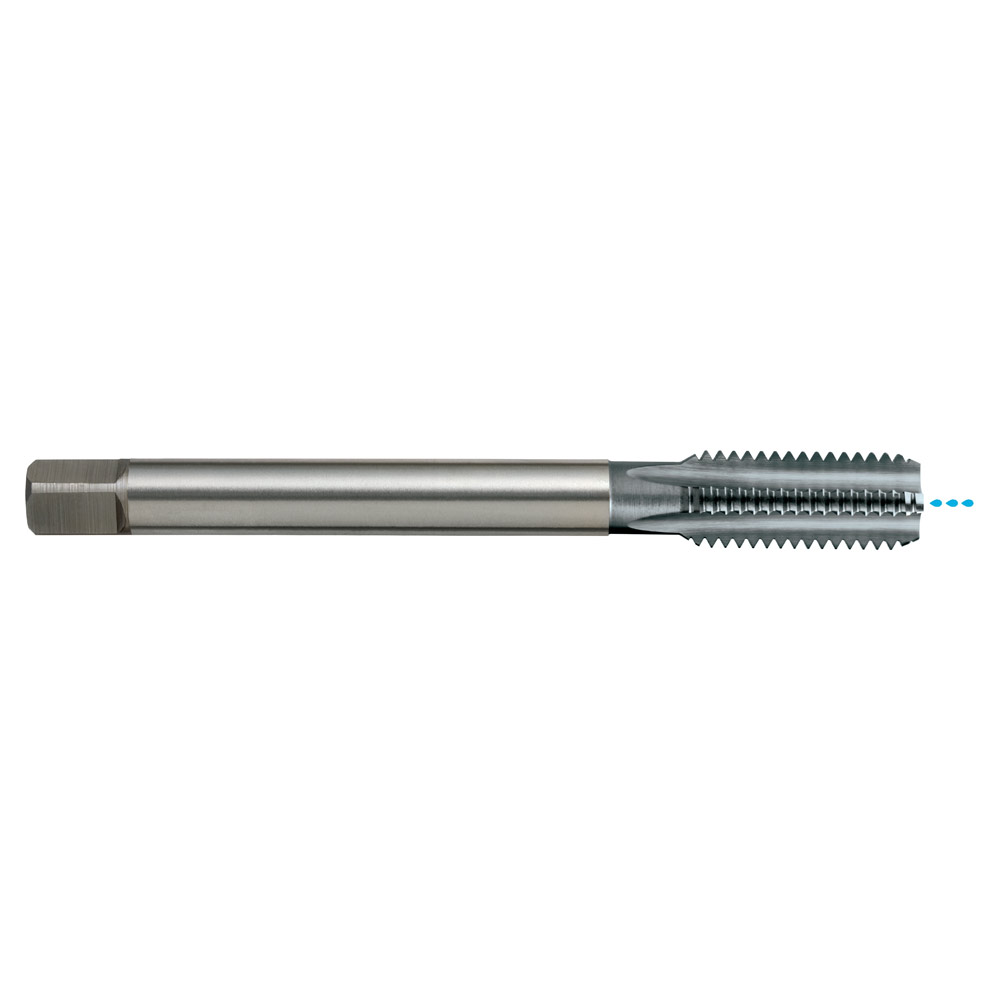

TAP T358 M 20 x 2.5 6HX STRAIGHT DC-IK DIN376 E PM-Co. TICN

SKU: SUTT3582000S/C: T3582000Barcode: 9311963508542
Usually ships in 1 daySubject to availability

$567.96inc
GST

Price Match

Straight Flute Taps – DC – IK

  • For production tapping in die cast materials
  • PM-HSS Co for superior tool life
  • Form E for maximum thread depth in blind holes
  • Depths up to 1.5 x d1
More Info
View all:

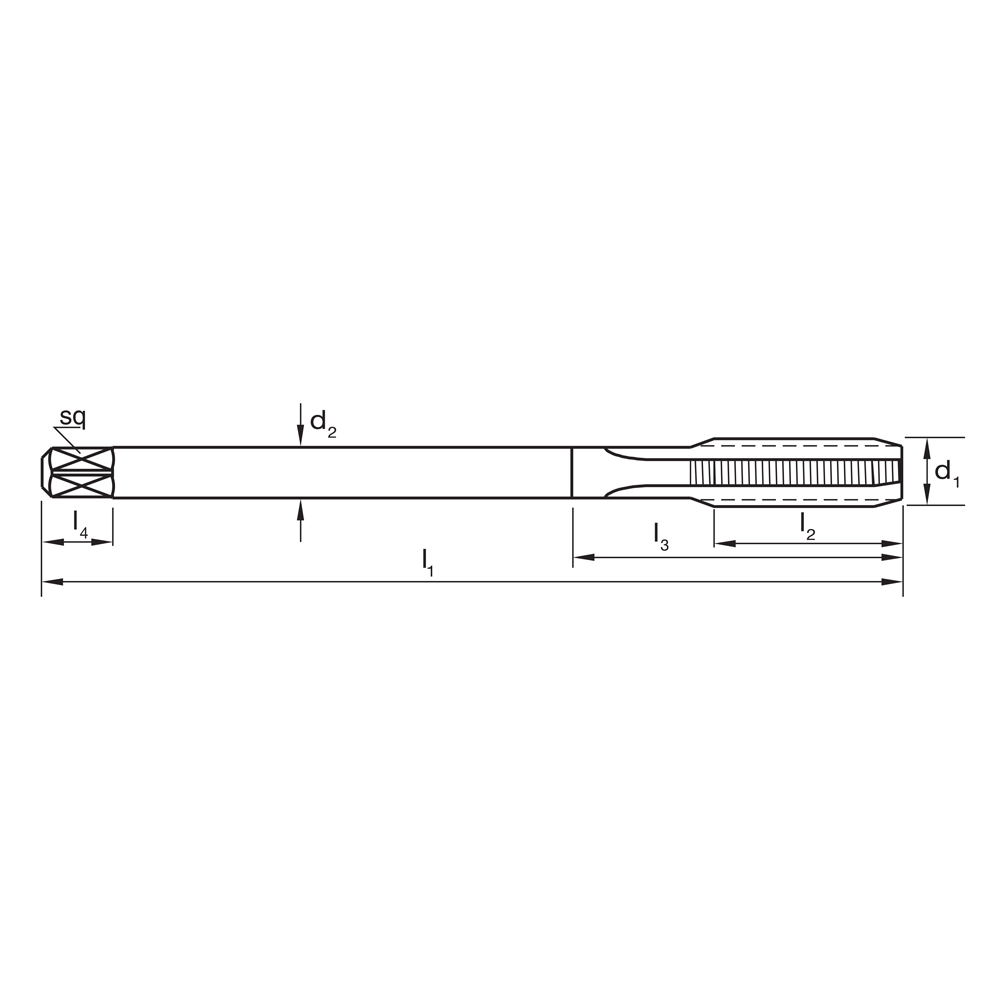

Technical Details
d1M20
d216
Drill Ø17.5
FinishTiCN
l1140
l234
LeadForm E / 1.5 x P
MaterialPM-HSS Co
Max Cut Depth1.5xD
Pitch2.5
sq12
Thread FormM
TypeStraight Flute

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
