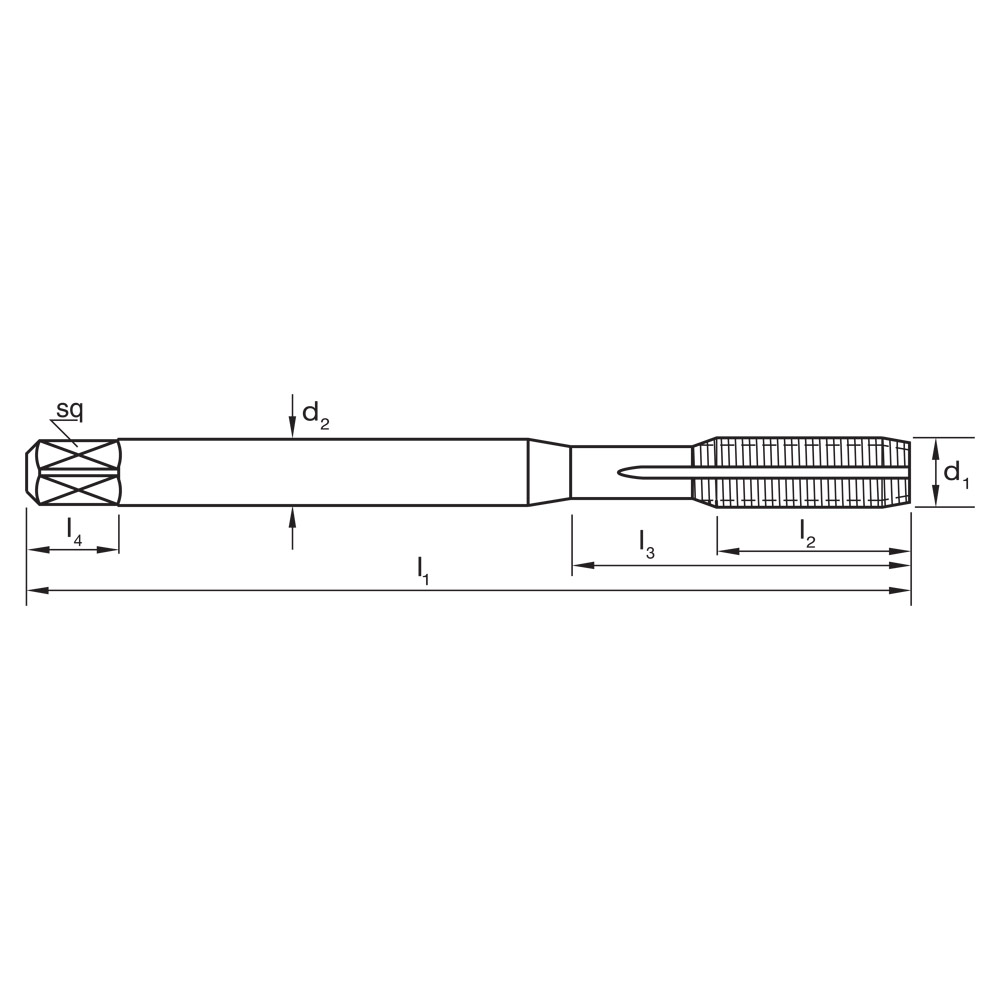

| Technical Details | |
|---|---|
| l2 | 22 |
| d1 | M8 |
| Drill Ø | 7.4 |
| Finish | TiAlN |
| Lead | Form C / 3 x P |
| Material | SPM |
| Max Cut Depth | 3xD |
| l1 | 90 |
| Pitch | 1.25 |
| d2 | 8 |
| sq | 6.2 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

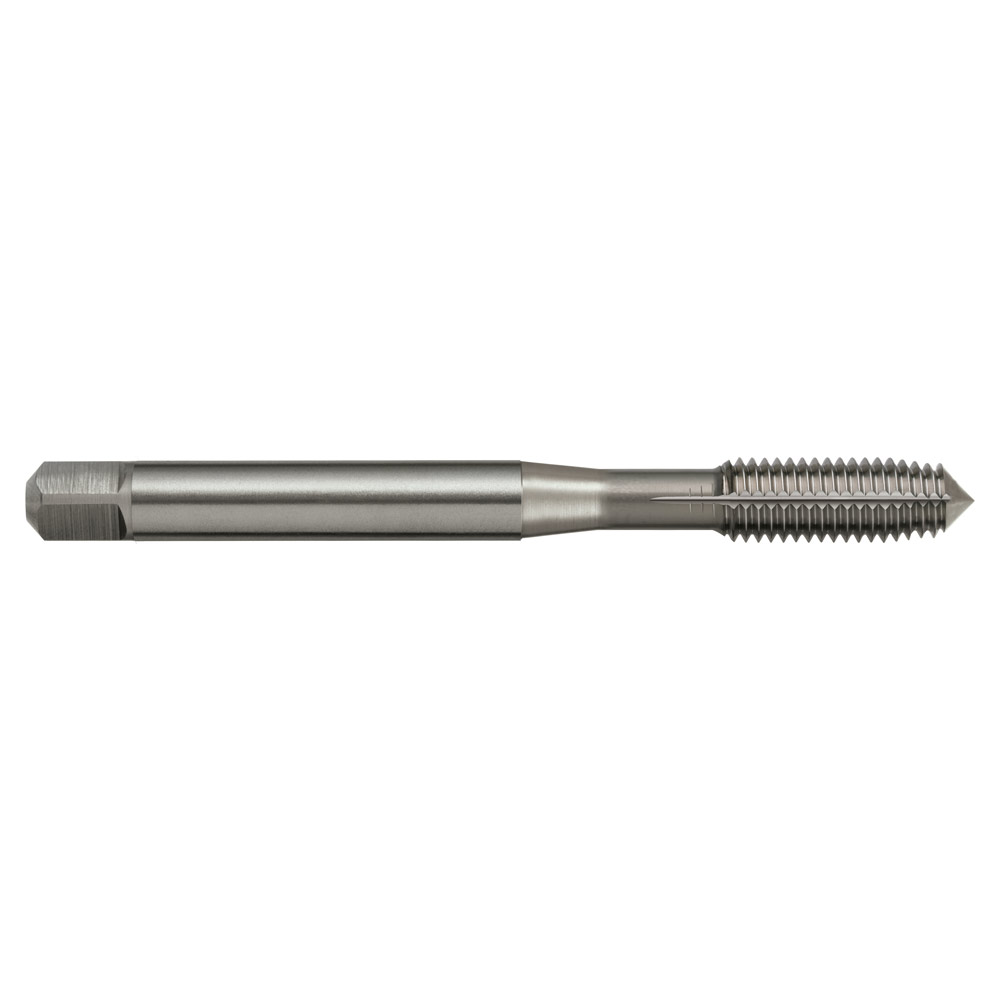

TAP T329 M 8 x 1.25 6HX FORMING Cu DIN2174 C HSSE CrN
$95.85inc
GST
Thread Forming Taps – Multi Coolant Groove – CU
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
