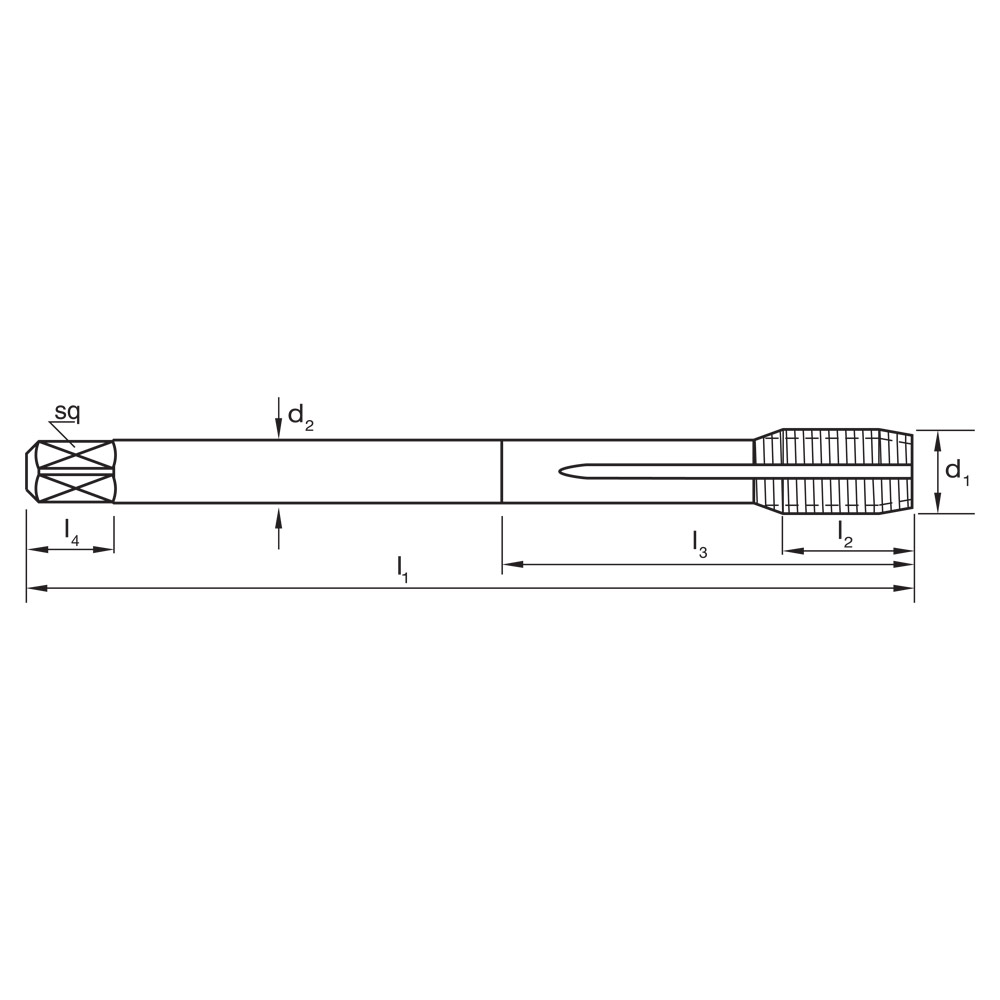

| Technical Details | |
|---|---|
| d1 | M14 |
| d2 | 11 |
| Drill Ø | 13.1 |
| Finish | TiAlN |
| l1 | 110 |
| l2 | 25 |
| Lead | Form C / 3 x P |
| Material | SPM |
| Max Cut Depth | 3xD |
| Pitch | 2 |
| sq | 9 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |
TAP T328 M 14 x 2 6HX FORMING UNI-IK DIN2174 C SPM TiAlN
$522.47inc
GST
Thread Forming Taps – Multi Coolant Groove – UNI IK
- SPM for superior performance
- Application specific geometry
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
