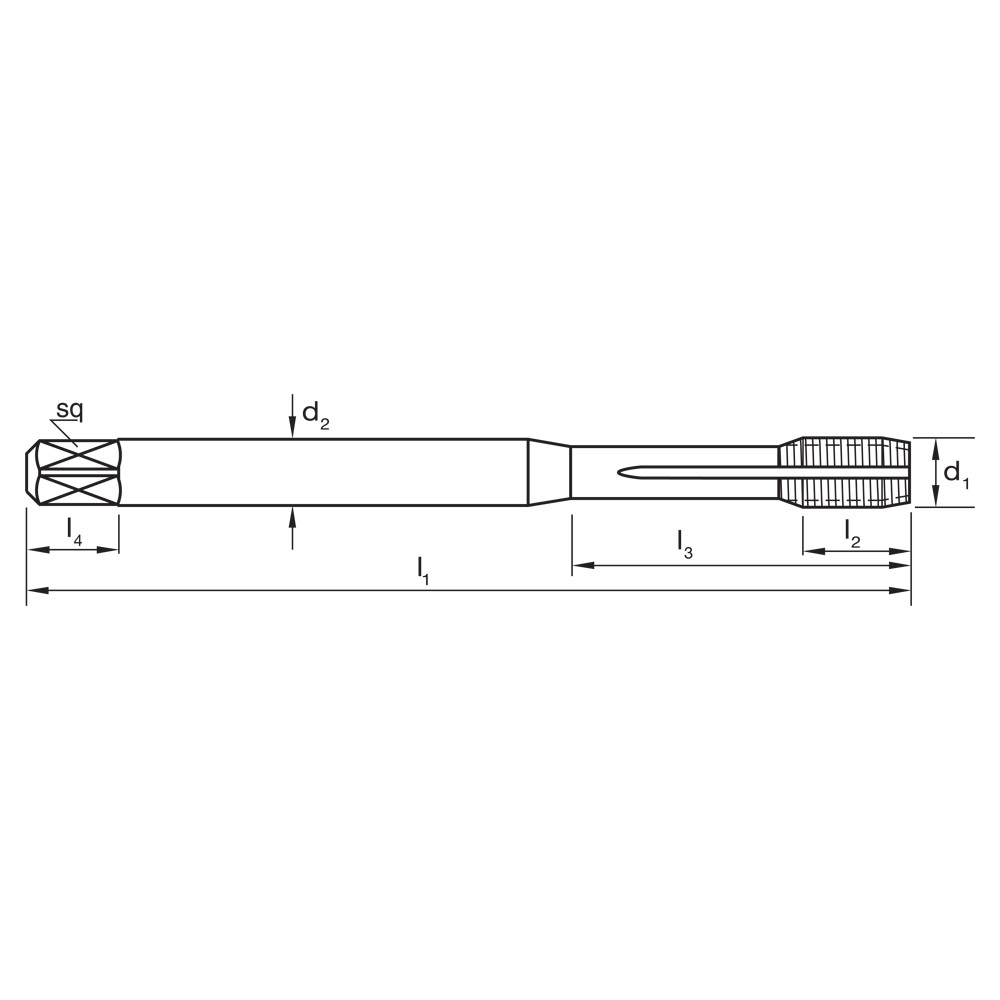

| Technical Details | |
|---|---|
| d1 | M10 |
| d2 | 10 |
| Drill Ø | 9.3 |
| Finish | TiAlN |
| l1 | 100 |
| l2 | 20 |
| Lead | Form C / 3 x P |
| Material | SPM |
| Max Cut Depth | 3xD |
| Pitch | 1.5 |
| sq | 8 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

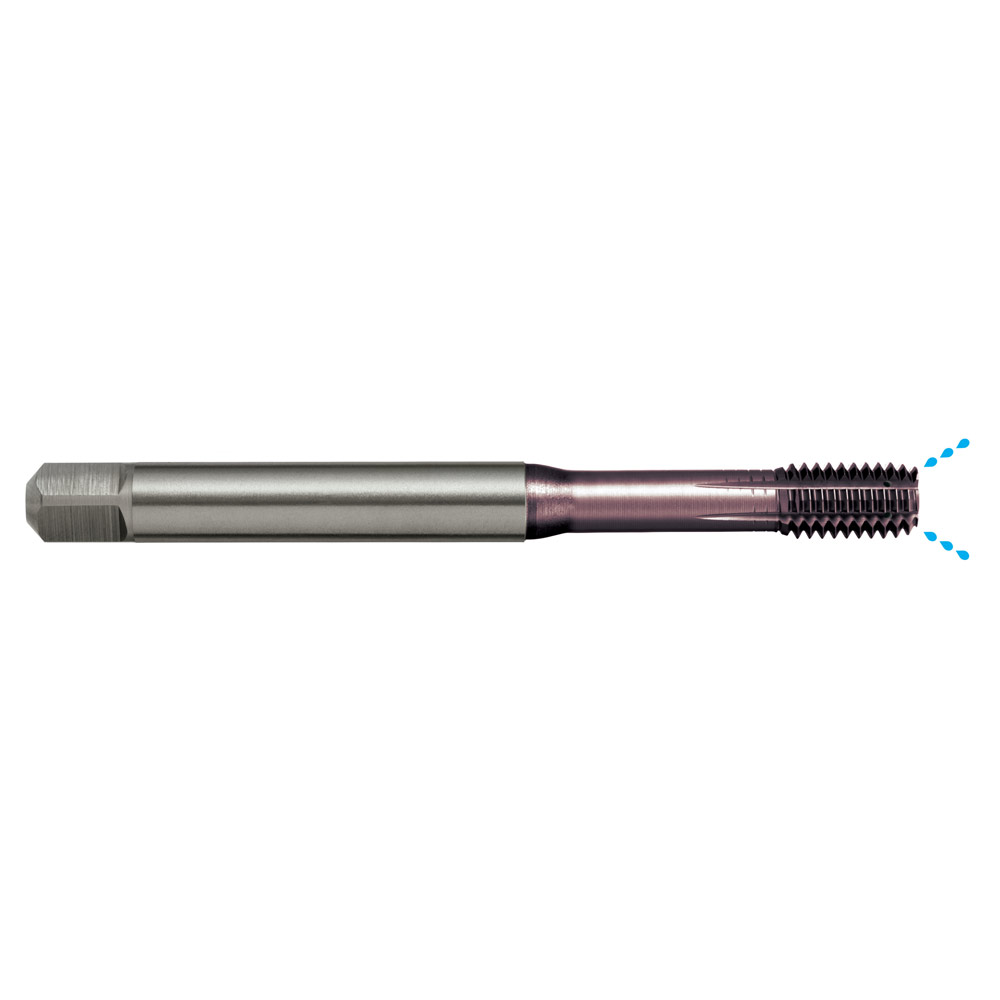

TAP T327 M 10 x 1.5 6HX FORMING UNI-IK DIN2174 C SPM TiAlN
$346.31inc
GST
Thread Forming Taps – Multi Coolant Groove – UNI IK
- SPM for superior performance
- Application specific geometry
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
