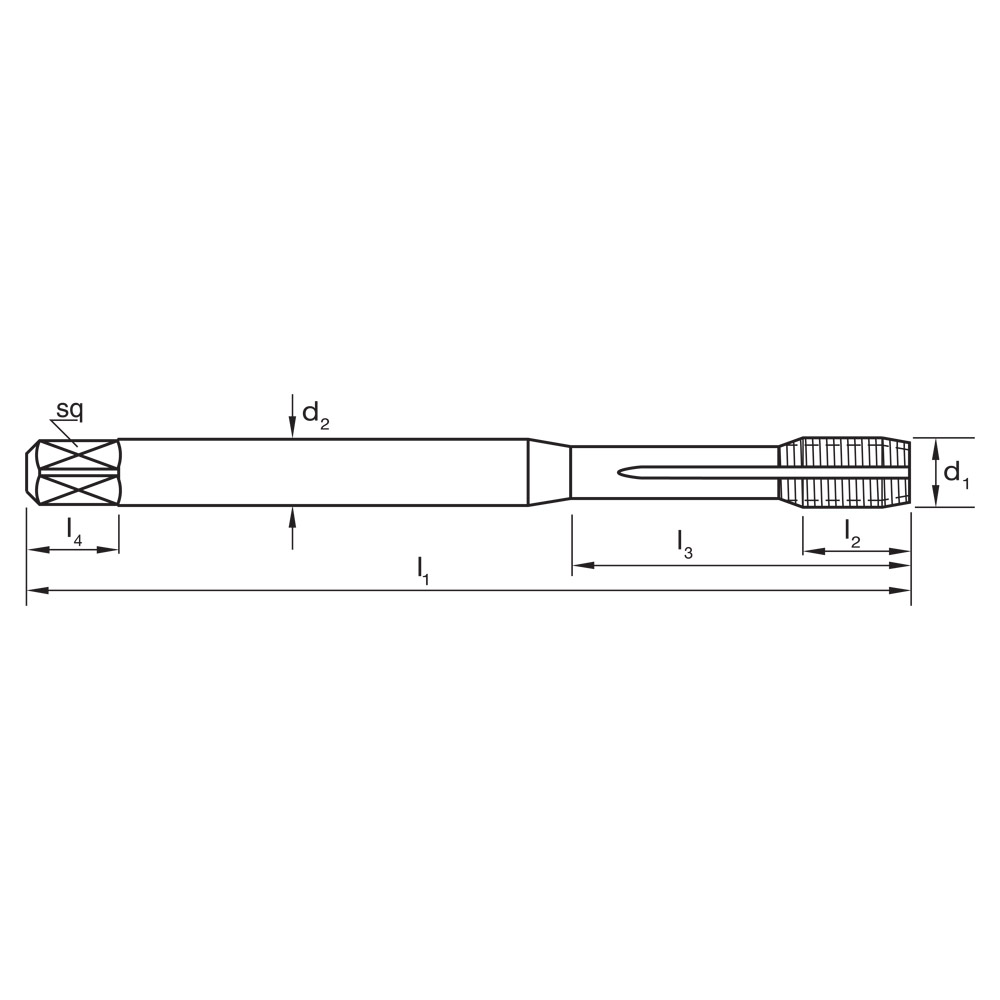

| Technical Details | |
|---|---|
| d1 | M8 |
| d2 | 8 |
| Drill Ø | 7.4 |
| Finish | TiAlN |
| l1 | 90 |
| l2 | 18 |
| Lead | Form C / 3 x P |
| Material | SPM |
| Max Cut Depth | 3xD |
| Pitch | 1.25 |
| sq | 6.2 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

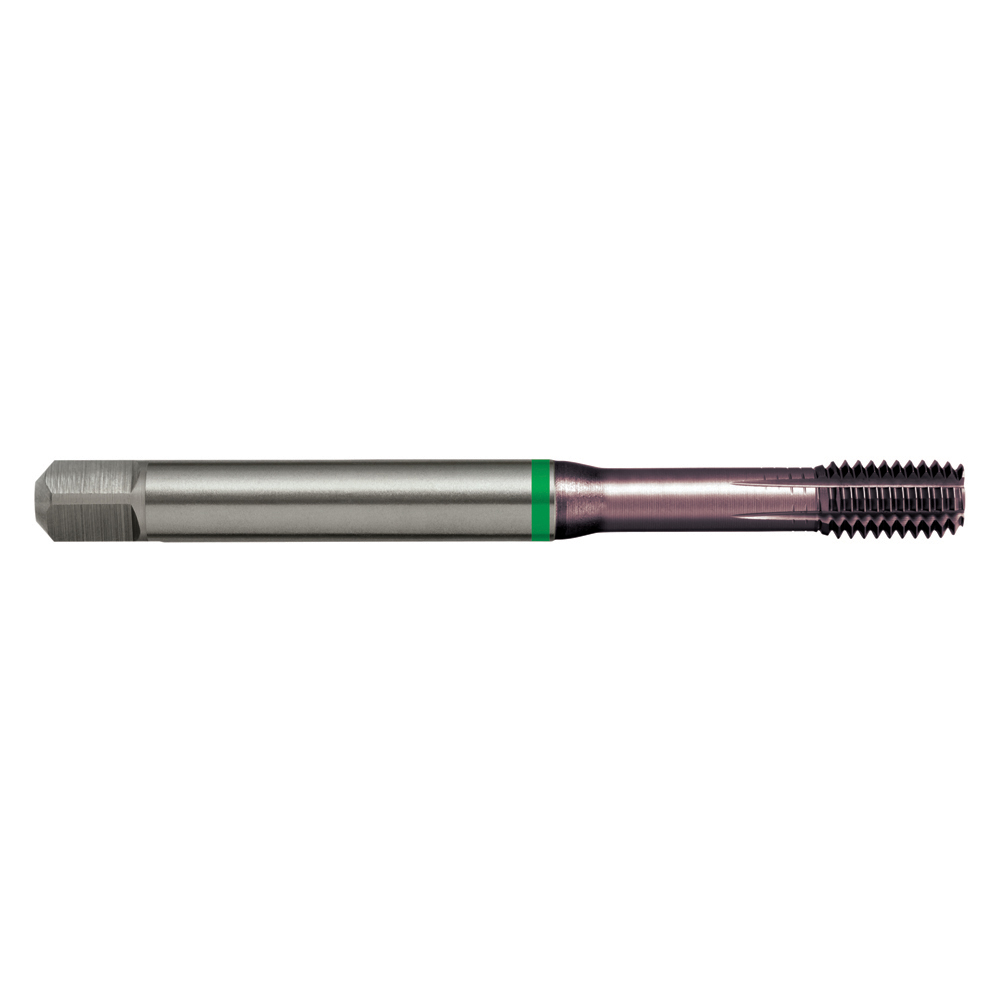

TAP T325 M 8 x 1.25 6HX FORMING UNI DIN2174 C SPM TiAlN
$103.70inc
GST
Thread Forming Taps – Multi Coolant Groove – UNI
- SPM for superior performance
- Application specific geometry
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
