| Technical Details | |
|---|---|
| d1 | M3.5 |
| d2 | 4 |
| Drill Ø | 3.2 |
| Finish | TiCN |
| l1 | 56 |
| l2 | 13 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 0.6 |
| sq | 3 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

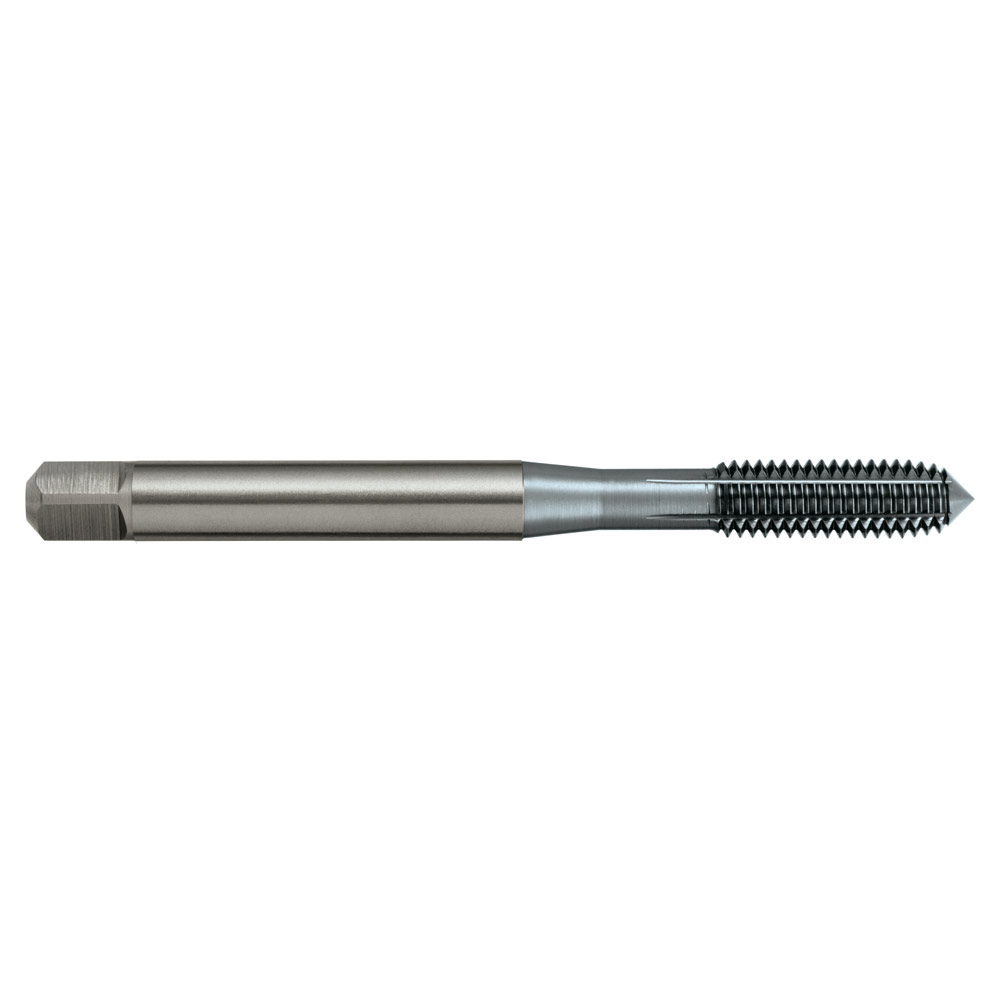

TAP T323 M 3.5 x 0.6 6GX FORMING N DIN2174 C HSSE TiCN
$66.37inc
GST
Thread Forming Taps – Multi Coolant Groove – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
