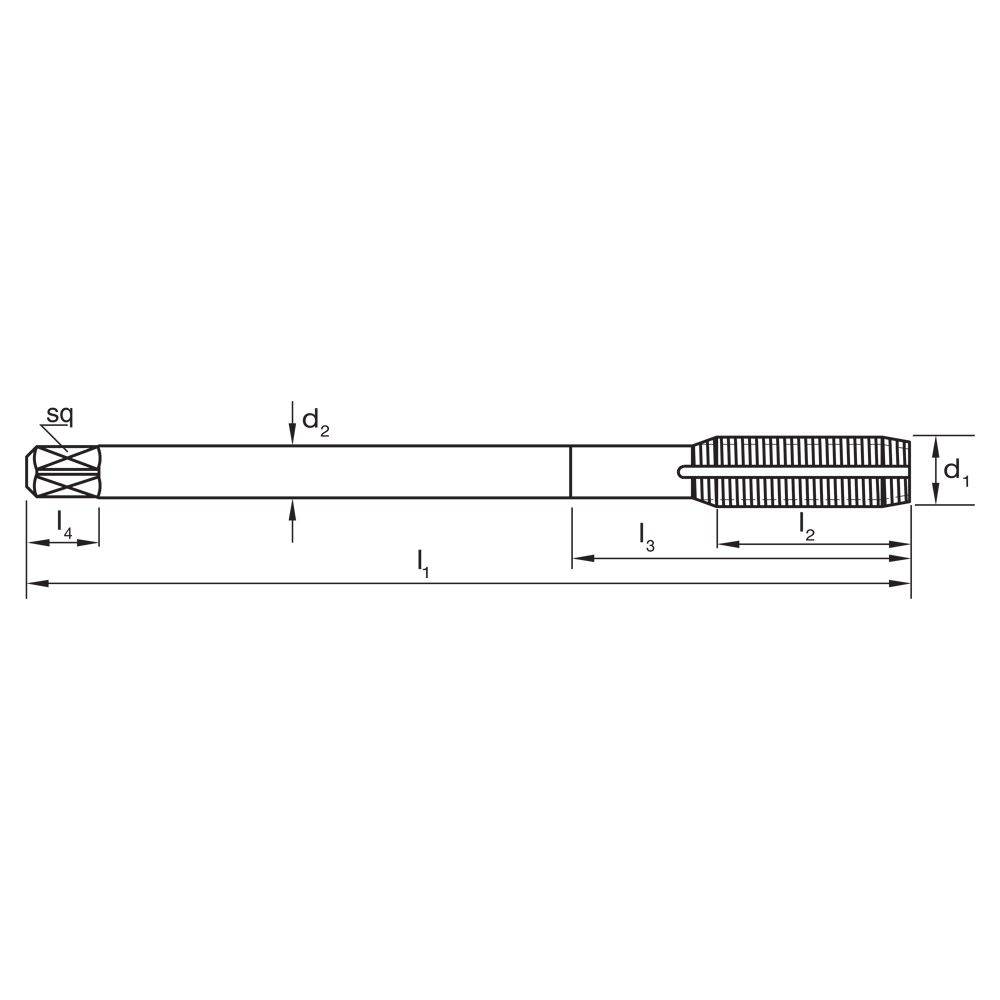

| Technical Details | |
|---|---|
| d1 | M20 |
| d2 | 16 |
| Drill Ø | 18.9 |
| Finish | TiCN |
| l1 | 140 |
| l2 | 34 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 2.5 |
| sq | 12 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

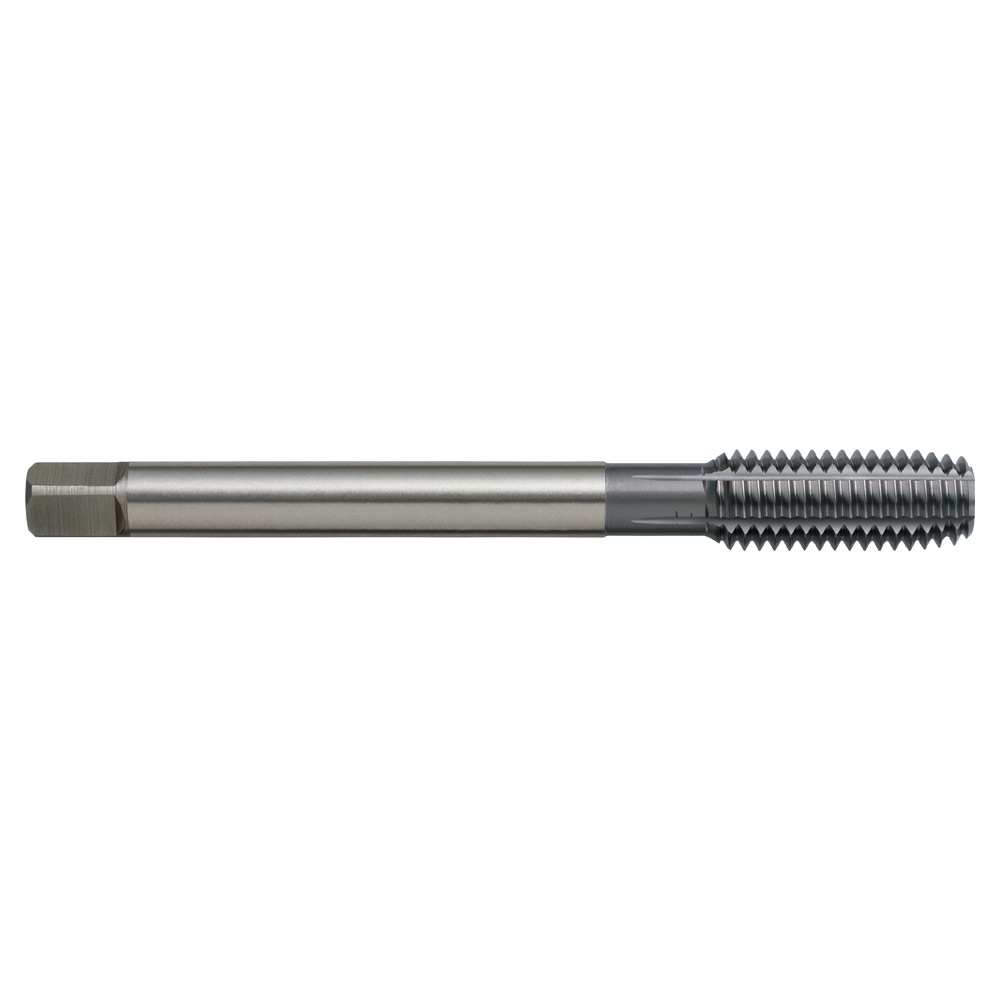

TAP T320 M 20 x 2.5 6HX FORMING N DIN2174 C HSSE TiCN
$279.84inc
GST
Thread Forming Taps – Multi Coolant Groove – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
