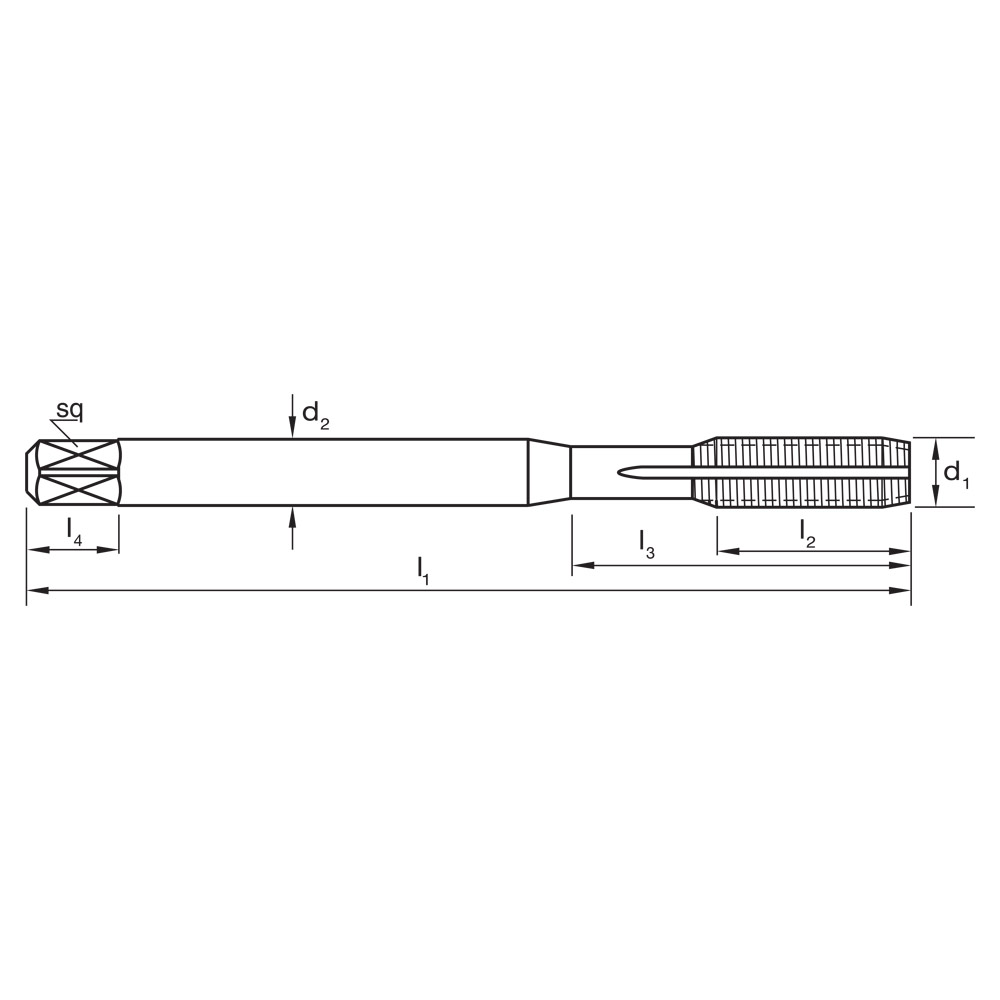

| Technical Details | |
|---|---|
| l2 | 13 |
| d1 | M4 |
| Drill Ø | 3.7 |
| Finish | TiCN |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| l1 | 63 |
| Pitch | 0.7 |
| d2 | 4.5 |
| sq | 3.4 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

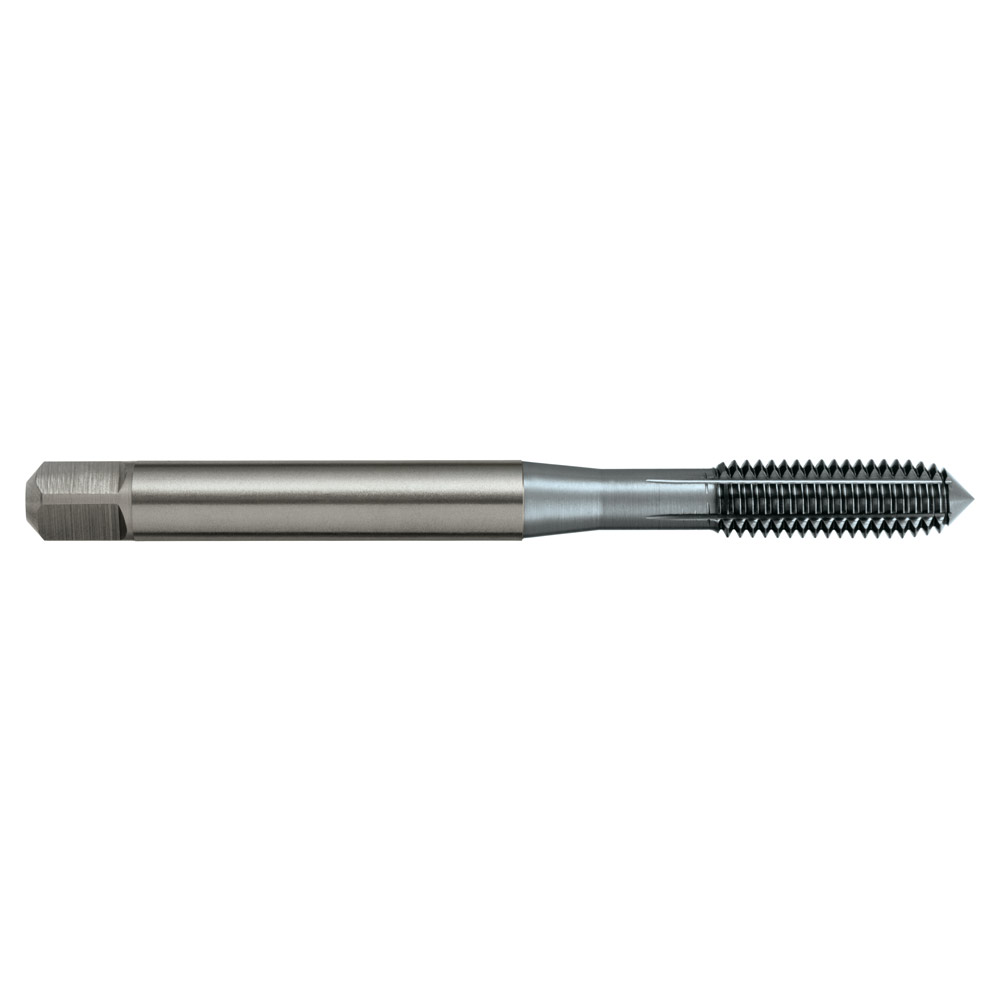

TAP T319 M 4 x 0.7 6HX FORMING N DIN2174 C HSSE TiCN
$61.88inc
GST
Thread Forming Taps – Multi Coolant Groove – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
Related products
-
P/N: HSTM6X1.0TFRLCTITAP T313 M 6 x 1 6HX FORMING N DIN2174 C HSSE TiN
$85.09inc
GST Usually ships in 1 dayAdd to cart -

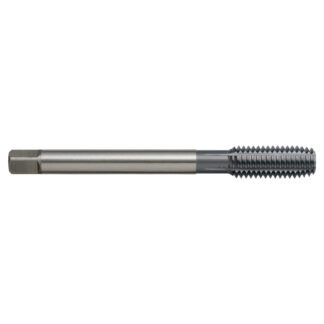

P/N: HSTM12X1.75TFHXCTAP T320 M 12 x 1.75 6HX FORMING N DIN2174 C HSSE TiCN
