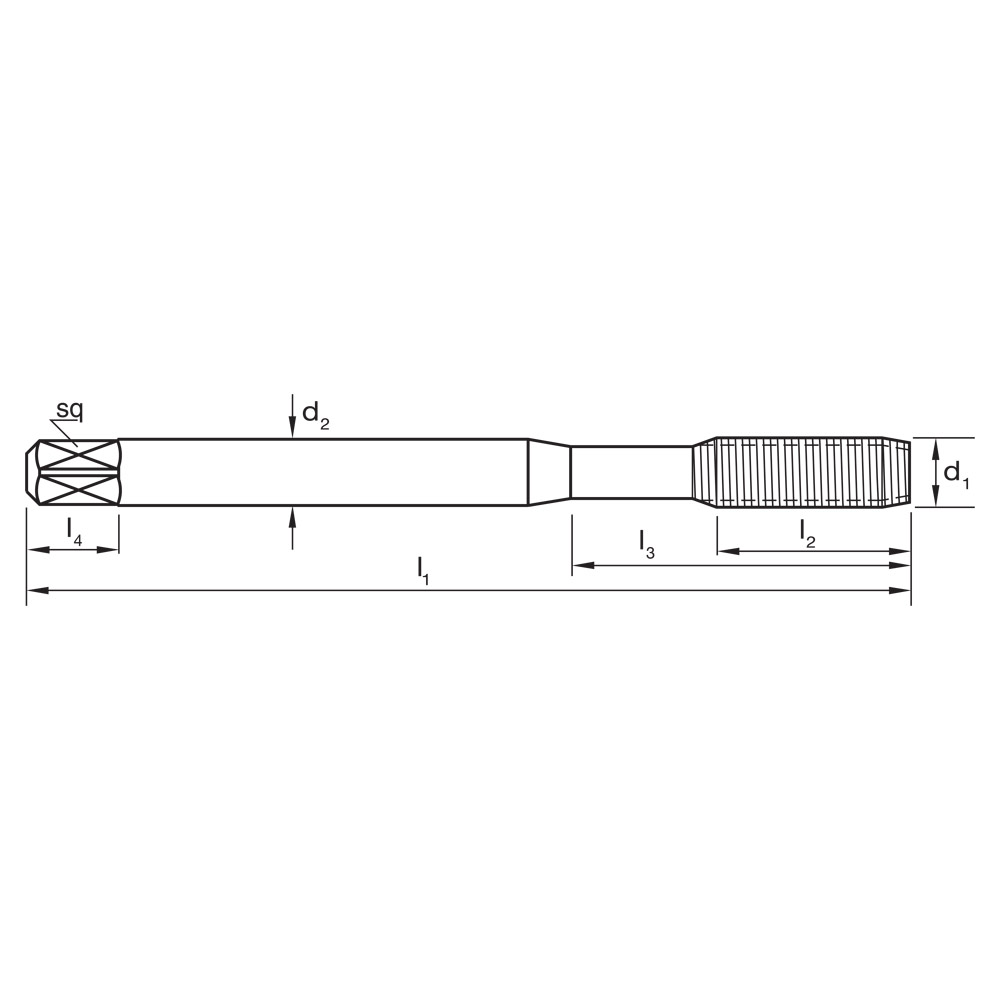

| Technical Details | |
|---|---|
| d1 | M3 |
| d2 | 3.5 |
| Drill Ø | 2.8 |
| Finish | TiN |
| l1 | 56 |
| l2 | 11 |
| Lead | Form D / 4 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 0.5 |
| sq | 2.7 |
| Thread Form | M |
| Type | Fluteless - No Groove |

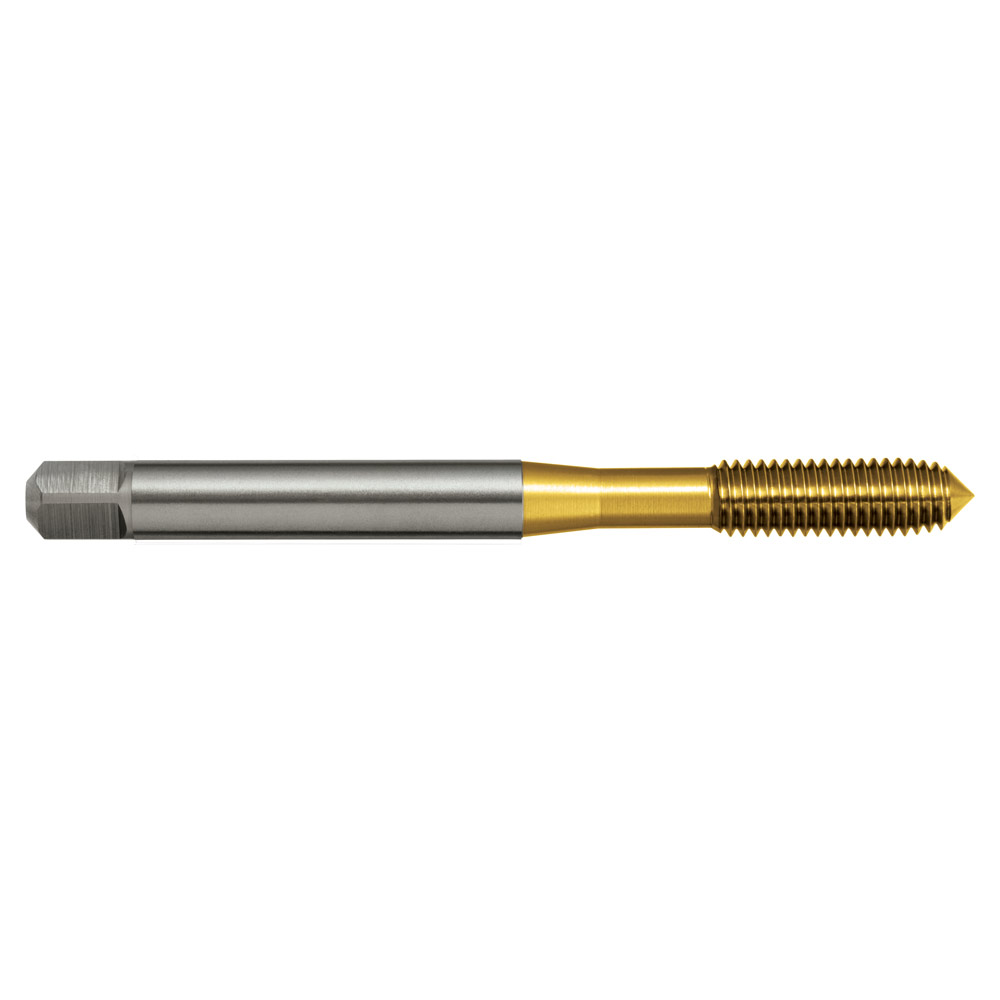

TAP T315 M 3 x 0.5 6HX FORMING N DIN2174 D HSSE TiN
$64.27inc
GST
Thread Forming Taps – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
