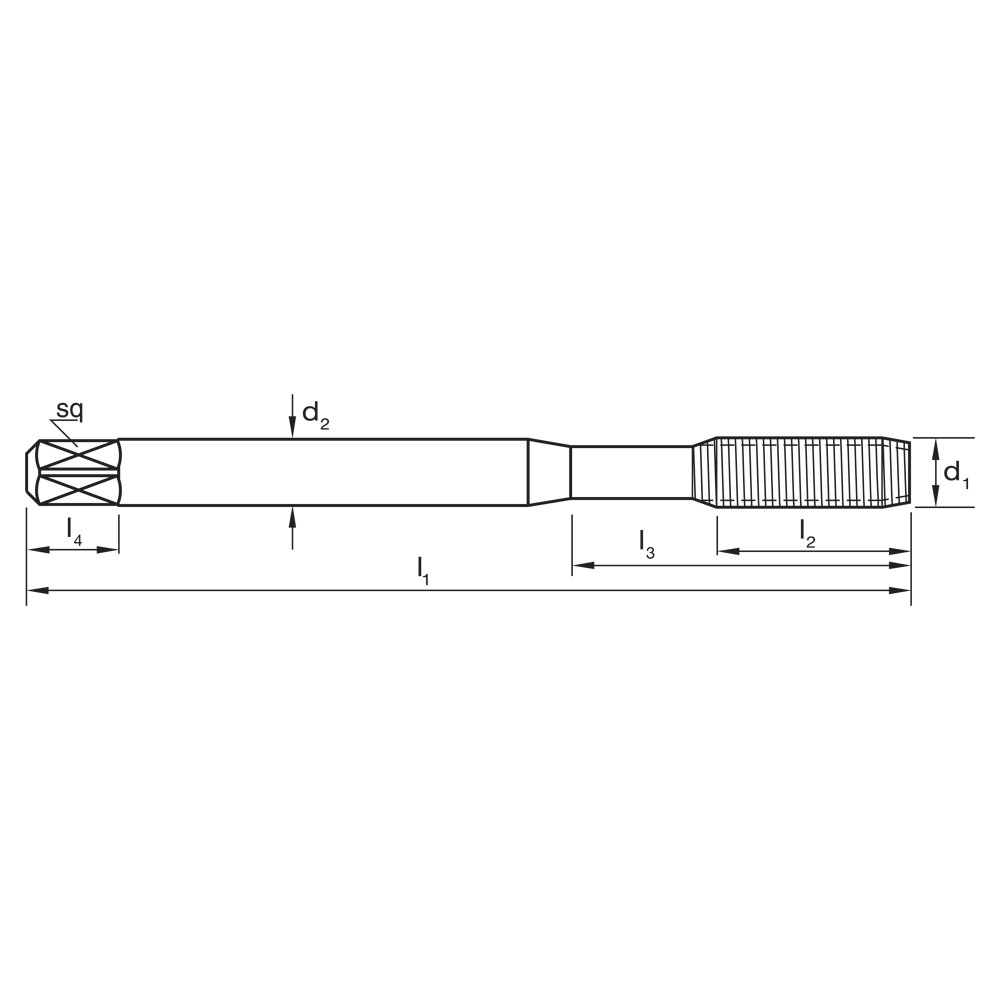

| Technical Details | |
|---|---|
| l2 | 13 |
| d1 | M4 |
| Drill Ø | 3.7 |
| Finish | TiN |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| l1 | 63 |
| Pitch | 0.7 |
| d2 | 4.5 |
| sq | 3.4 |
| Thread Form | M |
| Type | Fluteless - No Groove |
TAP T313 M 4 x 0.7 6HX FORMING N DIN2174 C HSSE TiN
$61.88inc
GST
Thread Forming Taps – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
