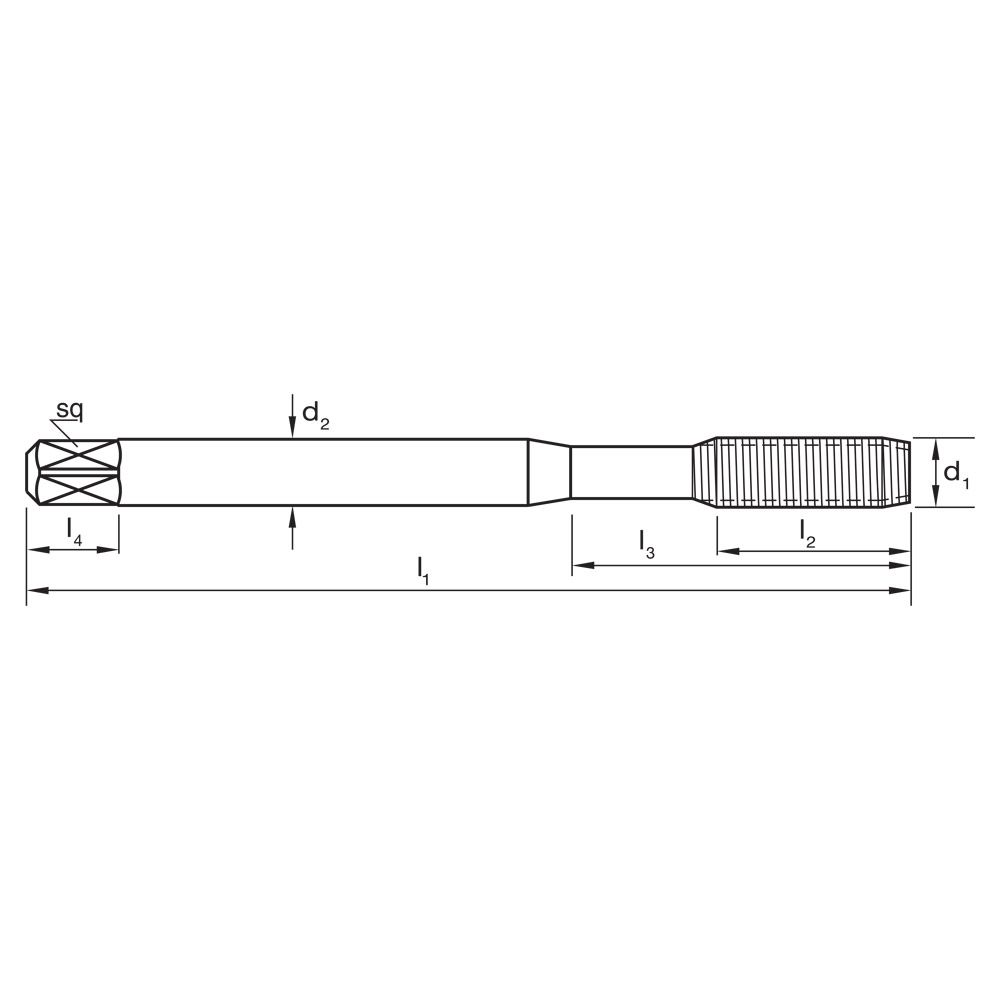

| Technical Details | |
|---|---|
| d1 | M4 |
| d2 | 4.5 |
| Drill Ø | 3.7 |
| Finish | Brt |
| l1 | 63 |
| l2 | 13 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 0.7 |
| sq | 3.4 |
| Thread Form | M |
| Type | Fluteless - No Groove |

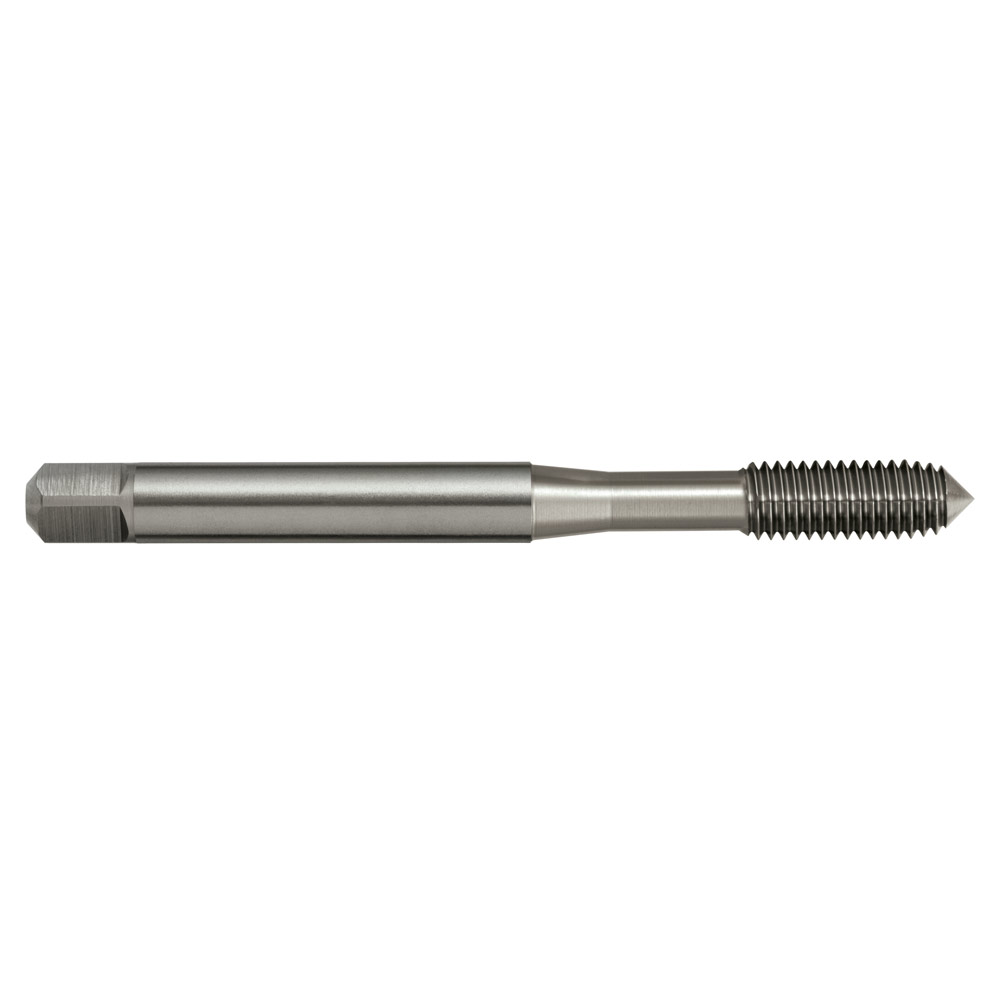

TAP T309 M 4 x 0.7 6HX FORMING N DIN2174 C HSSE
$81.84inc
GST
Thread Forming Taps – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
