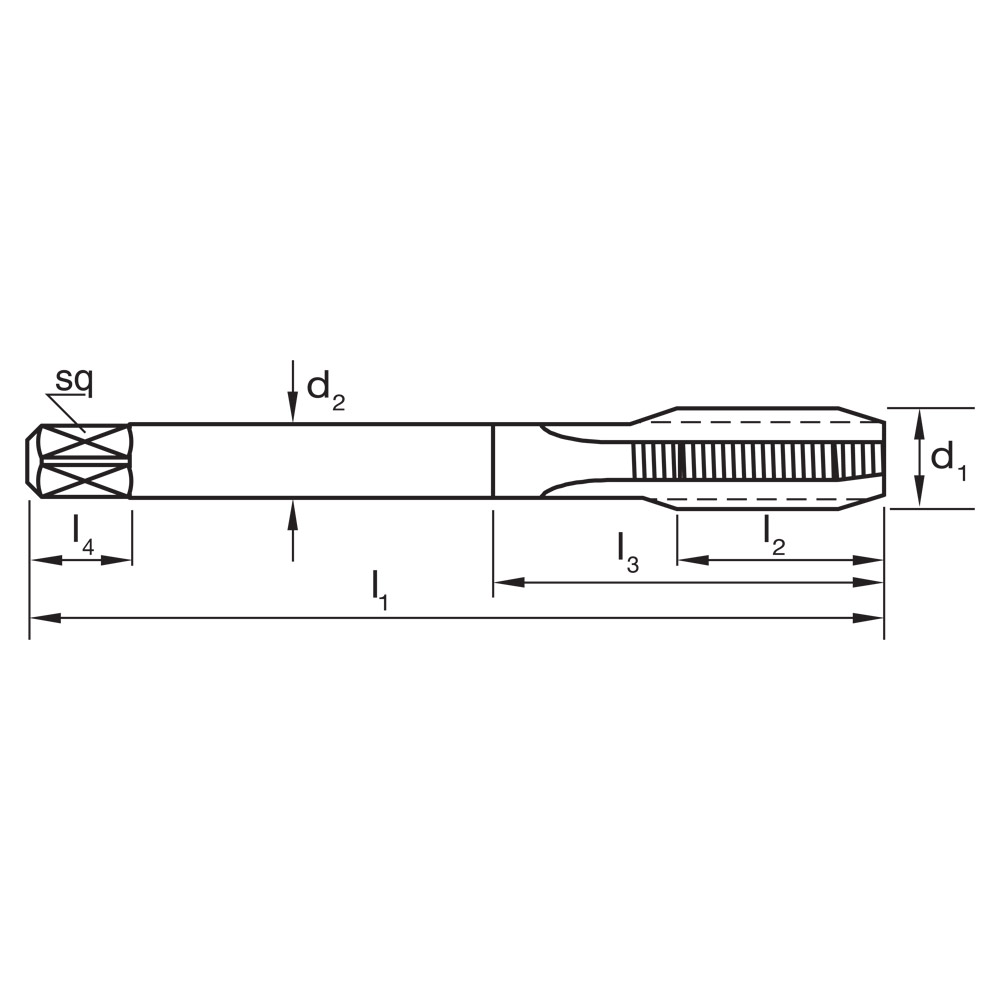

| Technical Details | |
|---|---|
| d1 | G 1/4 |
| d2 | 11 |
| Drill Ø | 11.8 |
| Finish | TiCN |
| l1 | 100 |
| l2 | 22 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 1xD |
| sq | 9 |
| Thread Form | G (BSPF) |
| TPI | 19 |
| Type | Straight Flute |

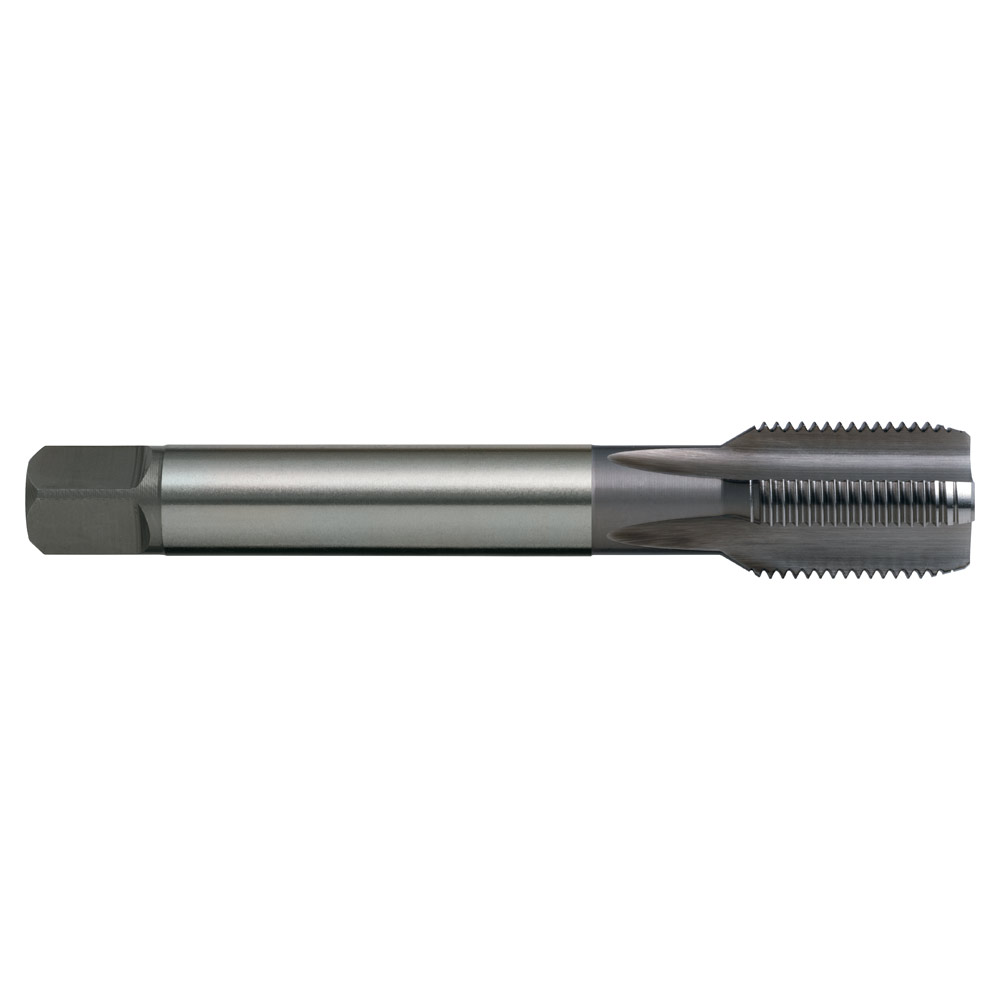

TAP T307 G 1/4-19 (BSPF) STRAIGHT DIN5156 C HSSE TiCN
$168.09inc
GST
Straight Flute Taps – GG
- Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
- Through & blind holes
- Suitable for machine operations
- Depths up to approx. 1 x d1
View all: High Performance Taps - Straight Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
