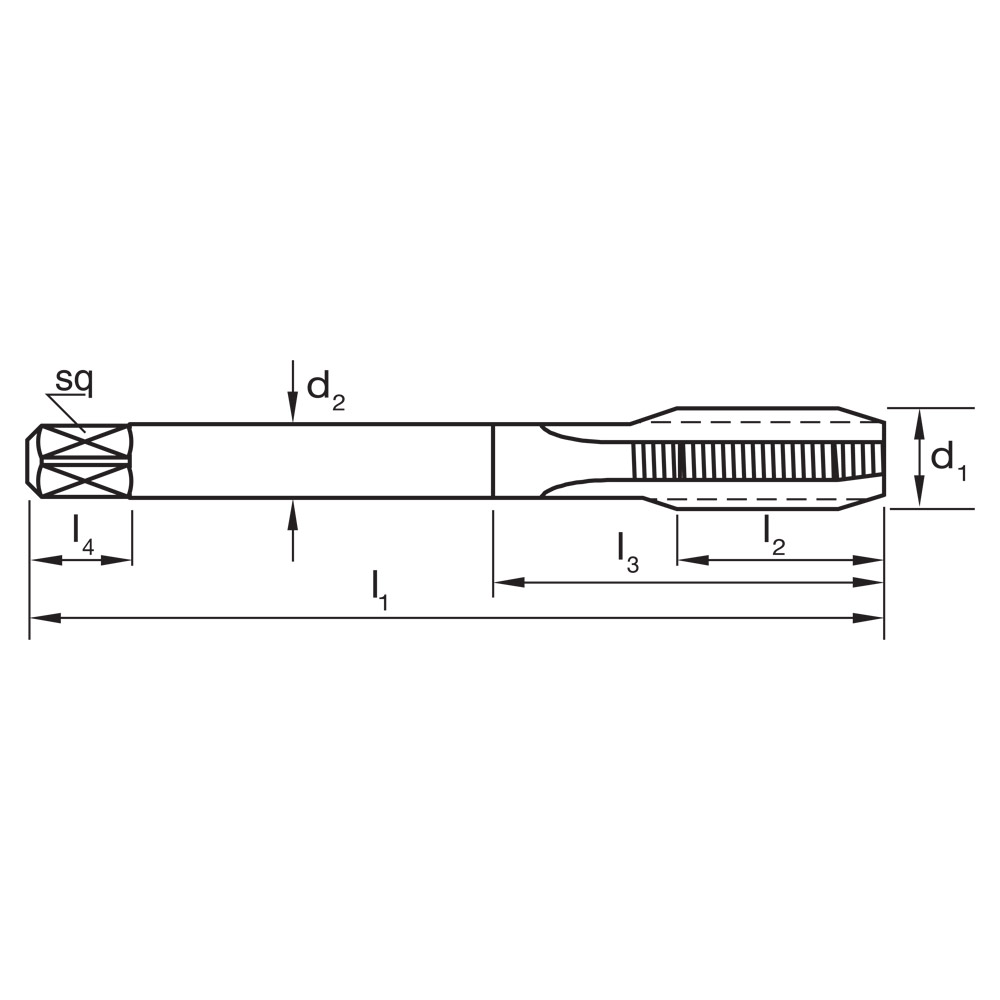

| Technical Details | |
|---|---|
| d1 | G 1/8 |
| d2 | 7 |
| Drill Ø | 8.8 |
| Finish | Ni + Blu |
| l1 | 90 |
| l2 | 20 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 1xD |
| sq | 5.5 |
| Thread Form | G (BSPF) |
| TPI | 28 |
| Type | Straight Flute |

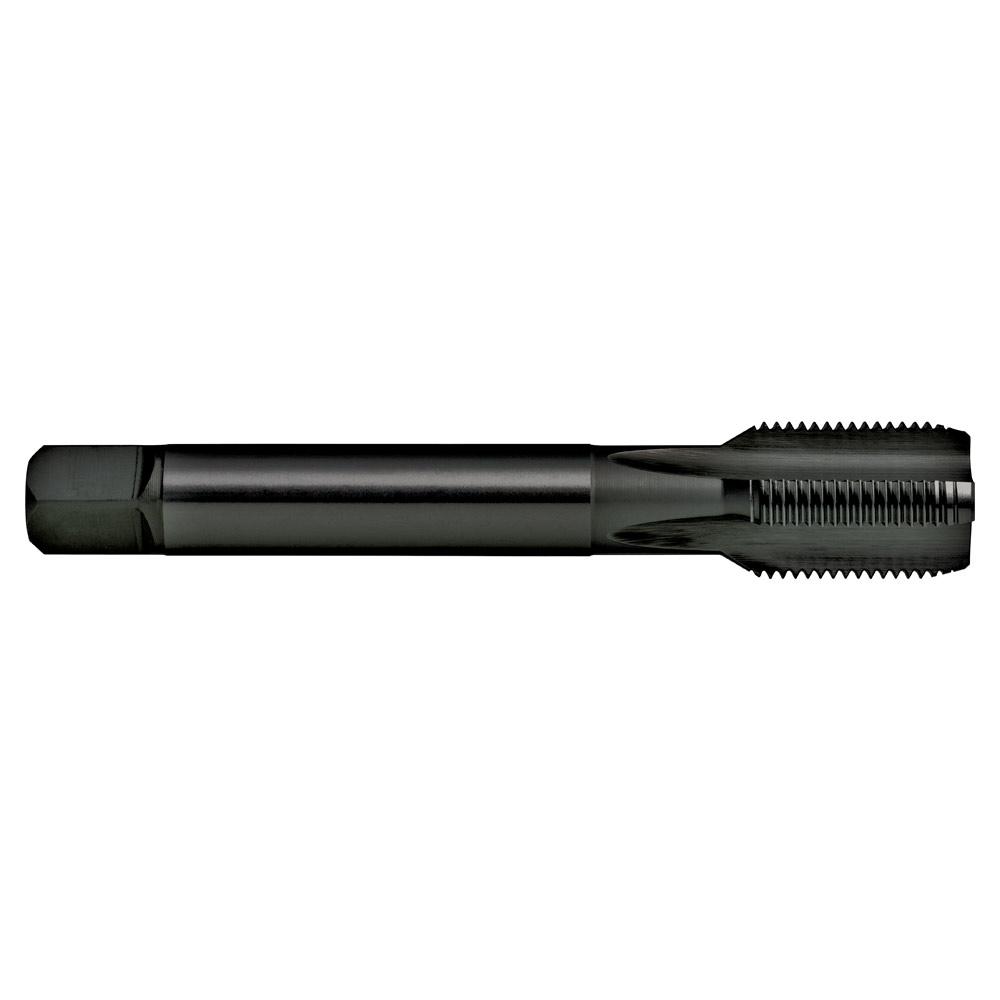

TAP T306 G 1/8-28 (BSPF) STRAIGHT GG DIN5156 C HSSE Ni+Blu
$77.68inc
GST
Straight Flute Taps – GG
- Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
- Through & blind holes
- Suitable for machine operations
- Depths up to approx. 1 x d1
View all: High Performance Taps - Straight Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
