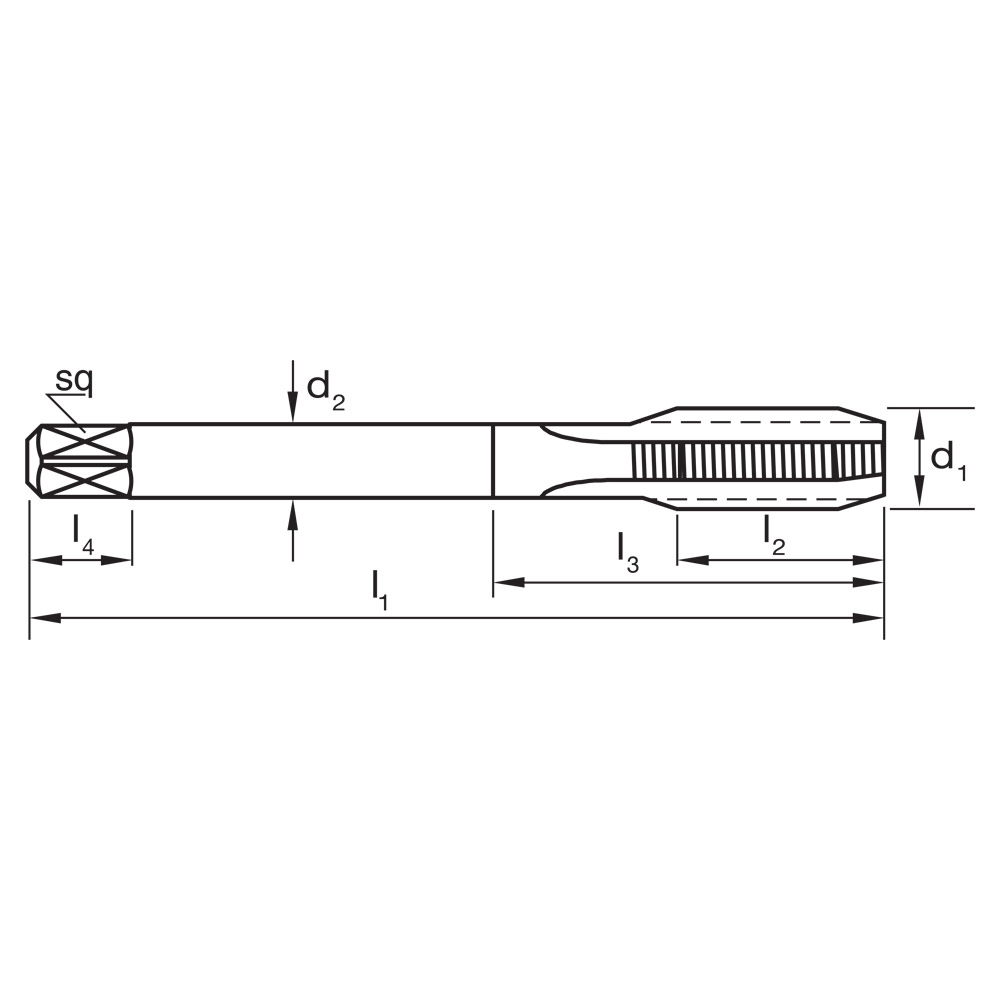

| Technical Details | |
|---|---|
| d1 | G 1/4 |
| d2 | 11 |
| Drill Ø | 11.8 |
| Finish | TiN |
| l1 | 100 |
| l2 | 22 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 1xD |
| sq | 9 |
| Thread Form | G (BSPF) |
| TPI | 19 |
| Type | Straight Flute |

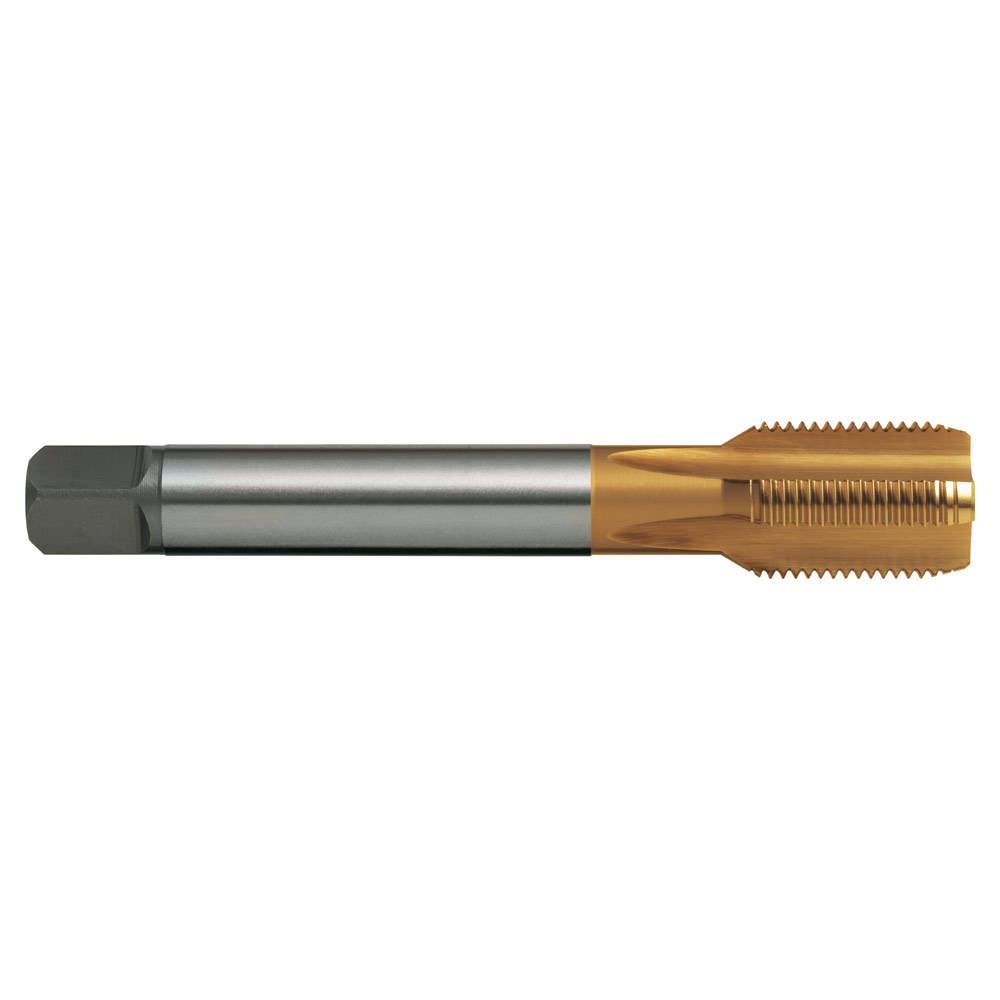

TAP T305 G 1/4-19 (BSPF) STRAIGHT N DIN5156 C HSSE TiN
$168.09inc
GST
Straight Flute Taps – N
- General Purpose use in materials up to approx. 1000 N/mm2
- Through & blind holes
- Suitable for machine operations
- Depths up to approx. 1 x d1
View all: High Performance Taps - Straight Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
