| Technical Details | |
|---|---|
| d1 | 5/8 |
| d2 | 12 |
| Drill Ø | 13.5 |
| Finish | Ni + Blu |
| l1 | 110 |
| l2 | 32 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 9 |
| Thread Form | UNC |
| TPI | 11 |
| Type | Straight Flute |

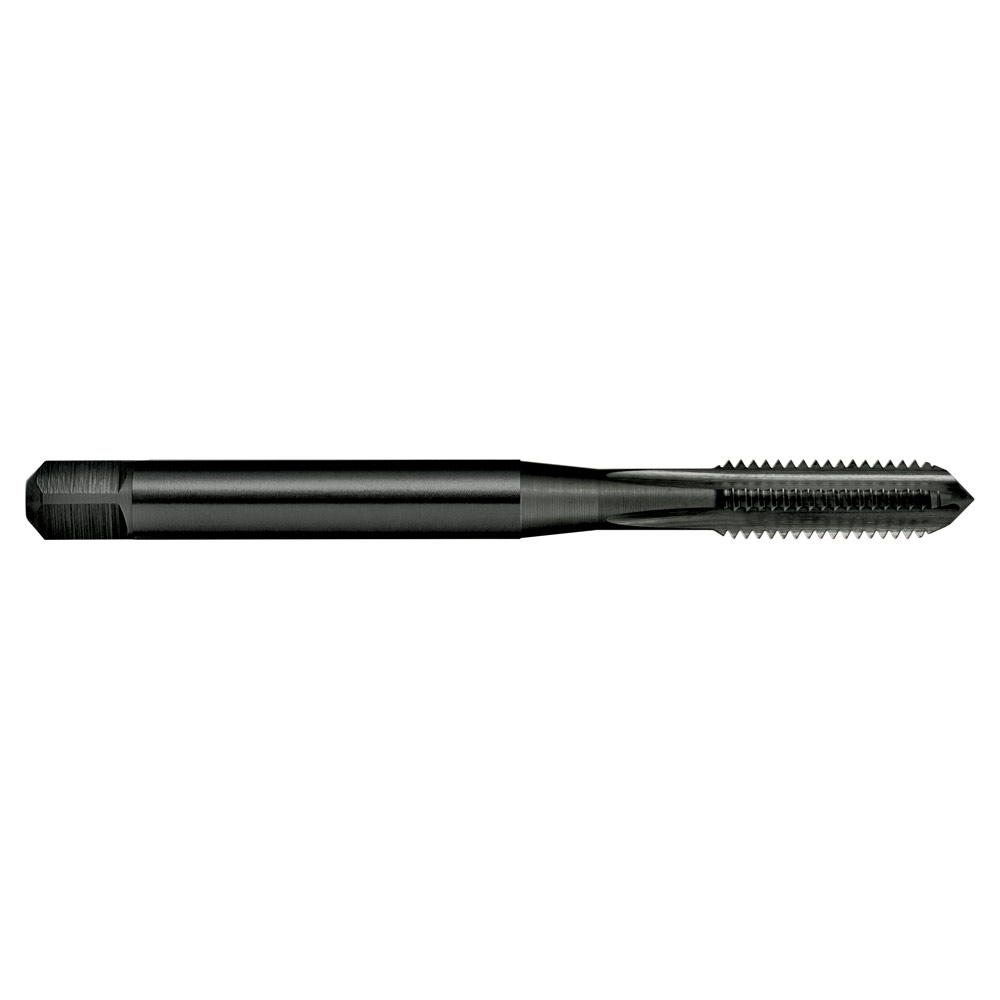

TAP T302 UNC 5/8-11 6HX STRAIGHT GG DIN2184-1 C HSSE Ni+Blu
$119.57inc
GST
Straight Flute Taps – GG
- Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
- Through & blind holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
View all: High Performance Taps - Straight Flute
