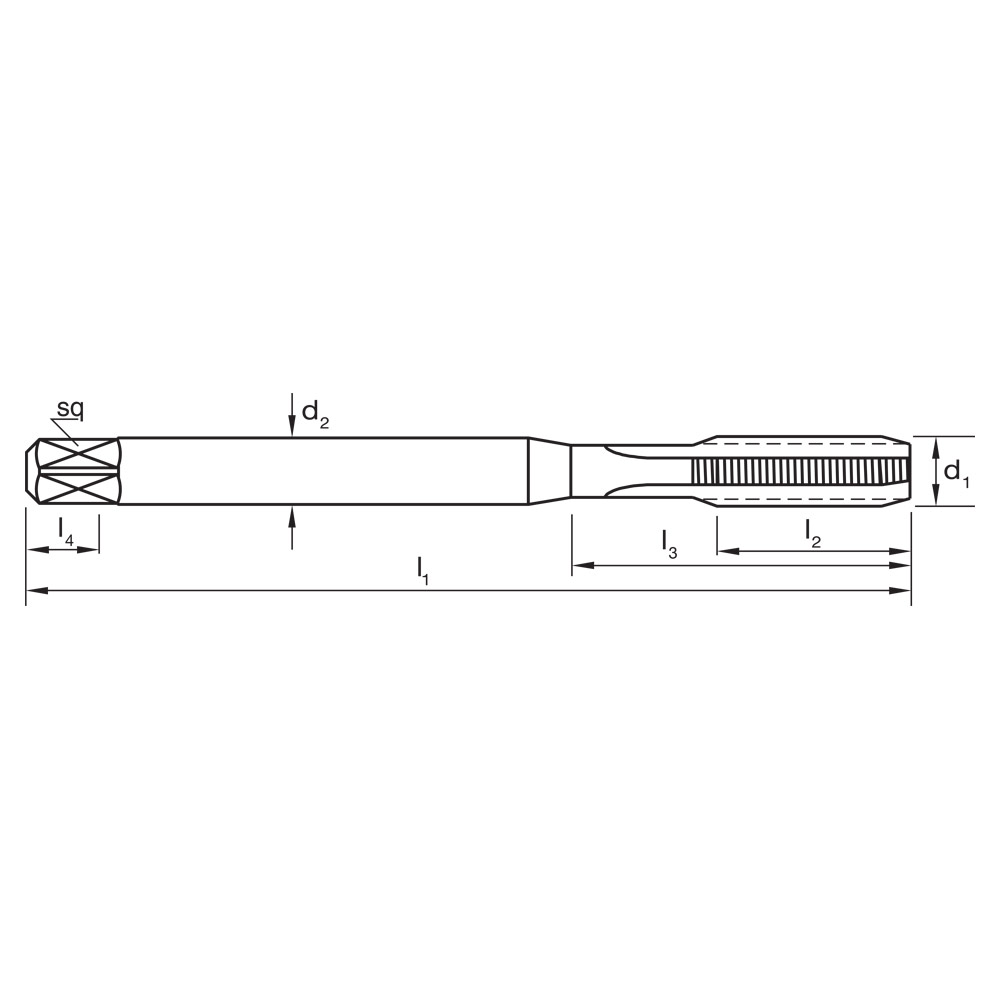

| Technical Details | |
|---|---|
| d1 | M3 |
| d2 | 3.5 |
| Drill Ø | 2.5 |
| Finish | Ni + Blu |
| l1 | 56 |
| l2 | 11 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 0.5 |
| sq | 2.7 |
| Thread Form | M |
| Type | Straight Flute |

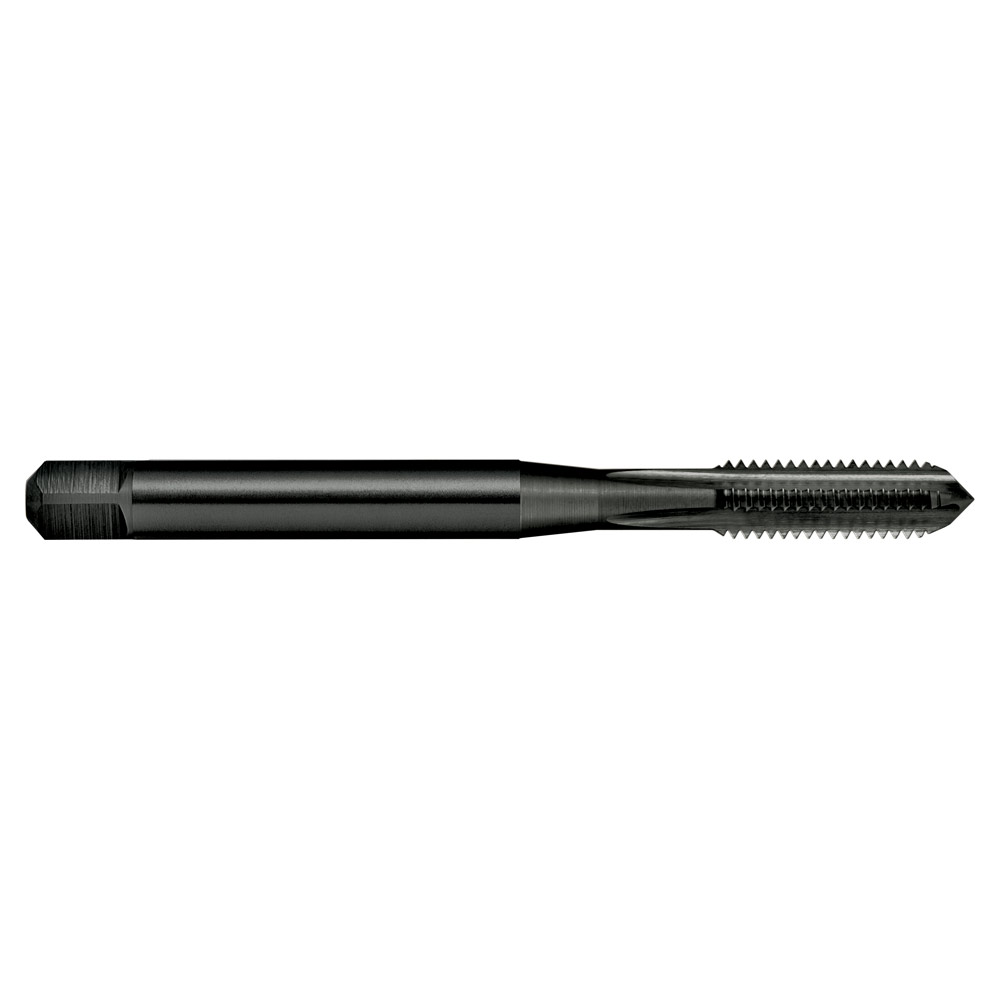

TAP T290 M 3 x 0.5 6HX STRAIGHT GG DIN371 C HSSE Ni+Blu
$35.55inc
GST
Straight Flute Taps – GG
- For use in grey cast iron (GG)
- Through & blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Straight Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
