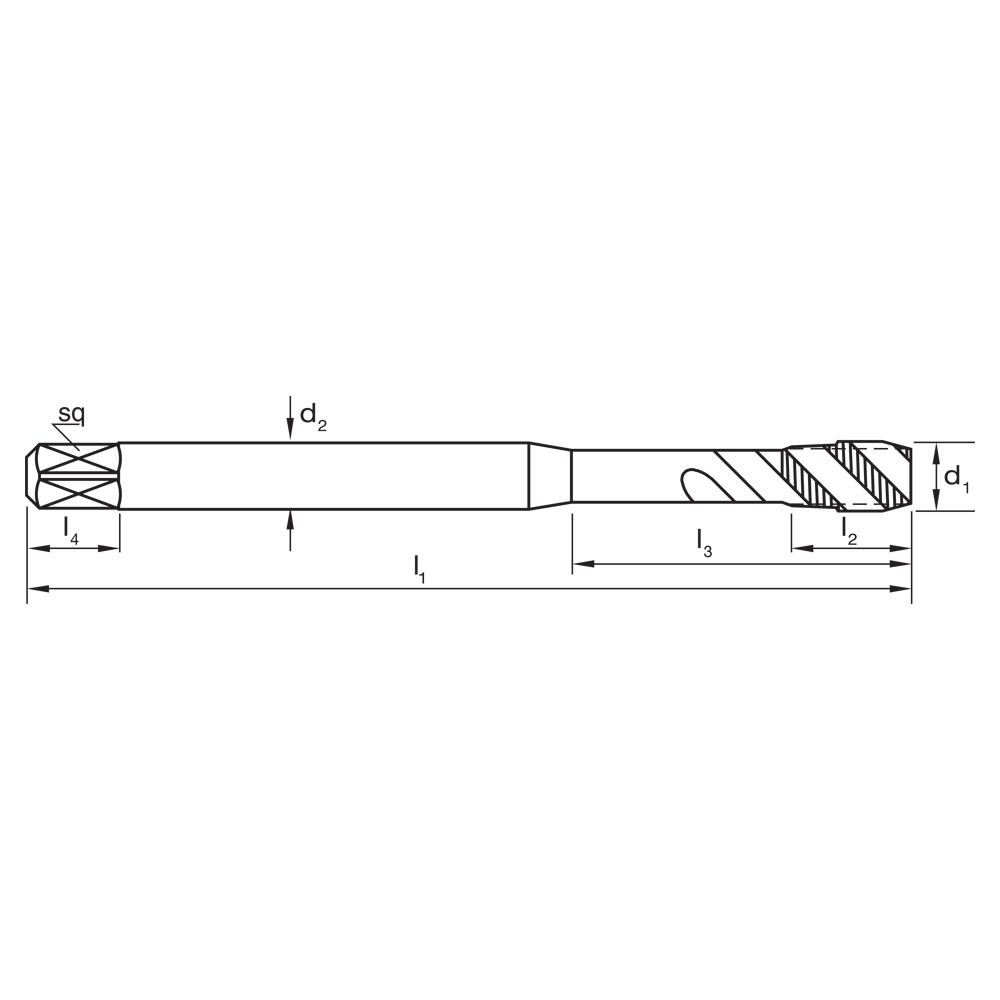

| Technical Details | |
|---|---|
| d1 | 5/8 |
| d2 | 12 |
| Drill Ø | 14.5 |
| Finish | TiCN |
| Helix Angle | R45 |
| l1 | 110 |
| l2 | 20 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 9 |
| Thread Form | UNF |
| TPI | 18 |
| Type | Spiral Flute |

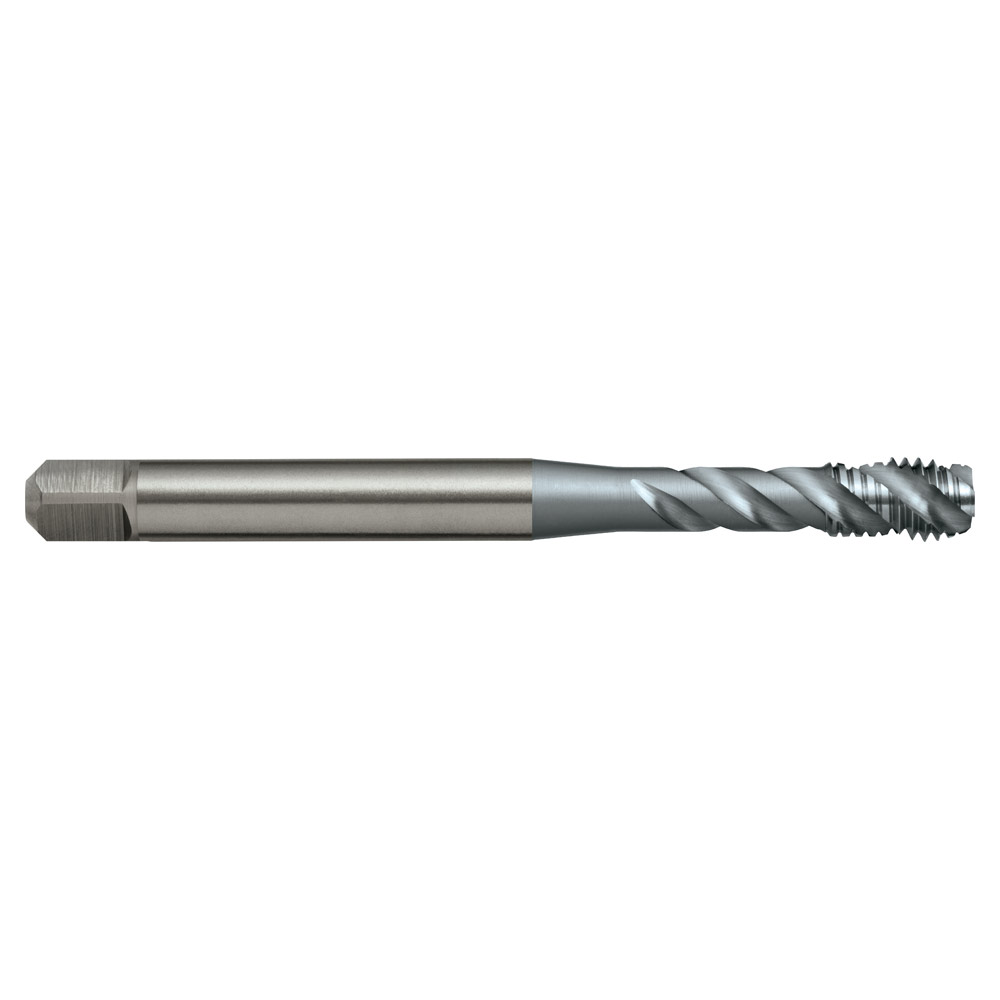

TAP T277 UNF 5/8-18 2B SPIRAL R45VA-DH DIN2184-1 C HSSE TiCN
$194.60inc
GST
Spiral Flute Taps – R45 VADH
- Use in stainless steels and high strength steels up to 1000N/mm2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 3 x d1
View all: High Performance Taps - Spiral Flute
