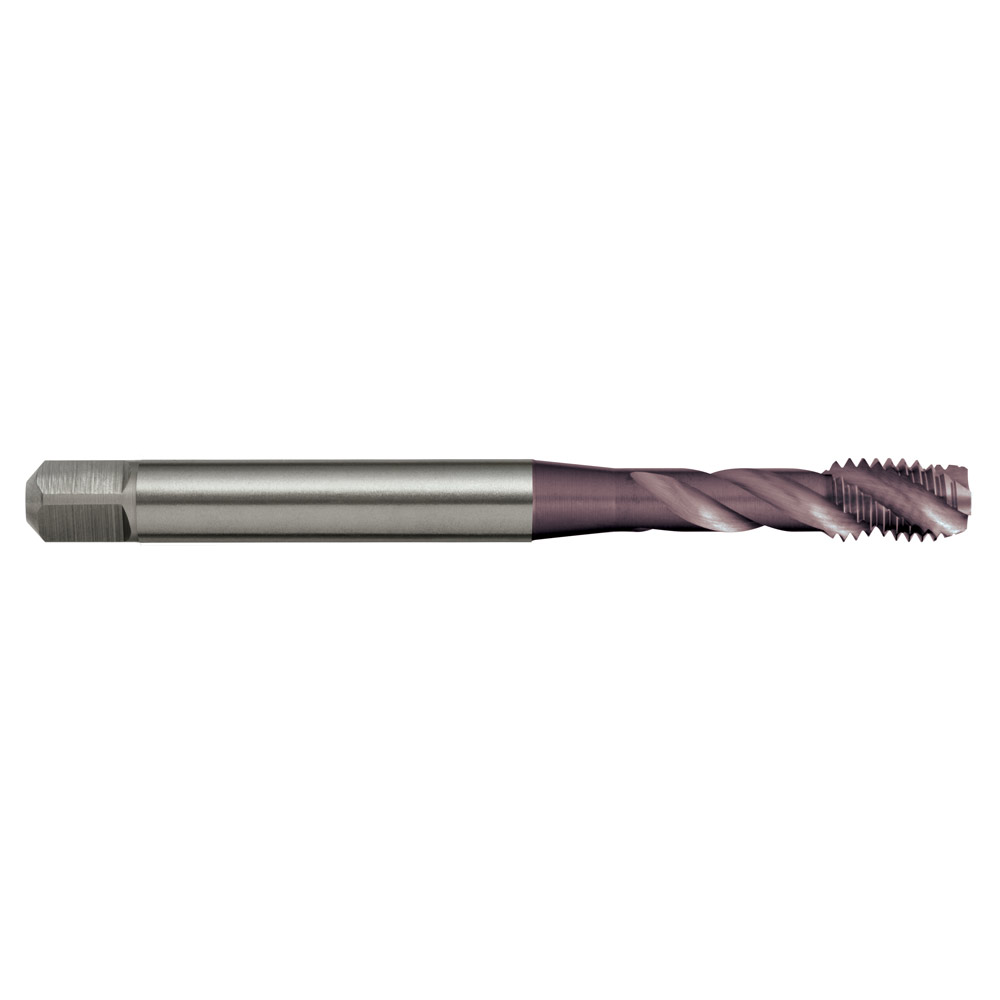

TAP T267 UNC 5/16-18 2B SPL R40 NH DIN2184-1 C PM-V3 TiAlN
TAP T267 UNC 5/16-18 2B SPL R40 NH DIN2184-1 C PM-V3 TiAlN - Image 2
  1. TAP T267 UNC 5/16-18 2B SPL R40 NH DIN2184-1 C PM-V3 TiAlN
  2. TAP T267 UNC 5/16-18 2B SPL R40 NH DIN2184-1 C PM-V3 TiAlN - Image 2

TAP T267 UNC 5/16-18 2B SPL R40 NH DIN2184-1 C PM-V3 TiAlN

SKU: HSTC516SFUPMTIALS/C: T2670794Barcode: 9311963428871
Usually ships in 1 daySubject to availability

$98.33inc
GST

Price Match

Spiral Flute Taps – R40 NH

  • Use in harder short chipping materials up to 42 HRc
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 2.5 x d1
More Info
View all:

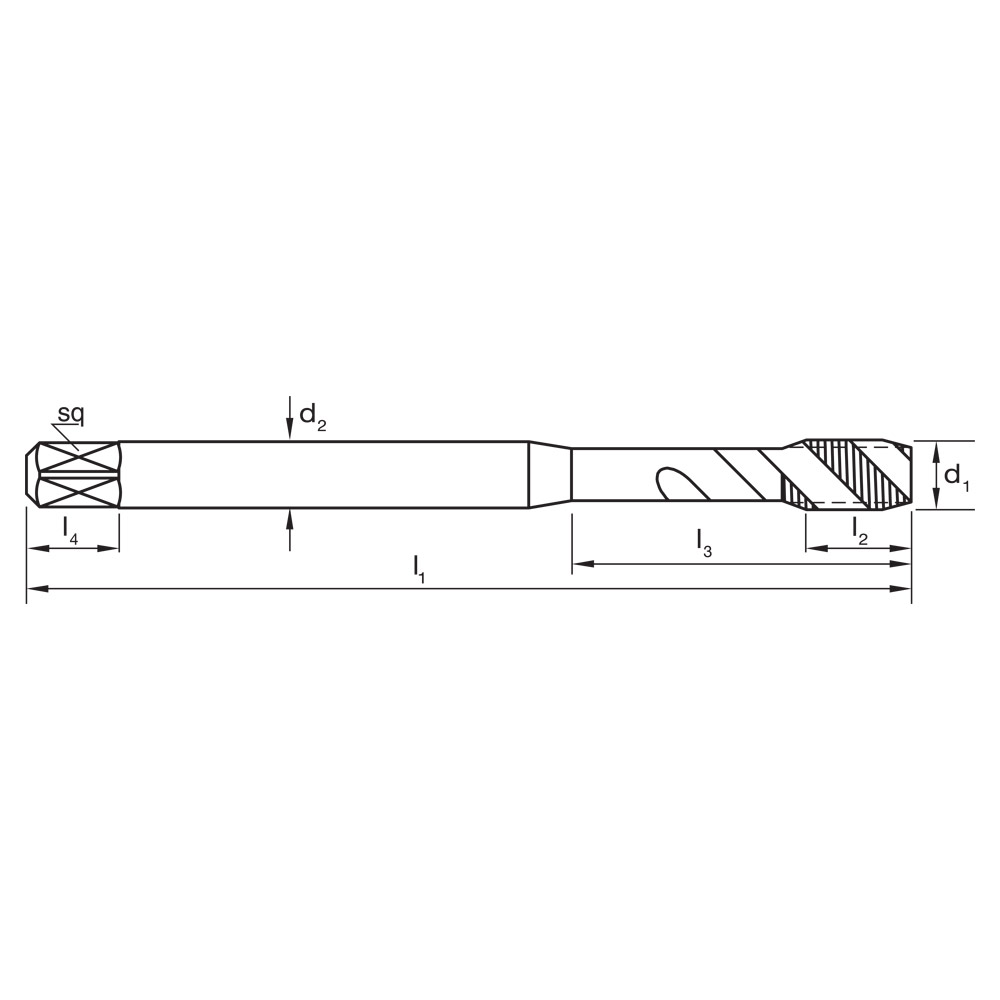

Technical Details
d15/16
d28
Drill Ø6.6
FinishTiAlN
Helix AngleR40
l190
l213
LeadForm C / 3 x P
MaterialPM-HSSE V3
Max Cut Depth2.5xD
sq6.2
Thread FormUNC
TPI18
TypeSpiral Flute
