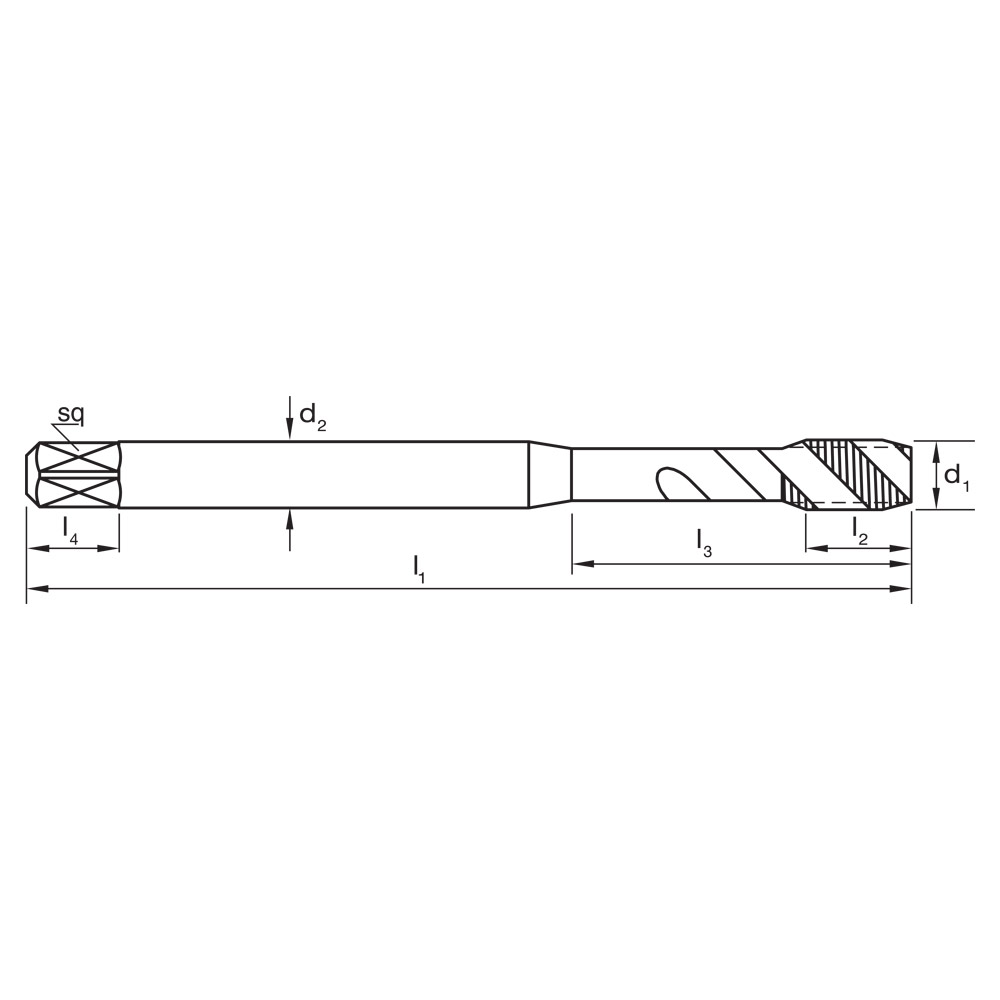

| Technical Details | |
|---|---|
| d1 | 3/4 |
| d2 | 14 |
| Drill Ø | 16.5 |
| Finish | Blu |
| Helix Angle | R40 |
| l1 | 125 |
| l2 | 25 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 2.5xD |
| sq | 11 |
| Thread Form | UNC |
| TPI | 10 |
| Type | Spiral Flute |

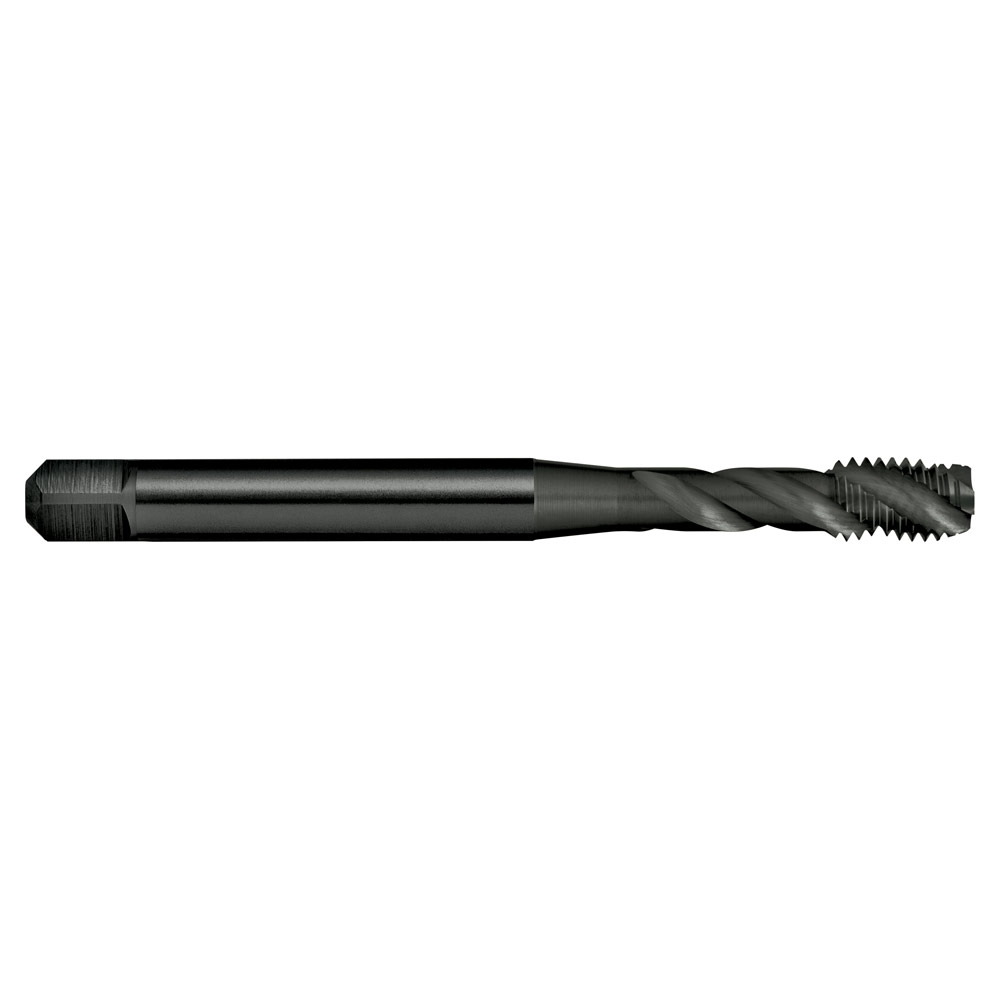

TAP T266 UNC 3/4-10 2B SPIRAL R40 NH DIN2184-1 C PM-V3 BLU
$278.36inc
GST
Spiral Flute Taps – R40 NH
- Use in harder short chipping materials up to 42 HRc
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 2.5 x d1
View all: High Performance Taps - Spiral Flute
