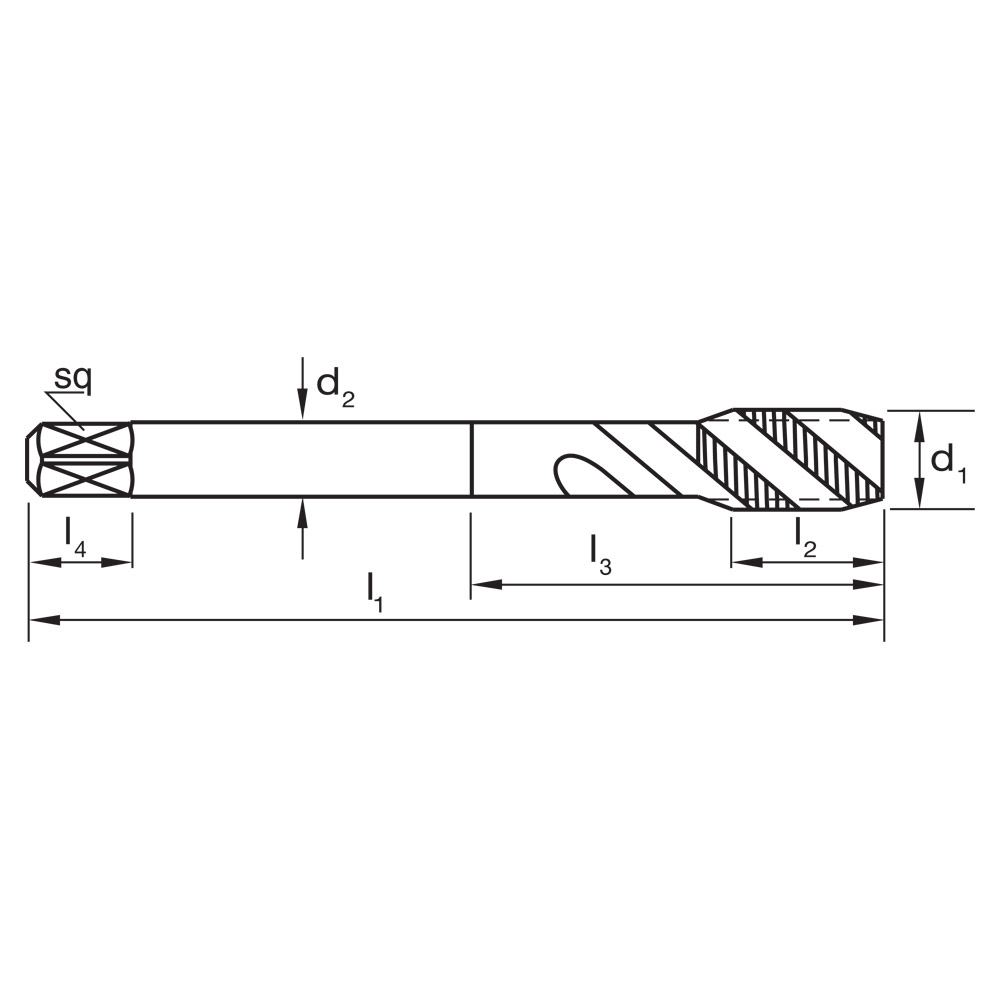

| Technical Details | |
|---|---|
| d1 | 1 3/8 |
| d2 | 28 |
| Drill Ø | 31.75 |
| Finish | TiCN |
| Helix Angle | R40 |
| l1 | 200 |
| l2 | 30 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 2.5xD |
| sq | 22 |
| Thread Form | 8UN |
| TPI | 8 |
| Type | Spiral Flute |

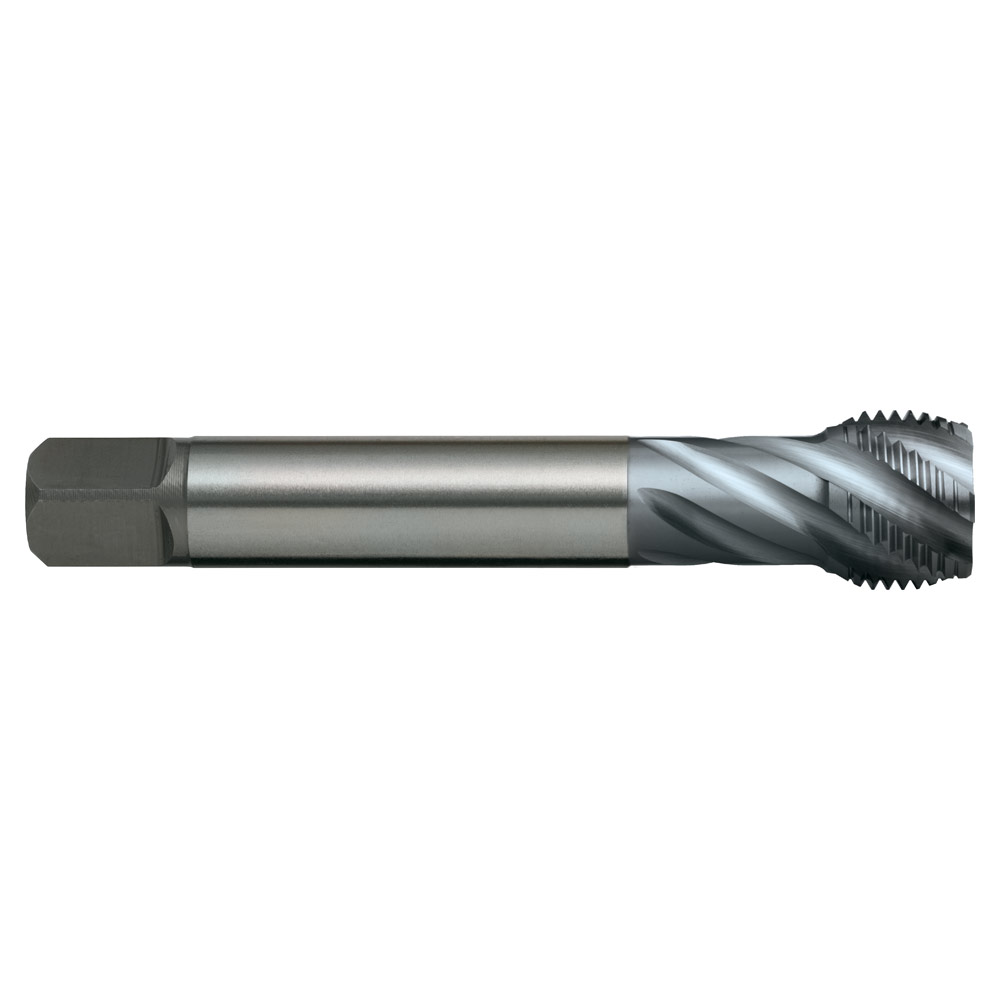

TAP T264 UN 1-3/8-8 2B SPIRAL R40 VA DIN2184-1 C HSSE TiCN
$606.34inc
GST
Spiral Flute Taps – R40 VA
- Use in stainless steels and high strength steels up to 1000N/mm2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 2.5 x d1
View all: High Performance Taps - Spiral Flute
