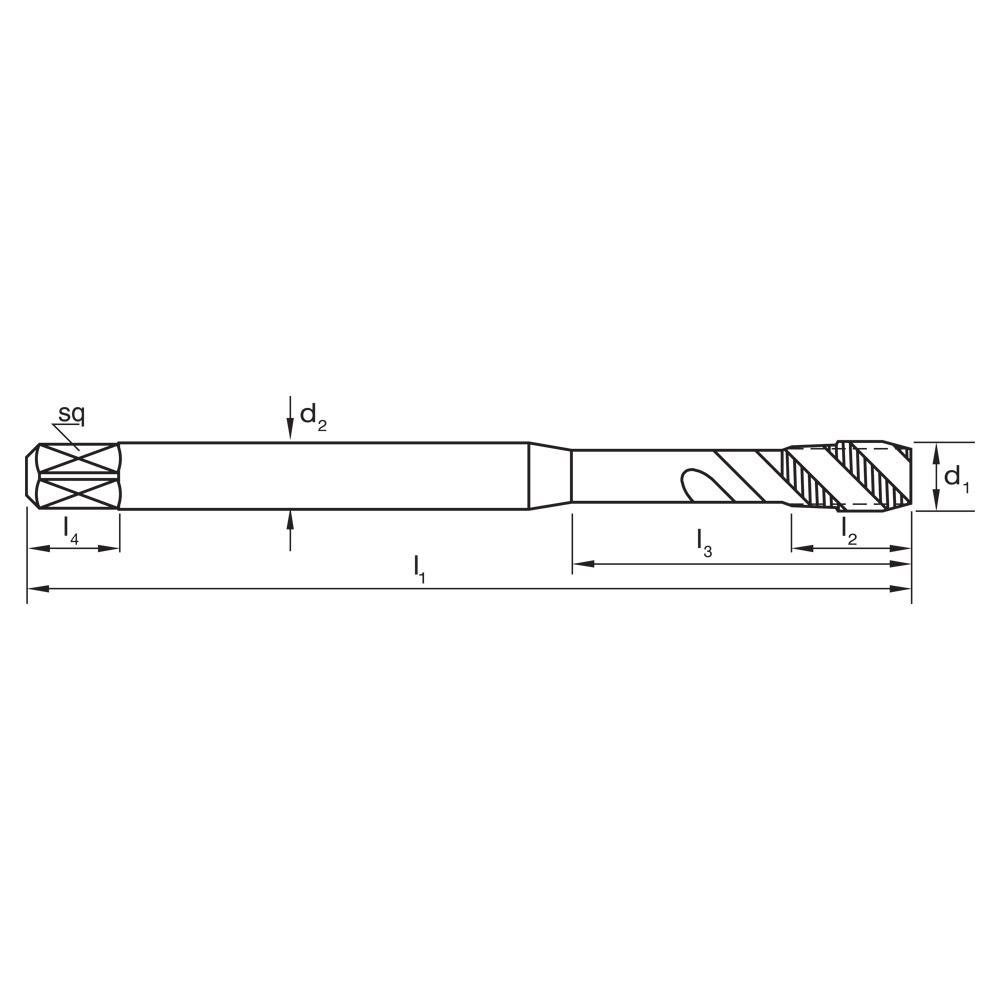

| Technical Details | |
|---|---|
| d1 | 3/4 |
| d2 | 14 |
| Drill Ø | 16.5 |
| Finish | TiCN |
| Helix Angle | R45 |
| l1 | 125 |
| l2 | 25 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 11 |
| Thread Form | UNC |
| TPI | 10 |
| Type | Spiral Flute |

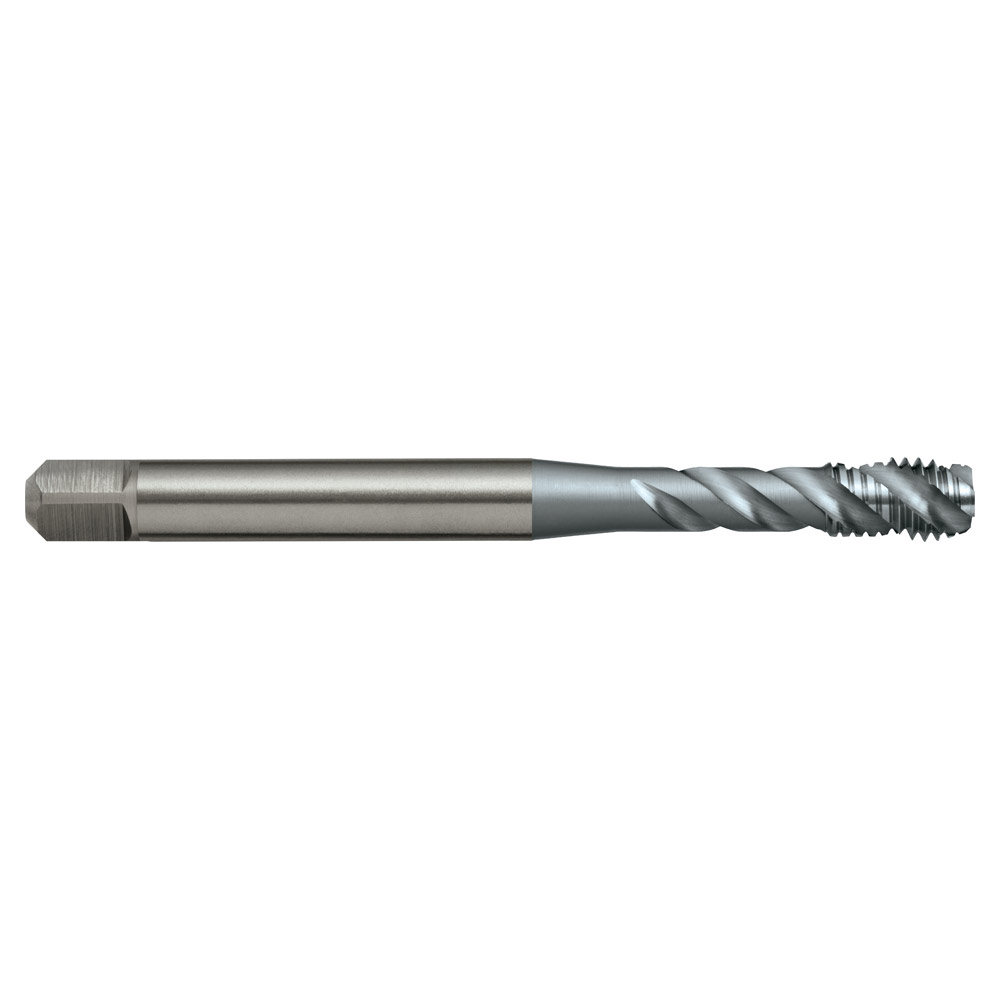

TAP T262 UNC 3/4-10 2B SPIRAL R45VA-DH DIN2184-1 C HSSE TiCN
$182.23inc
GST
Spiral Flute Taps – R45 VADH
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
View all: High Performance Taps - Spiral Flute
