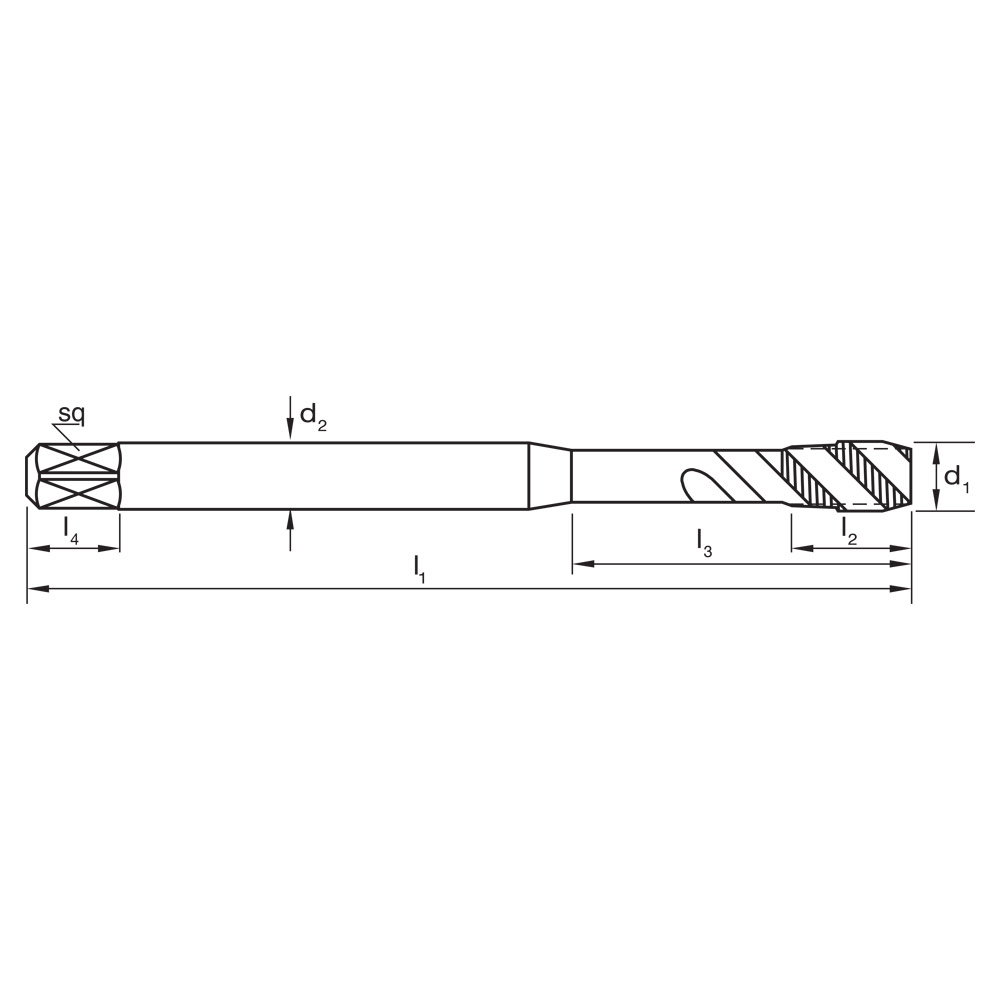

| Technical Details | |
|---|---|
| d1 | #8 |
| d2 | 4.5 |
| Drill Ø | 3.4 |
| Finish | Blu |
| Helix Angle | R45 |
| l1 | 63 |
| l2 | 7 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 3.4 |
| Thread Form | UNC |
| TPI | 32 |
| Type | Spiral Flute |

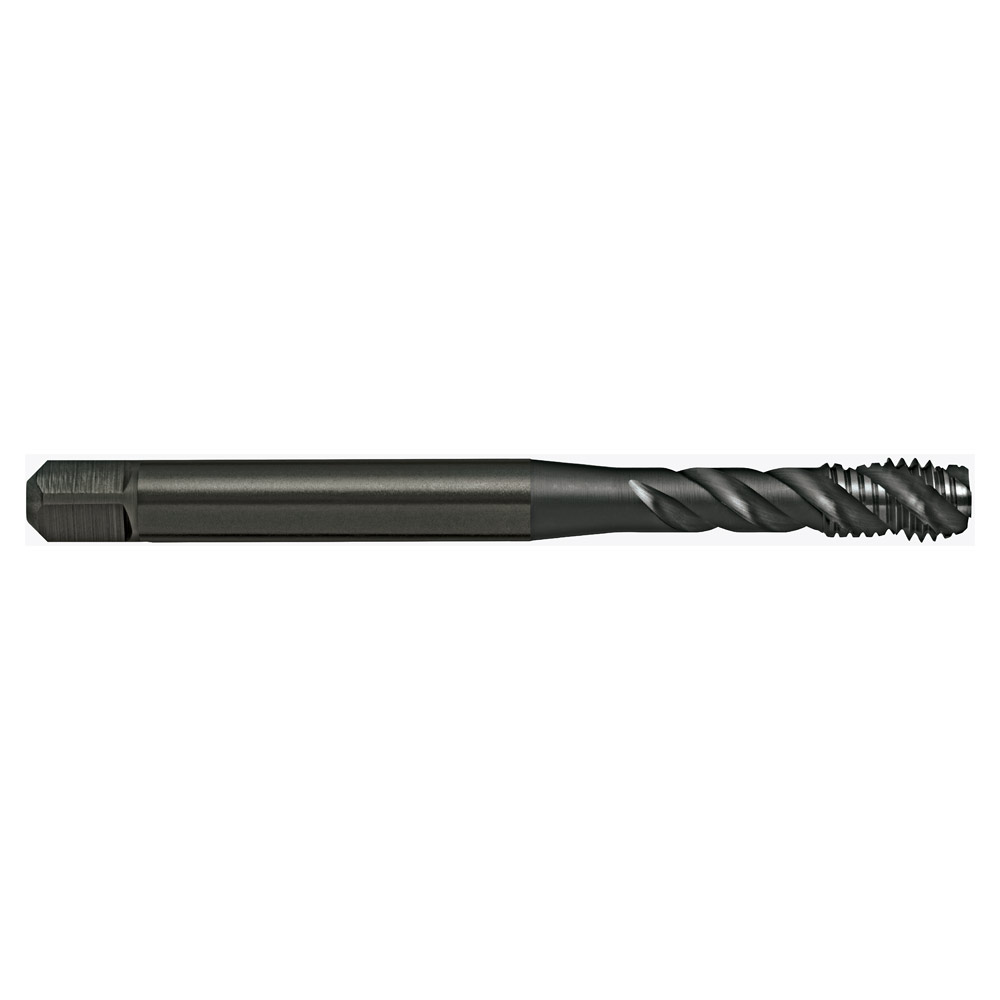

TAP T261 UNC 8-32 2B SPIRAL R45 VA-DH DIN2184-1 C HSSE BLU
$53.25inc
GST
Spiral Flute Taps – R45 VADH
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
View all: High Performance Taps - Spiral Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
