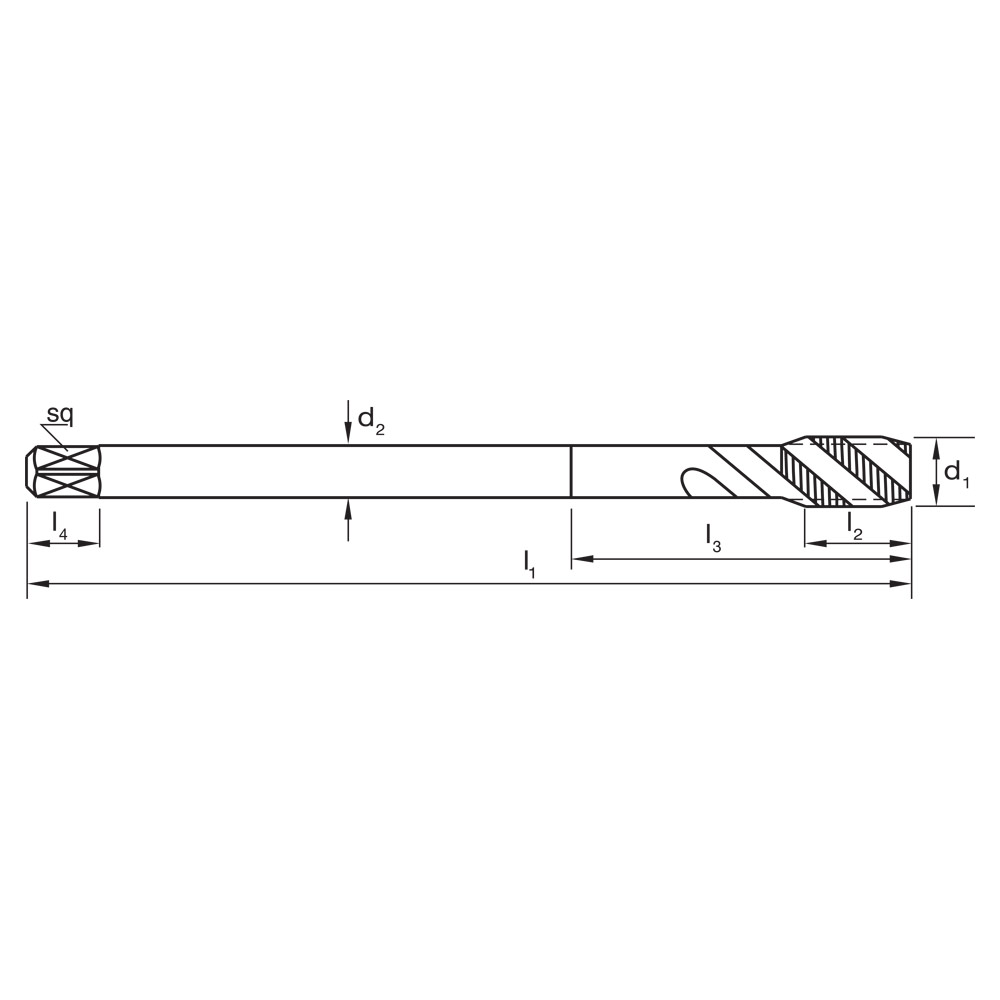

Technical Details | |
---|---|
d1 | MF12 |
d2 | 9 |
Drill Ø | 11 |
Finish | TiCN |
Helix Angle | R50 |
l1 | 100 |
l2 | 14 |
Lead | Form C / 3 x P |
Material | PM-HSSE V3 |
Max Cut Depth | 3xD |
Pitch | 1 |
sq | 7 |
Thread Form | MF |
Type | Spiral Flute |

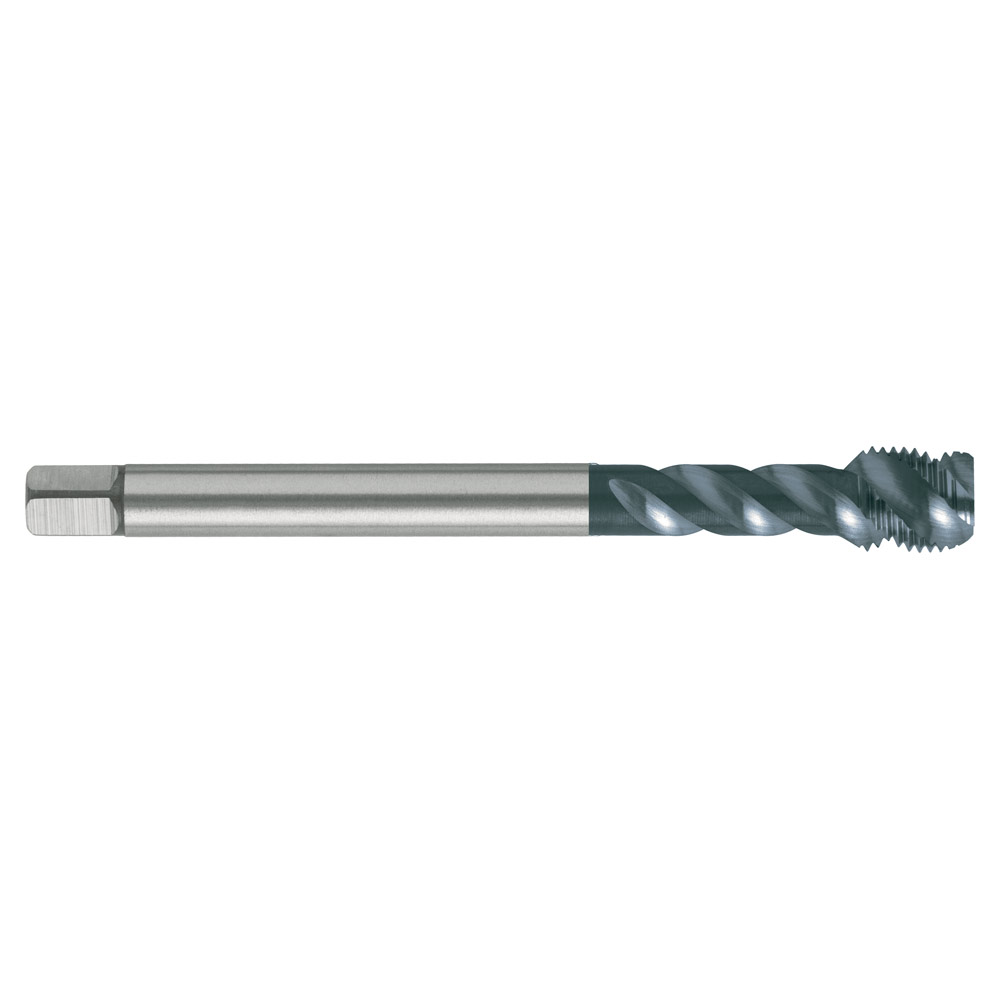

TAP T252 MF 12 x 1 6HX SPIRAL R50 VA DIN374 C PM-V3 TiCN
$171.66inc
GST
Spiral Flute Taps – R50 VA PM
- Use in stainless steels and high strength steels up to 1000N/mm2
- PM-HSSE V3 offers higher edge hardness than standard VA series
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 3 x d1
View all: High Performance Taps - Spiral Flute
