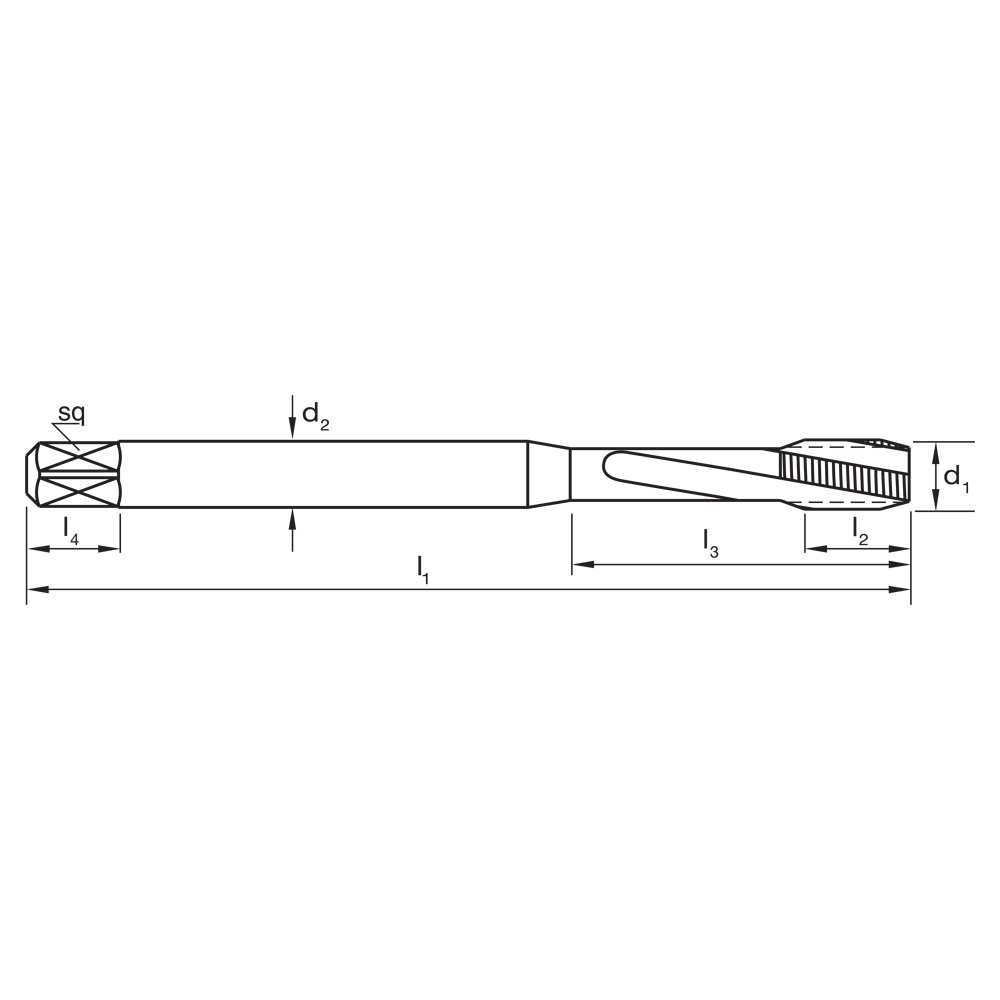

| Technical Details | |
|---|---|
| d1 | M6 |
| d2 | 6 |
| Drill Ø | 5 |
| Finish | TiAlN |
| Helix Angle | R40 |
| l1 | 80 |
| l2 | 10 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 2.5xD |
| Pitch | 1 |
| sq | 4.9 |
| Thread Form | M |
| Type | Spiral Flute |

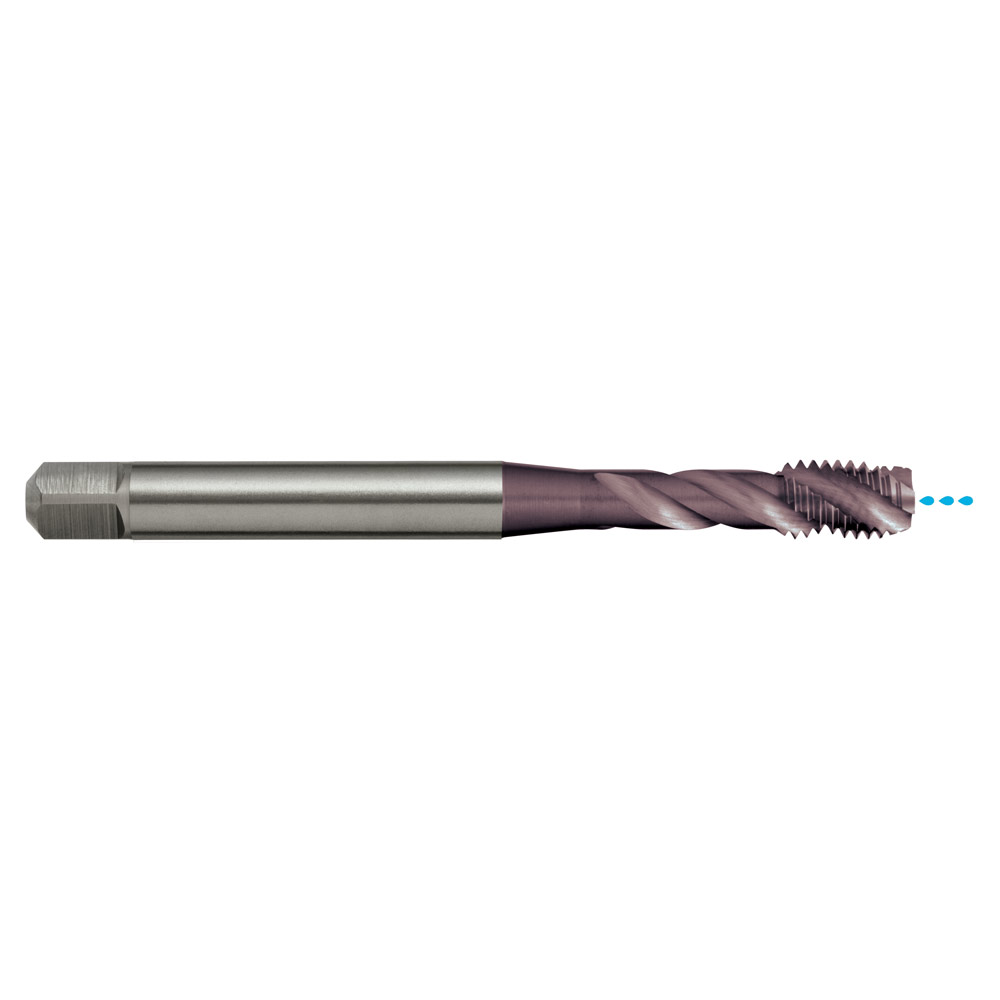

TAP T229 M 6 x 1 6H SPIRAL R40 NH-IK DIN371 C PM-V3 TiAlN
$176.91inc
GST
Spiral Flute Taps – R40 NH – IK
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
View all: High Performance Taps - Spiral Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
