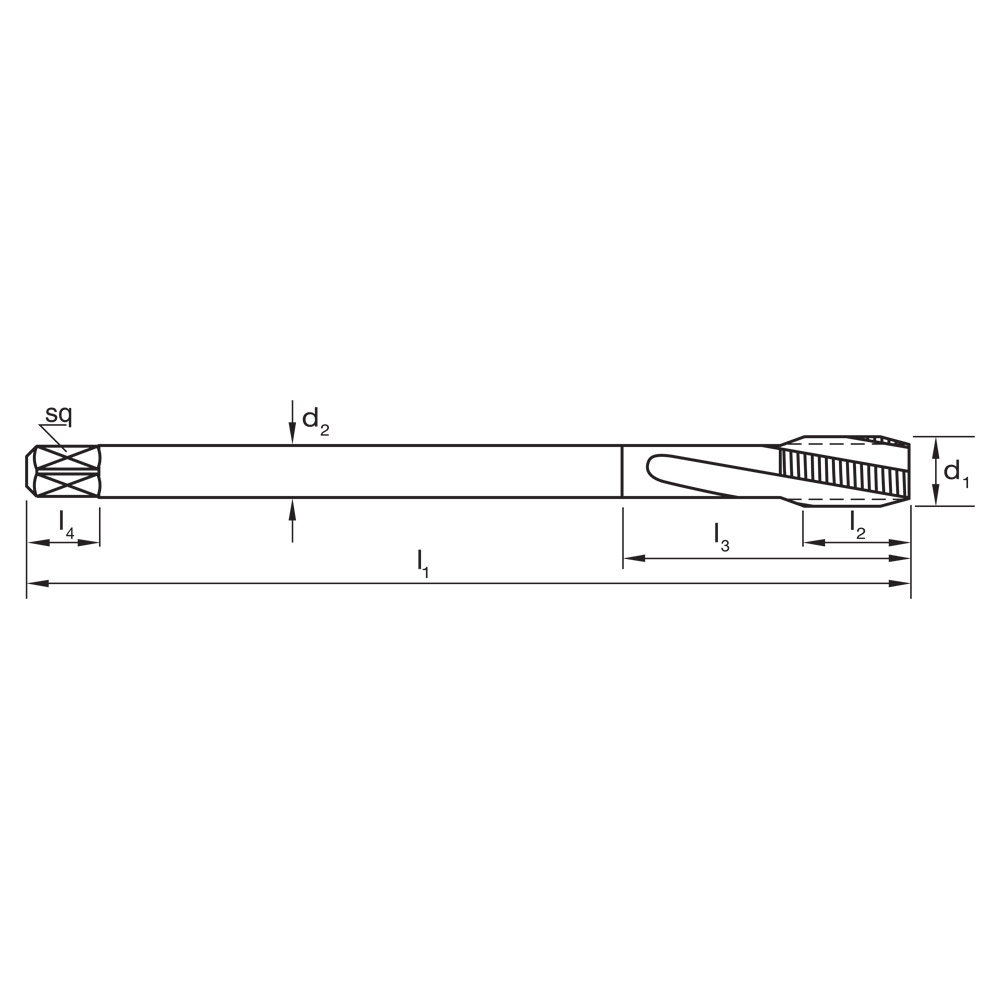

| Technical Details | |
|---|---|
| d1 | M20 |
| d2 | 16 |
| Drill Ø | 17.5 |
| Finish | TiCN |
| Helix Angle | R15 |
| l1 | 140 |
| l2 | 25 |
| Lead | Form C / 3 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 1.5xD |
| Pitch | 2.5 |
| sq | 12 |
| Thread Form | M |
| Type | Spiral Flute |

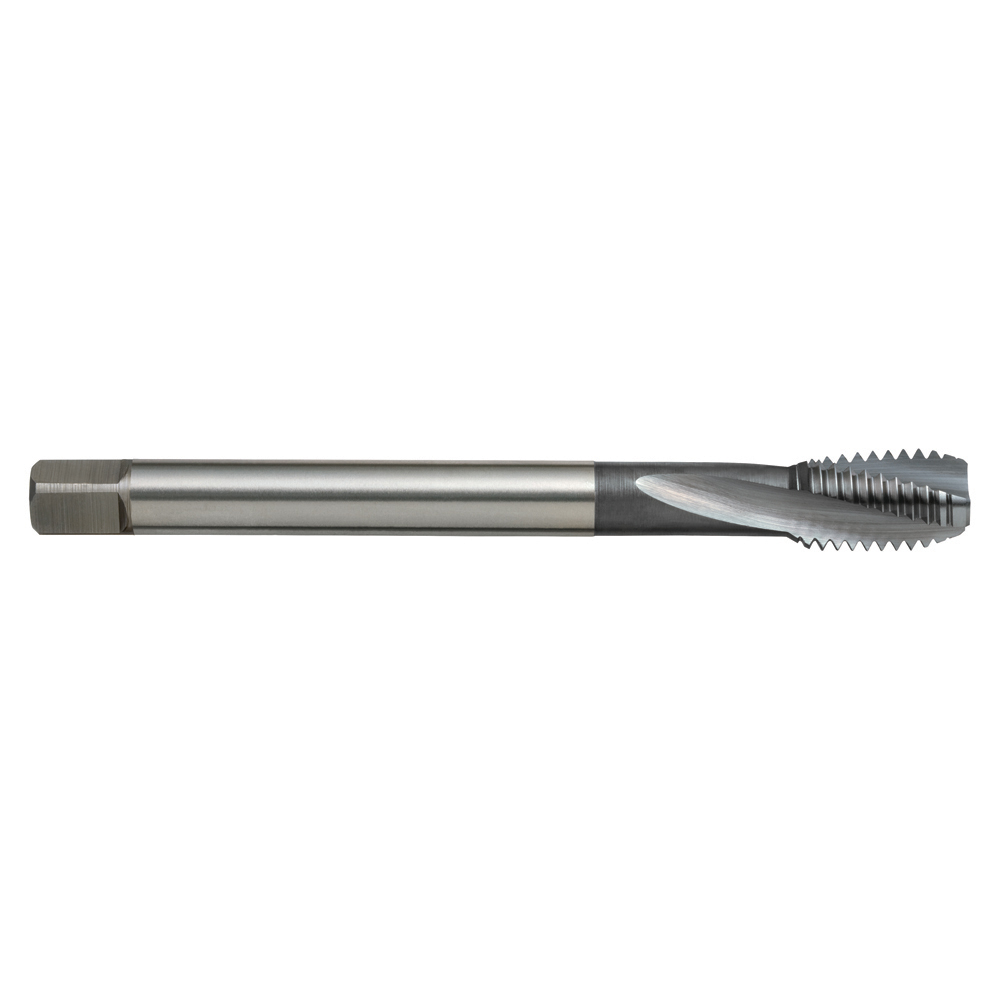

TAP T216 M 20 x 2.5 6HX SPIRAL R15 Ti DIN376 C PM-Co. TiCN
$413.22inc
GST
Spiral Flute Taps – R15 Ti
- For Titanium based alloys
- For duplex and super duplex stainless steels
- For Nickel based alloys >850N/mm2 <1150N/mm2
- Tight tolerances and optimised microfinish For optimal process reliability and excellent thread quality
- Blind holes up to approx. 1.5 x d1
View all: High Performance Taps - Spiral Flute
