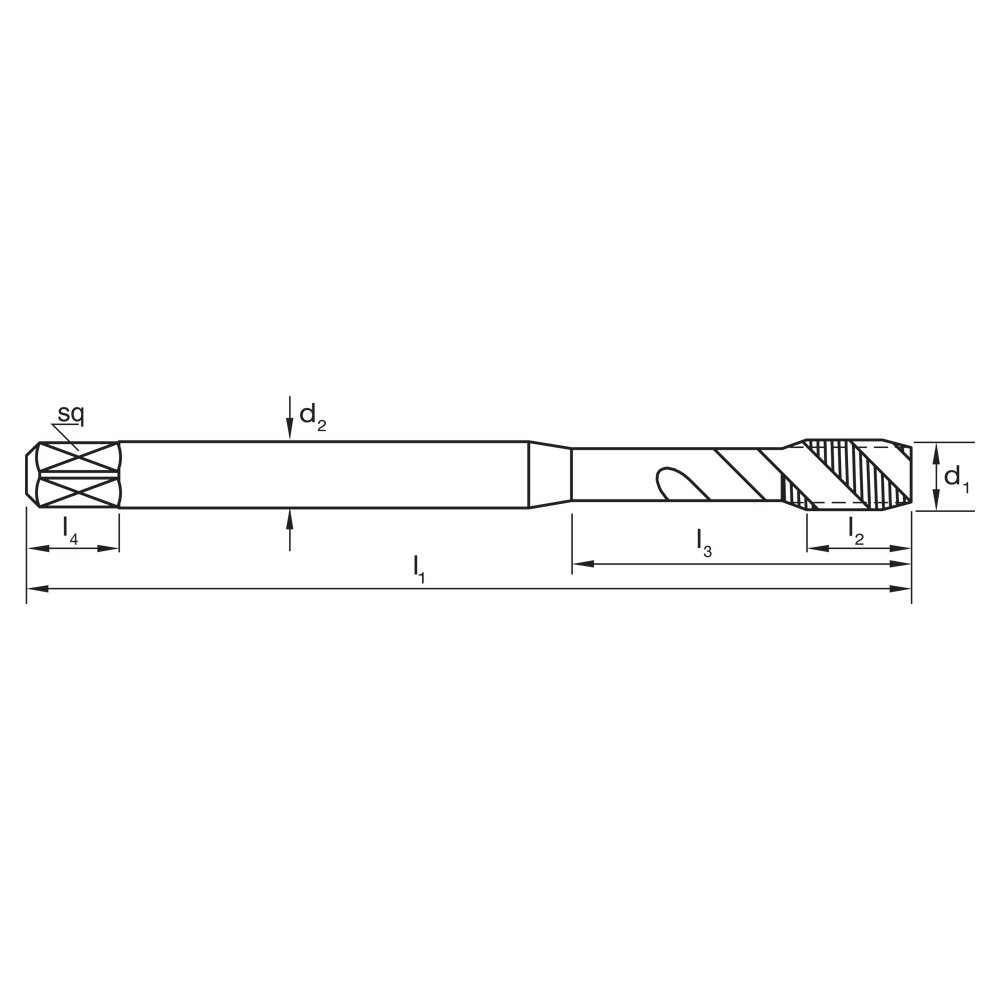

| Technical Details | |
|---|---|
| d1 | M4 |
| d2 | 4.5 |
| Drill Ø | 3.3 |
| Finish | Blu |
| Helix Angle | R50 |
| l1 | 63 |
| l2 | 7 |
| Lead | Form C / 3 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 0.7 |
| sq | 3.4 |
| Thread Form | M |
| Type | Spiral Flute |

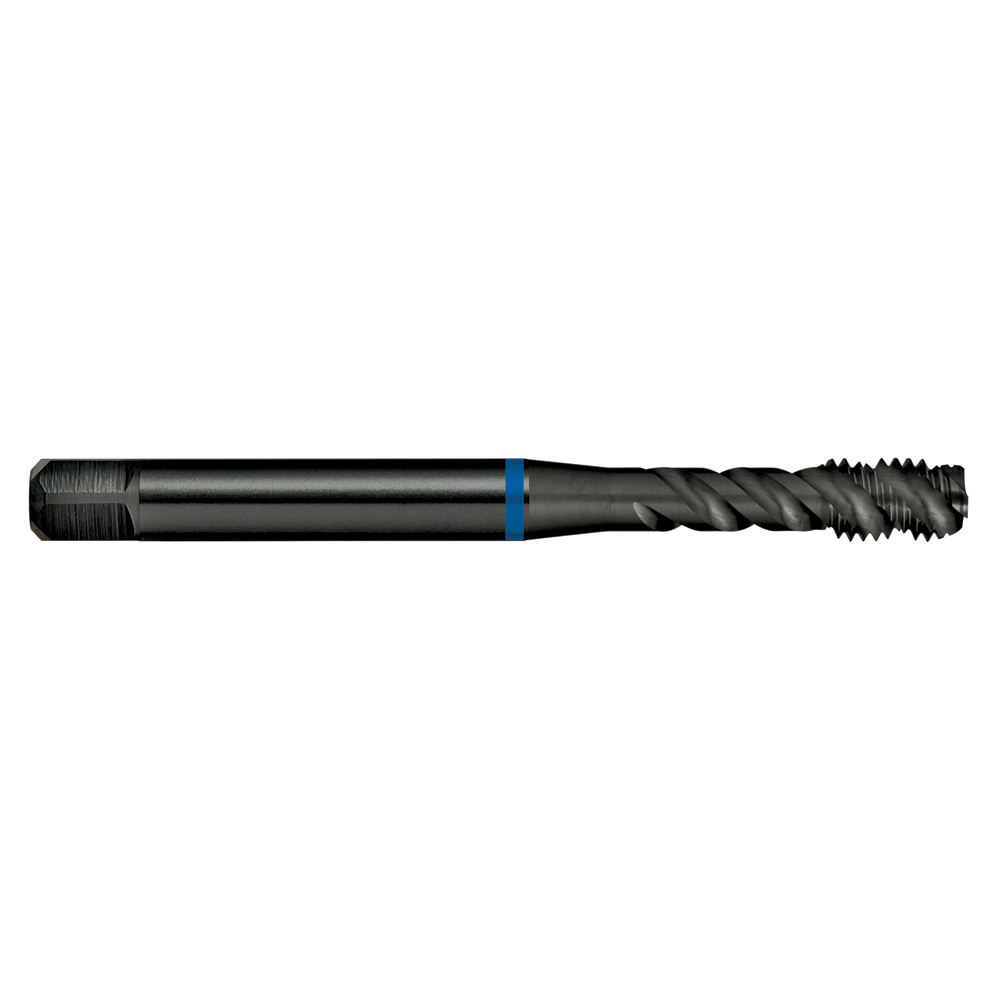

TAP T203 M 4 x 0.7 6HX SPIRAL R50 VA DIN371 C PM-V3 BLU
$65.60inc
GST
Spiral Flute Taps – R50 VAPM
- Universal high performance tapping
- PM-HSSE V3 offers superior tool life
- Use in stainless steels and high strength steels up to 850N/mm2
- Deep blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Spiral Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
