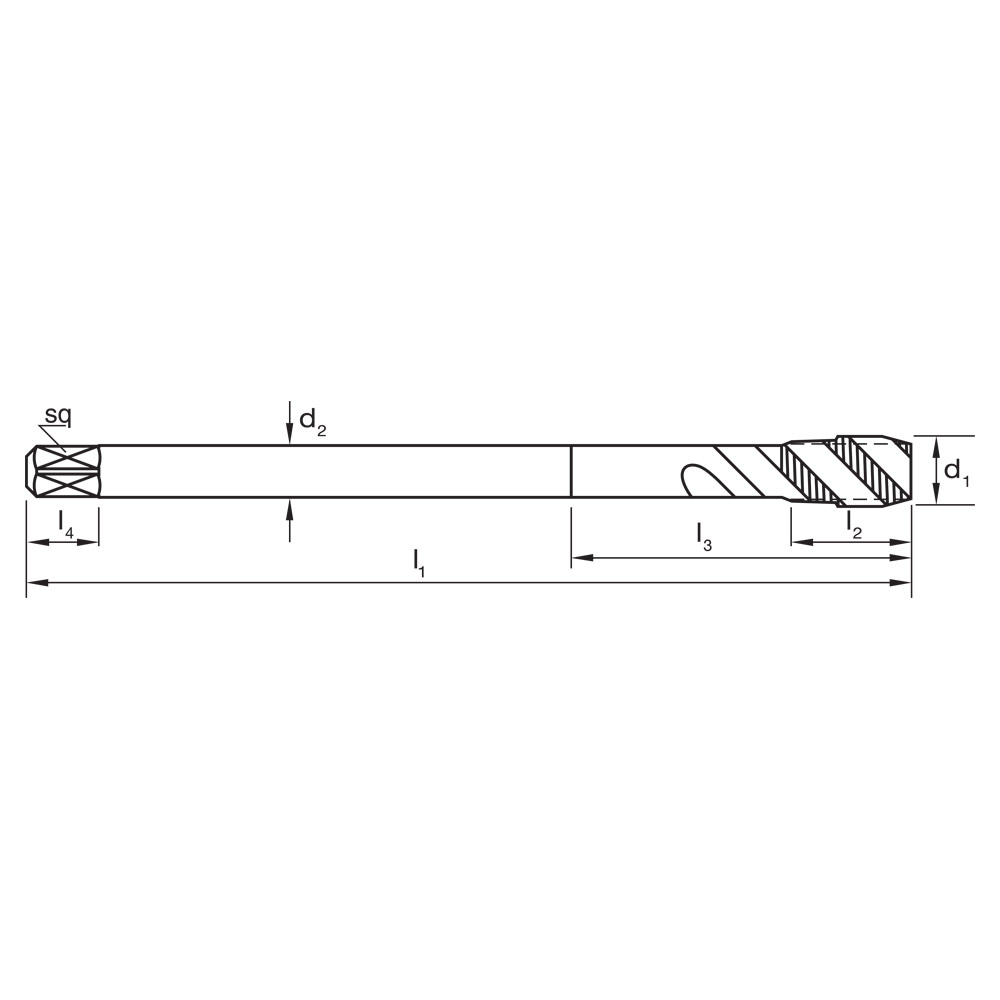

| Technical Details | |
|---|---|
| d1 | M27 |
| d2 | 20 |
| Drill Ø | 24 |
| Finish | Blu |
| Helix Angle | R45 |
| l1 | 160 |
| l2 | 30 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 3 |
| sq | 16 |
| Thread Form | M |
| Type | Spiral Flute |

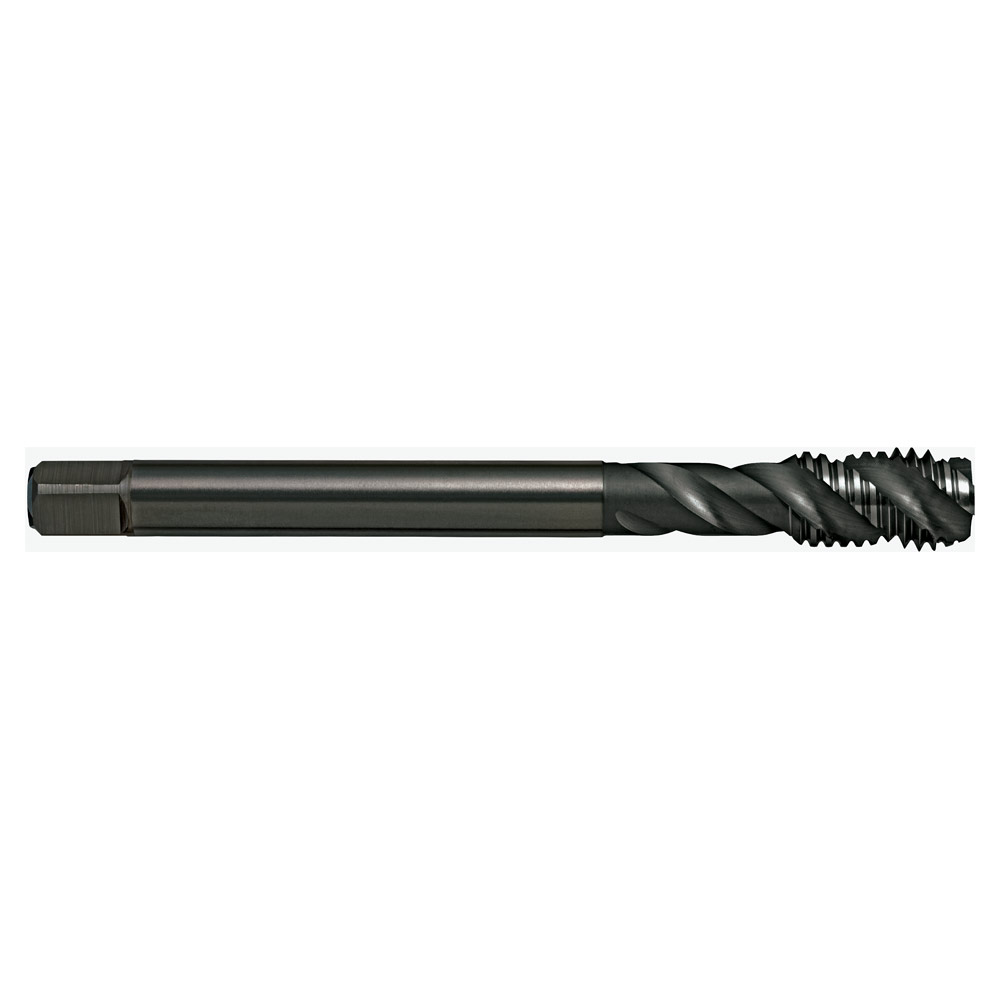

TAP T199 M 27 x 3 6H SPIRAL R45 VA-DH DIN376 C HSSE BLU
$374.35inc
GST
Spiral Flute Taps – R45 VADH
- Suitable for controlled tapping in deep holes
- Use in stainless steels and high strength steels up to 850N/mm2
- Blind holes
- Depths up to 3 x d1
