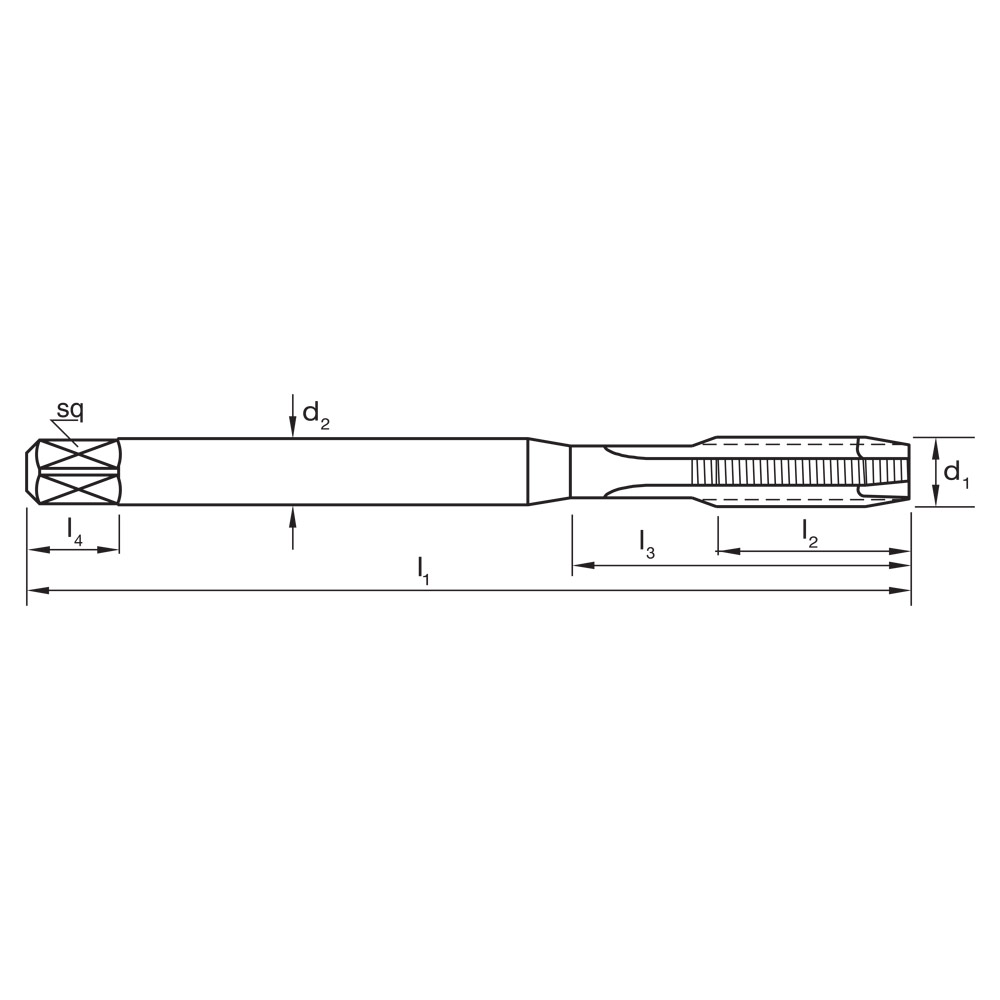

| Technical Details | |
|---|---|
| d1 | 1 1/8 |
| d2 | 22 |
| Drill Ø | 25 |
| Finish | Blu |
| l1 | 180 |
| l2 | 45 |
| Lead | Form B / 4.5 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 3xD |
| sq | 18 |
| Thread Form | UNC |
| TPI | 7 |
| Type | Spiral Point (Gun) |

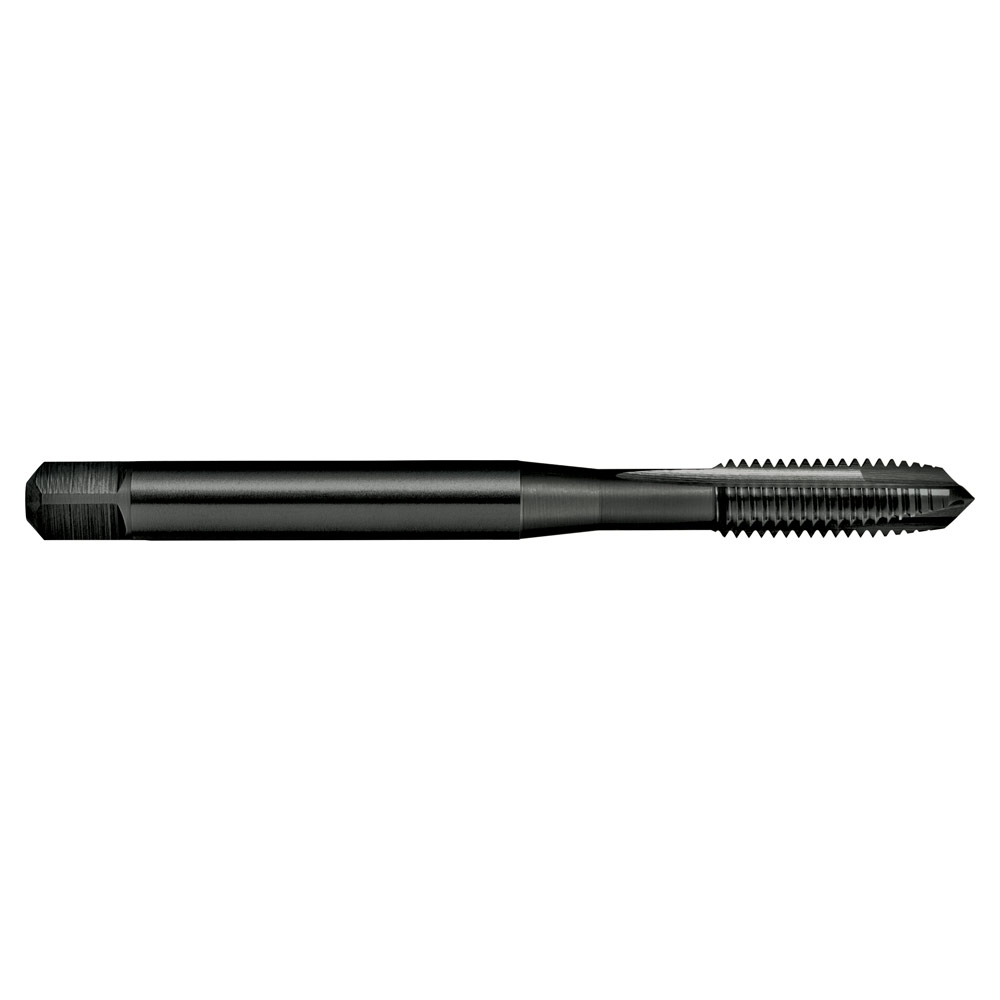

TAP T172 UNC 1-1/8-7 2BX GUN H DIN2184-1 B PM-Co. BLU
$397.82inc
GST
Spiral Point (Gun) Taps – H
- Use in harder short chipping materials up to 45 HRc
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
