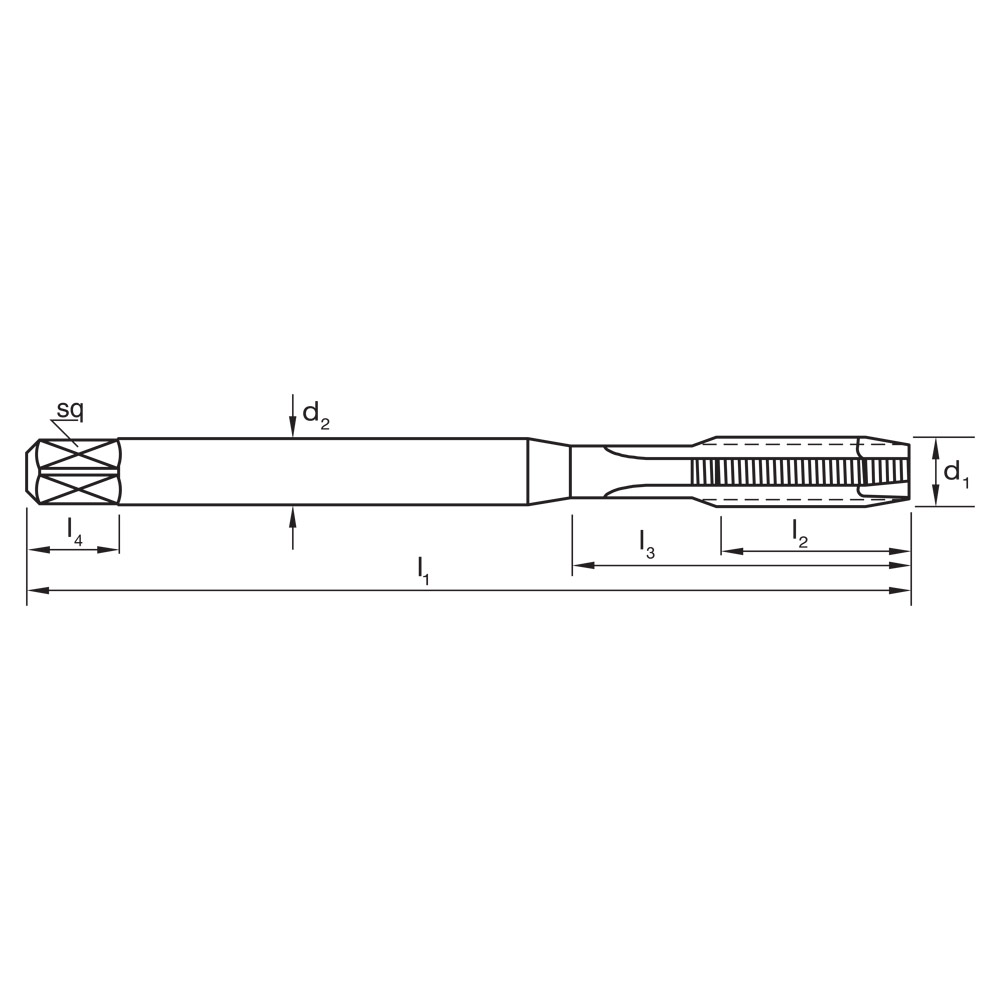

| Technical Details | |
|---|---|
| d1 | 1/2 |
| d2 | 9 |
| Drill Ø | 10.8 |
| Finish | Blu |
| l1 | 110 |
| l2 | 28 |
| Lead | Form B / 4.5 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 7 |
| Thread Form | UNC |
| TPI | 13 |
| Type | Spiral Point (Gun) |

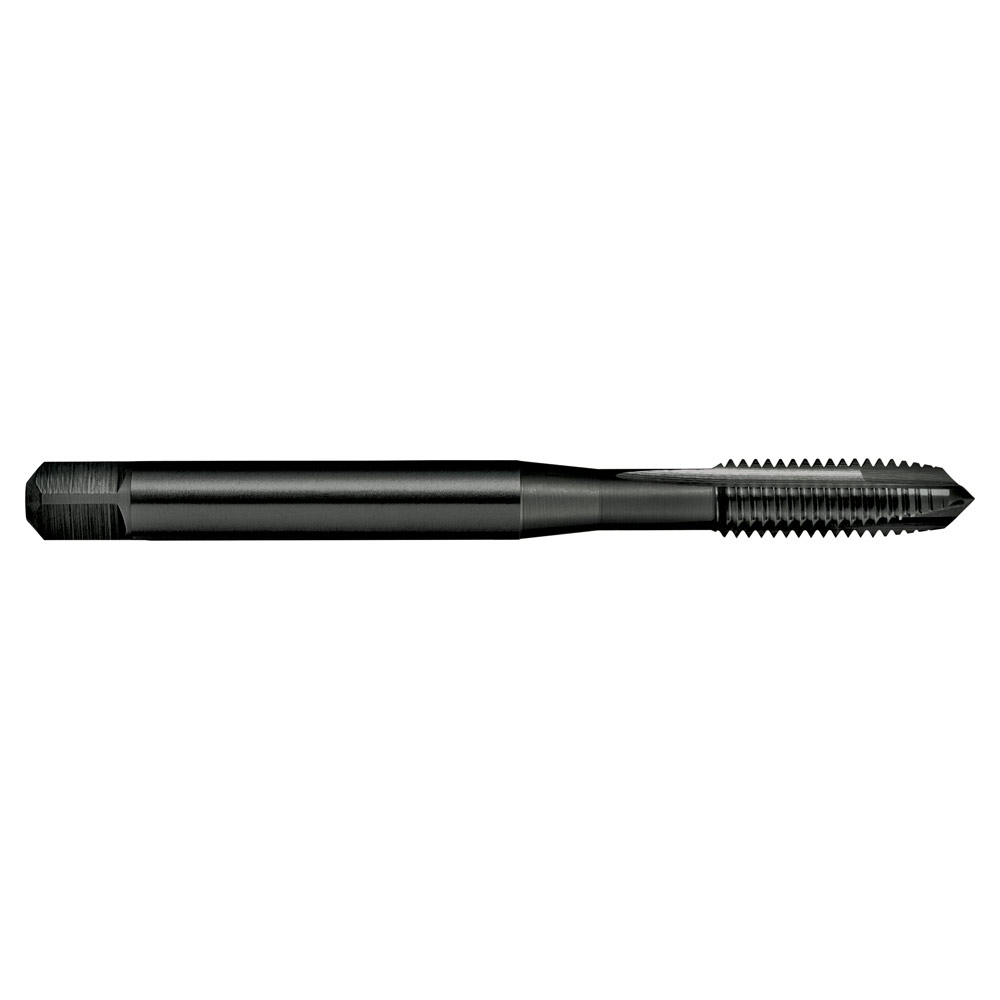

TAP T170 UNC 1/2-13 2B GUN VA DIN2184-1 B HSSE BLU
$105.08inc
GST
Spiral Point (Gun) Taps – VA
- Use in stainless steels and high strength steels up to 1000N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
