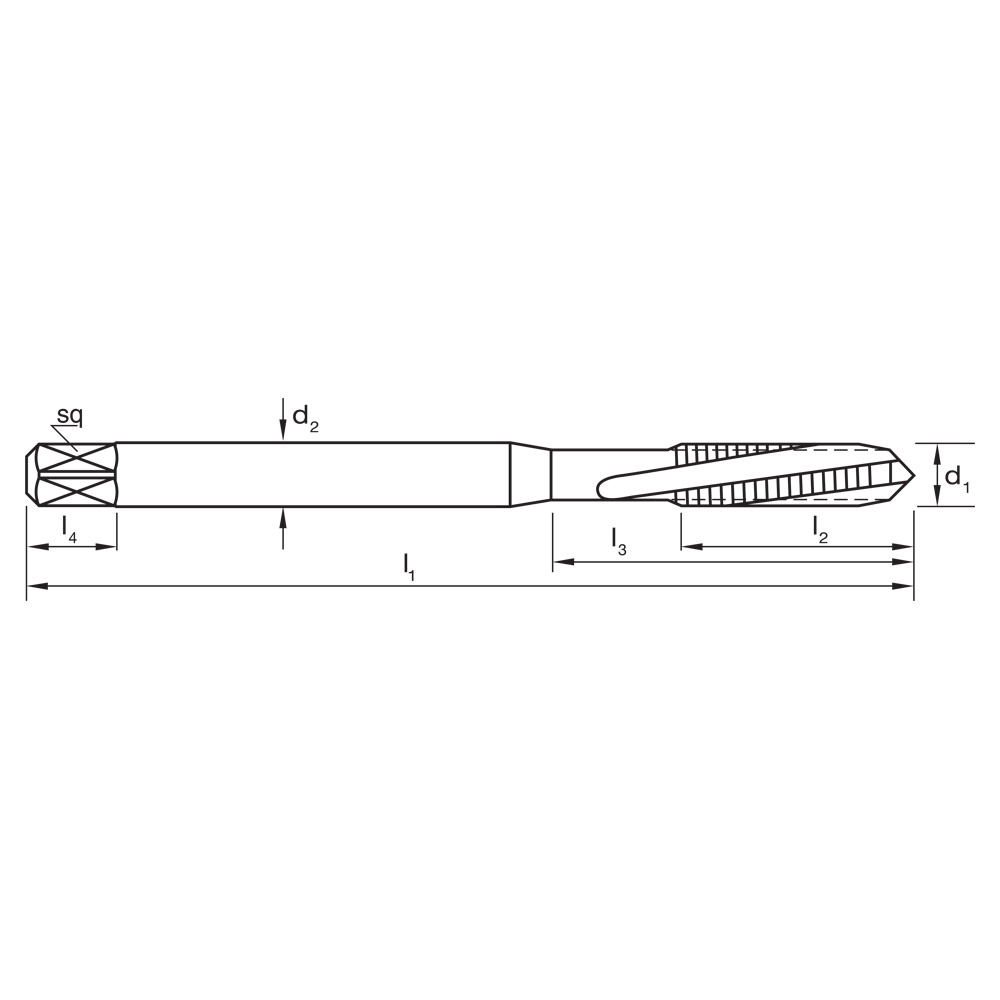

| Technical Details | |
|---|---|
| d1 | M8 |
| d2 | 8 |
| Drill Ø | 6.8 |
| Finish | TiCN |
| Helix Angle | L12 |
| l1 | 90 |
| l2 | 22 |
| Lead | Form B / 4.5 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 1.5xD |
| Pitch | 1.25 |
| sq | 6.2 |
| Thread Form | M |
| Type | Spiral Flute |

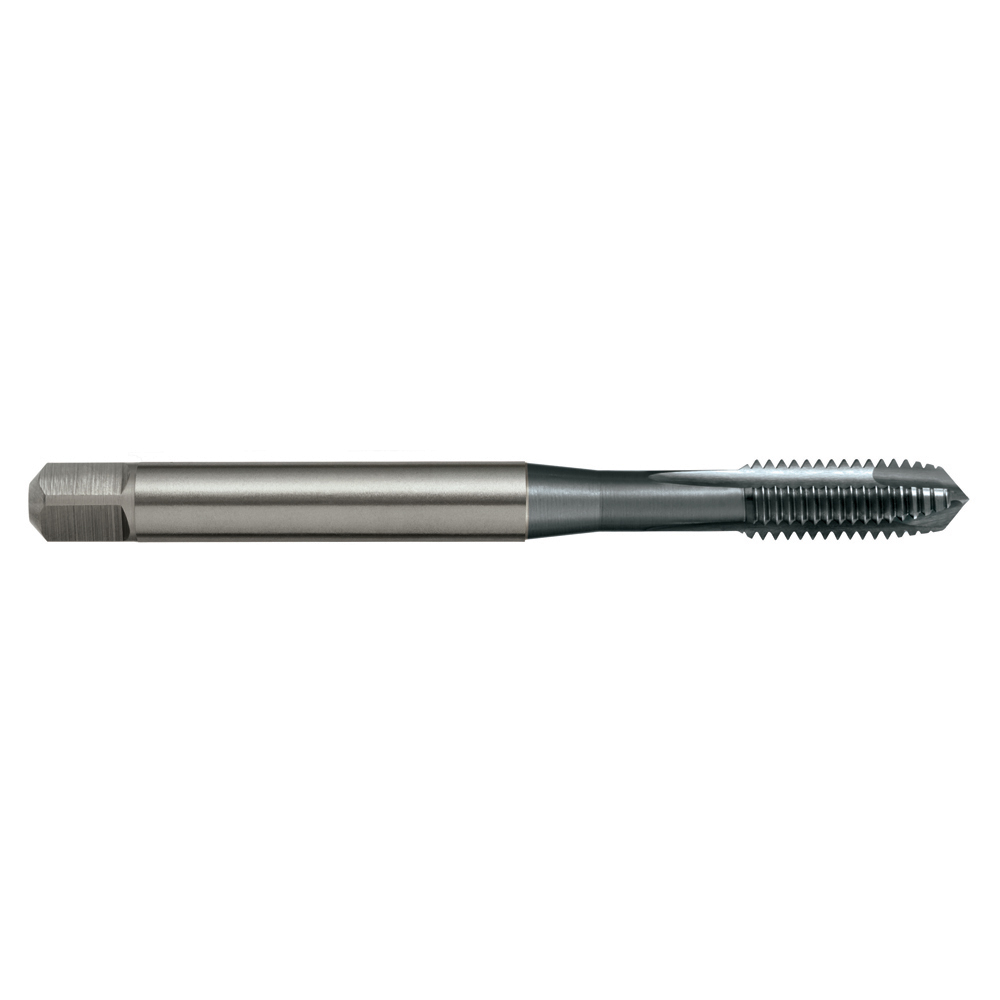

TAP T152 M 8 x 1.25 6HX SPIRAL L12 Ti DIN371 B PM-Co TiCN
$63.47inc
GST
Spiral Flute Taps L12 – Ti
- For Titanium based alloys
- For duplex and super duplex stainless steels
- For Nickel based alloys >850N/mm2 <1150N/mm2
- Tight tolerances and optimised microfinish For optimal process
reliability and excellent thread quality - Through holes up to approx. 1.5 x d1
View all: High Performance Taps - Spiral Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
