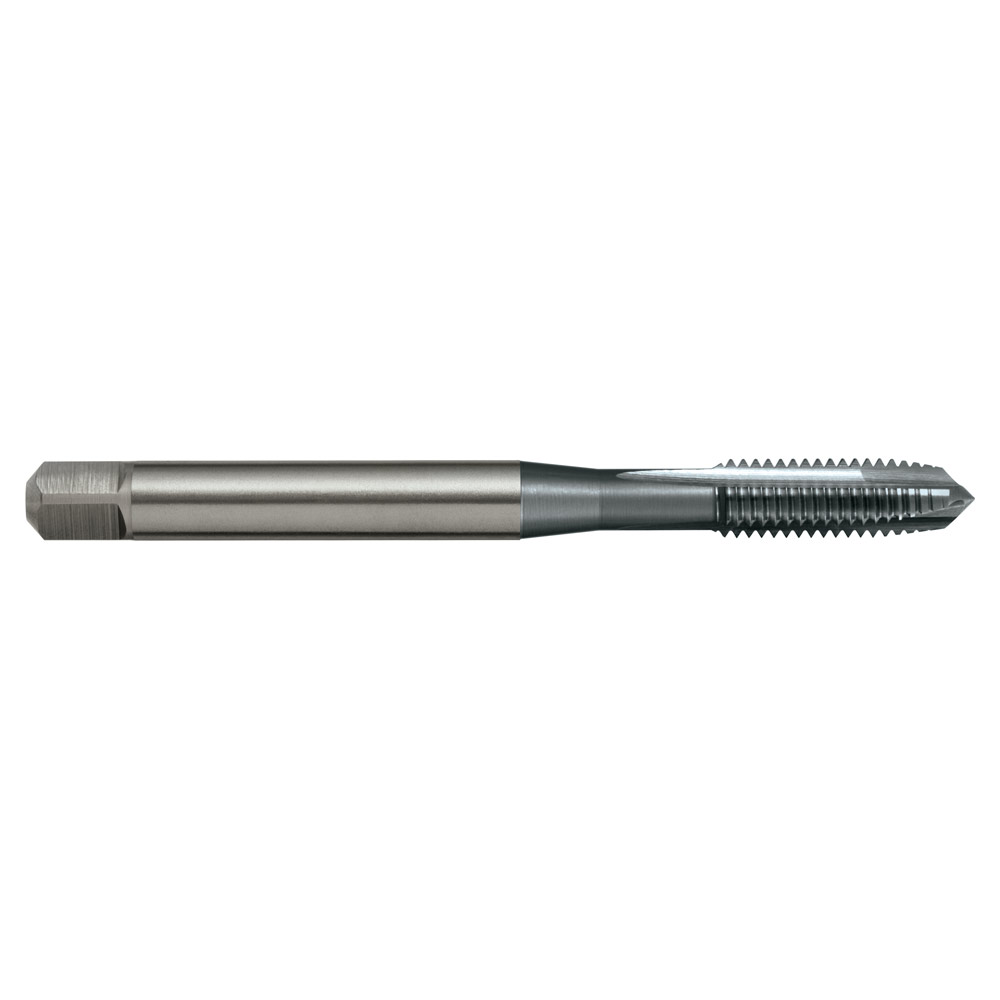

TAP T146 M 5 x 0.8 6HX GUN H DIN371 B PM-Co. TiCN
TAP T146 M 5 x 0.8 6HX GUN H DIN371 B PM-Co. TiCN - Image 2

TAP T146 M 5 x 0.8 6HX GUN H DIN371 B PM-Co. TiCN

SKU: HSTM5X0.8GNHTICS/C: T1460500Barcode: 9311963383118
Usually ships in 1 daySubject to availability

$54.97inc
GST

Price Match

Spiral Point (Gun) Taps – H

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1
More Info
View all:

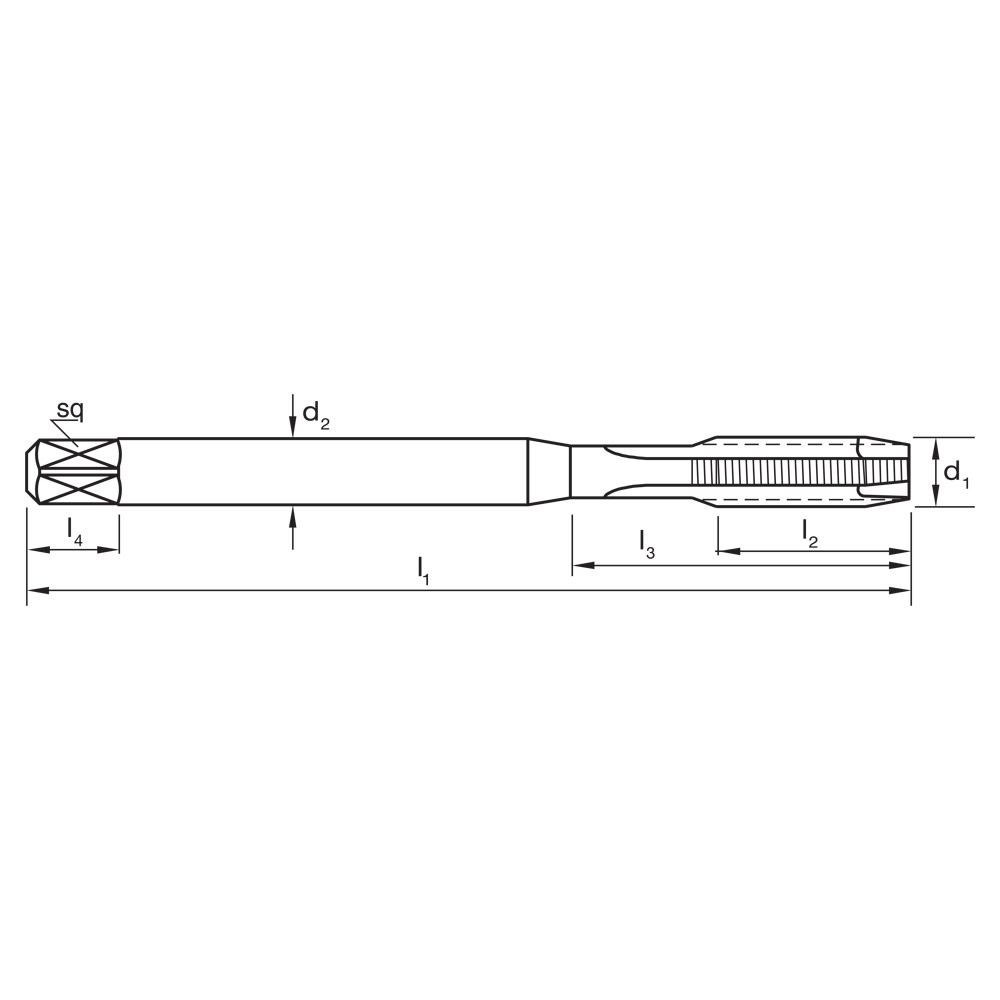

Technical Details
l216
d1M5
Drill Ø4.2
FinishTiCN
LeadForm B / 4.5 x P
MaterialPM-HSS Co
Max Cut Depth3xD
l170
Pitch0.8
d26
sq4.9
Thread FormM
TypeSpiral Point (Gun)

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
