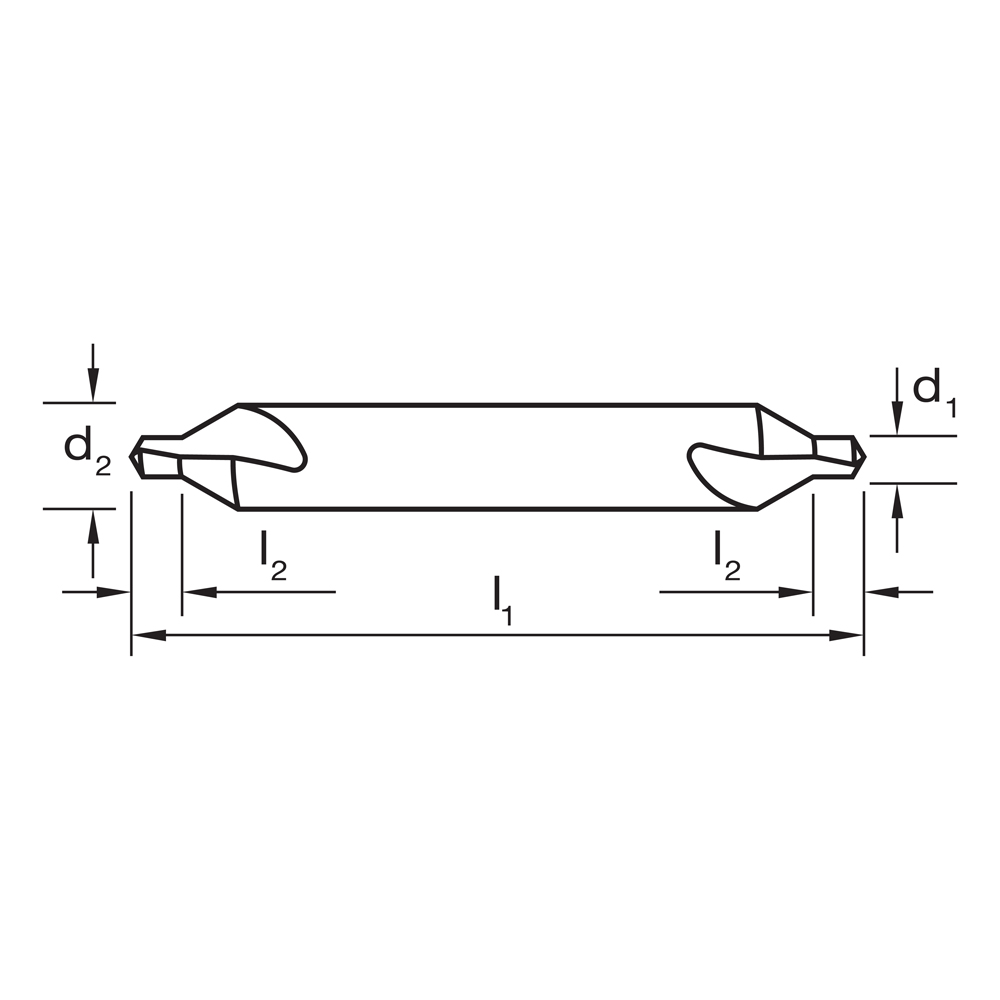

| Technical Details | |
|---|---|
| d1 (inch) | 3/16 |
| d1 (mm) | 4.76 |
| d2 | 7/16 |
| Finish | Brt |
| l1 | 70 |
| l2 | 6.35 |
| Material | VHM |
| Point Angle | 60° |
| Point Form | Stepped |
| Shank Form | HA |
| Shank Tolerance | h6 |

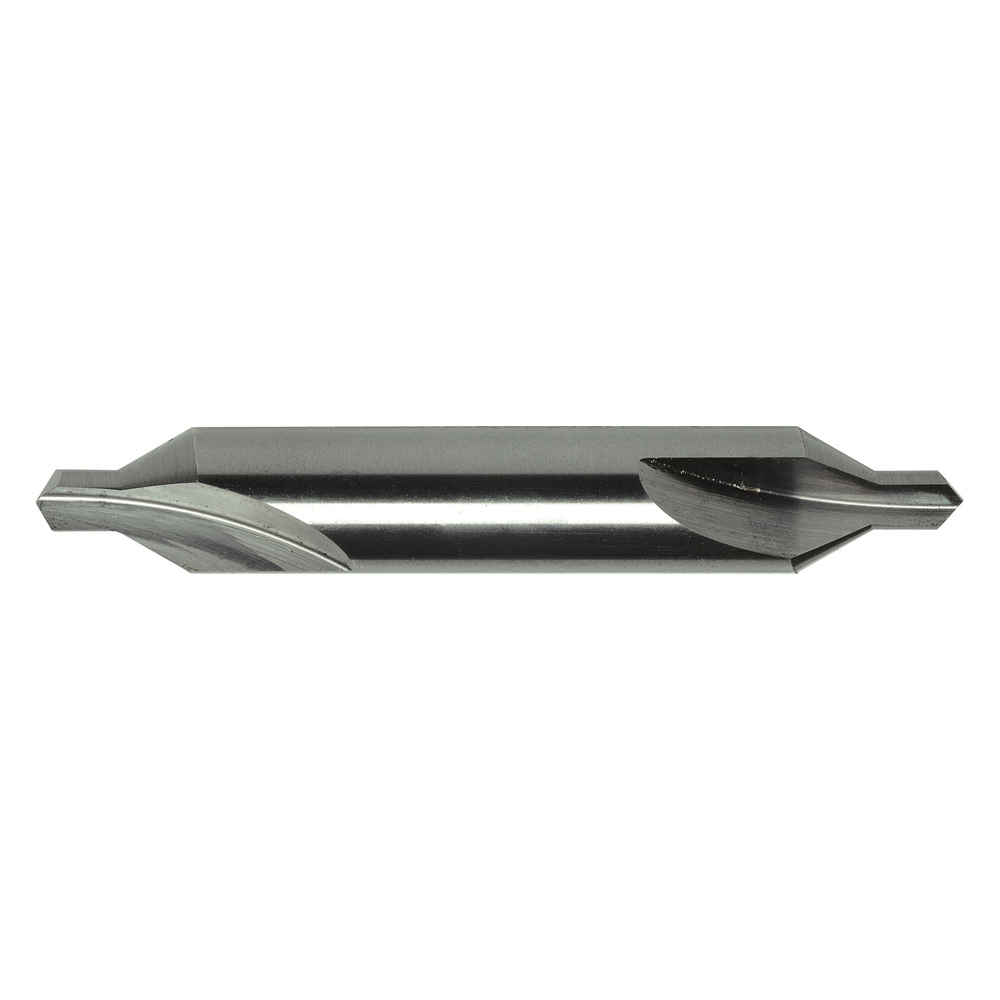

DRILL D318 #5 CENTRE 60DEG PLAIN ANSI B94-11 VHM
$230.75inc
GST
Centre Drills – Carbide
- Drills, Carbide, Centre
- Designed to maintain accurate centre holes on long production runs
- Also used to ensure accurate starting and centring when precision drilling is required
- Suitable for materials up to 1600N/mm2
View all: Centre
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
