DRILL D130 #20 PANEL Tupoint HSS-Co

SKU: DEPDCNO20BLS/C: D1300409Barcode: 9311963064352
Usually ships in 1 daySubject to availability

$14.36inc
GST

Price Match

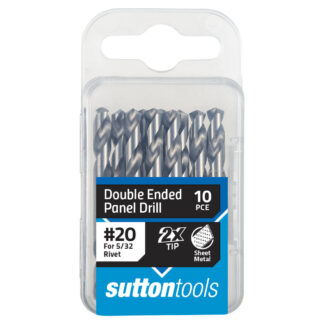

Panel Drills – Double Ended – Heavy Duty Cobalt

Sutton Tools Heavy Duty Cobalt panel drills have been developed to drill holes for rivets in flat and curved panels and used in sheet metal fabrication. The 5% cobalt formula improves abrasive & heat resistance, for tougher materials such as stainless steel. The double ended design doubles the life of the drill bit.
Note: Ensure the chuck jaws are fully tightened.

  • 135° self centering point minimises wandering when starting and ideal for thin materials
  • Flute length designed for shallow hole drilling no deeper than 1.25mm x diameter
  • Double ended design increases drill life. Ensure that the chuck jaws are fully tightened
  • Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
  • Colour Tempered surface finish enables identification of cobalt tool material
More Info
View all:
Technical Details
Diameter (inch)#20
FinishColour Temp
Flute Length19
MaterialHSS Co
O/A Length54
Point Angle135°
Shank4.09
