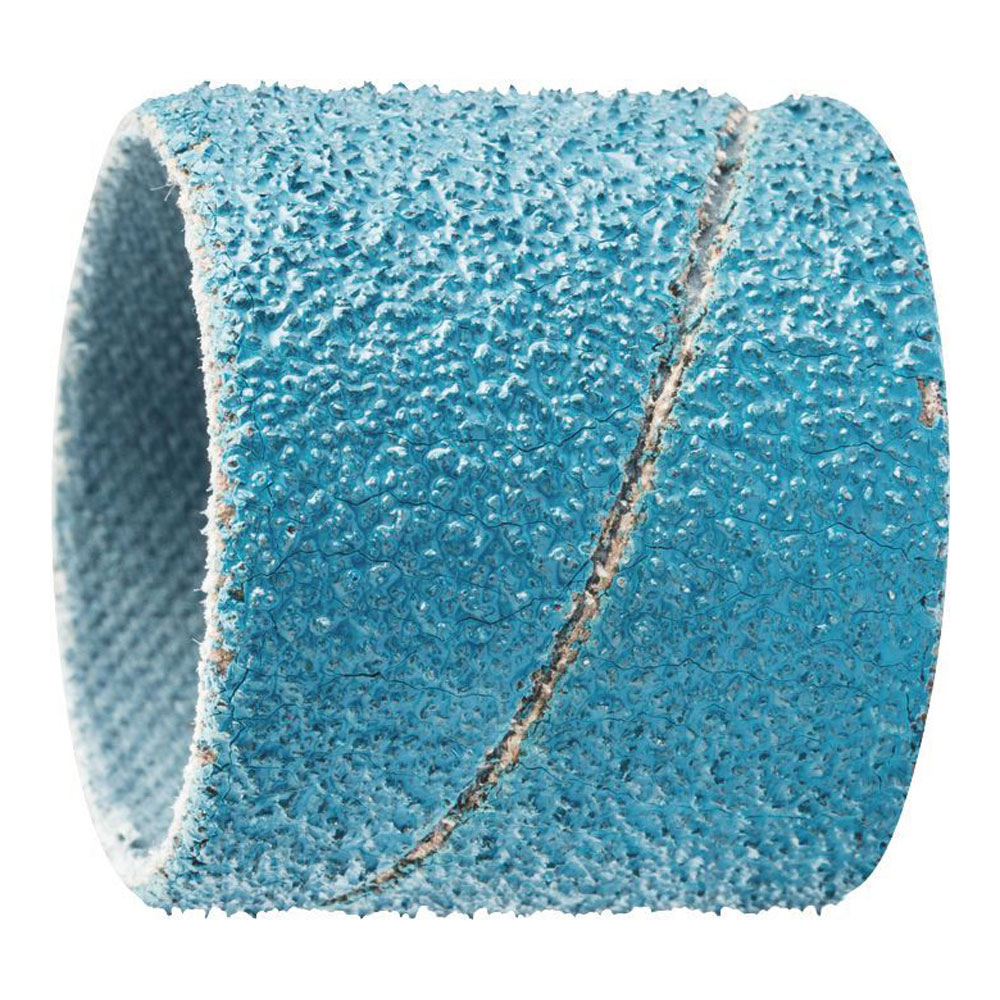

Abrasive Spiral Band – Zirconia GSB 2525 Z 60

Abrasive Spiral Band – Zirconia GSB 2525 Z 60

Designed for maximum stock removal. The outstandingly aggressive cutting quality of zirconia alumina is effective at increased contact pressures and ensures exceptional stock removal.

Abrasive: Zirconia alumina Z

Use matching, reusable rubber drum holder

Abrasive spiral bands are designated “Cylindrical Abrasive Sleeves” according to ISO 2421.

Advantages:
– Because of slots, the holder expands during use, guaranteeing that the abrasive spiral band is firmly clamped in place
– Outstanding tool life due to special manufacturing process – even under the most demanding operating conditions
– Particularly high stock removal and high aggressiveness of the abrasive

Recommendations for use:
– Abrasive spiral bands can be mounted and removed by turning them slightly to the right
– Abrasive spiral bands are easier to mount when the rubber drum holder is mounted on the tool drive
– The secure attachment of the abrasive spiral band is only guaranteed if the minimum rotational speed is observed
– Abrasive spiral bands achieve their best performance at a recommended cutting speed of 20-30 m/s
– Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Application examples:
– Removing weld seams in steel construction
– Fine grinding work in equipment, tank and vessel construction
– Post-processing for assembly and repair work
– Machining edges and contours in aircraft engine construction

Safety notes:
– The maximum permitted peripheral speed is 30 m/s
– For safety reasons, it is imperative to remain within the stated maximum permitted rotational speed at all times
– Do not allow abrasive spiral bands to protrude beyond the rubber body
– Refer to below product data sheet for recommended safe speeds
