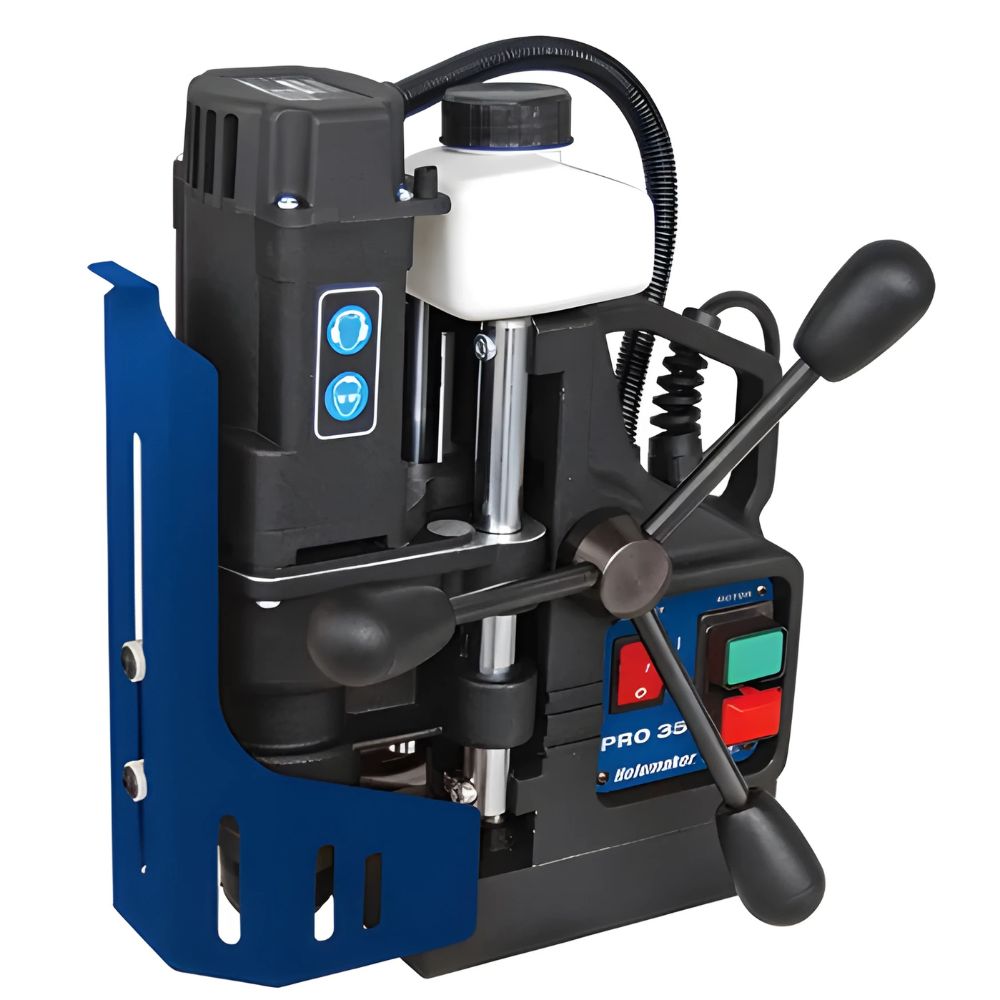

Holemaker PRO35 Magnetic Base Drill, 240v, CAP: 35mm Dia. X 52mm

SKU: HMPRO35S/C: HMPRO35Barcode: 9328042011329
Usually ships in 2 daysSubject to availability

$1,369.50inc
GST

The Holemaker PRO 35 is a high quality, compact and robust, fully featured machine. Weighing in at just 10kg, this machine is ideal for those on-site and overhead tasks, whilst the solid, robust construction means the HMPRO35 is perfect for everyday manufacturing type applications.

The 35mm diameter and 52mm depth cutting capacity will suffice for most general holemaking requirements. Other standard features include a gravity feed coolant system with a magnetically attached coolant bottle, which can be easily removed and attached to the work piece, allowing coolant feed whilst drilling in horizontal applications. The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions.
Dual rail slide system provides rigidity and eliminates the need for gib adjustments. The well designed cutter guard system is easy to use and practical.

*16mm twist drill capacity using Weldon Shank twist drill bits.

  • Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
  • Supplied In Metal Carry Case With Cutter Guard & Safety Strap
  • Through coolant system
  • Powerful dual coil magnet
Technical Details
Capacity (Depth)52mm
Capacity (Diameter)35mm
Height306mm min/376mm max
Input Power1000w Single Phase 240v
Magnetic Dead Lift9500Nm On 25mm Steel Plate
Motor Power920w
Speed350rpm
Stroke70mm
Through CoolantYes
Weight10kg

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
