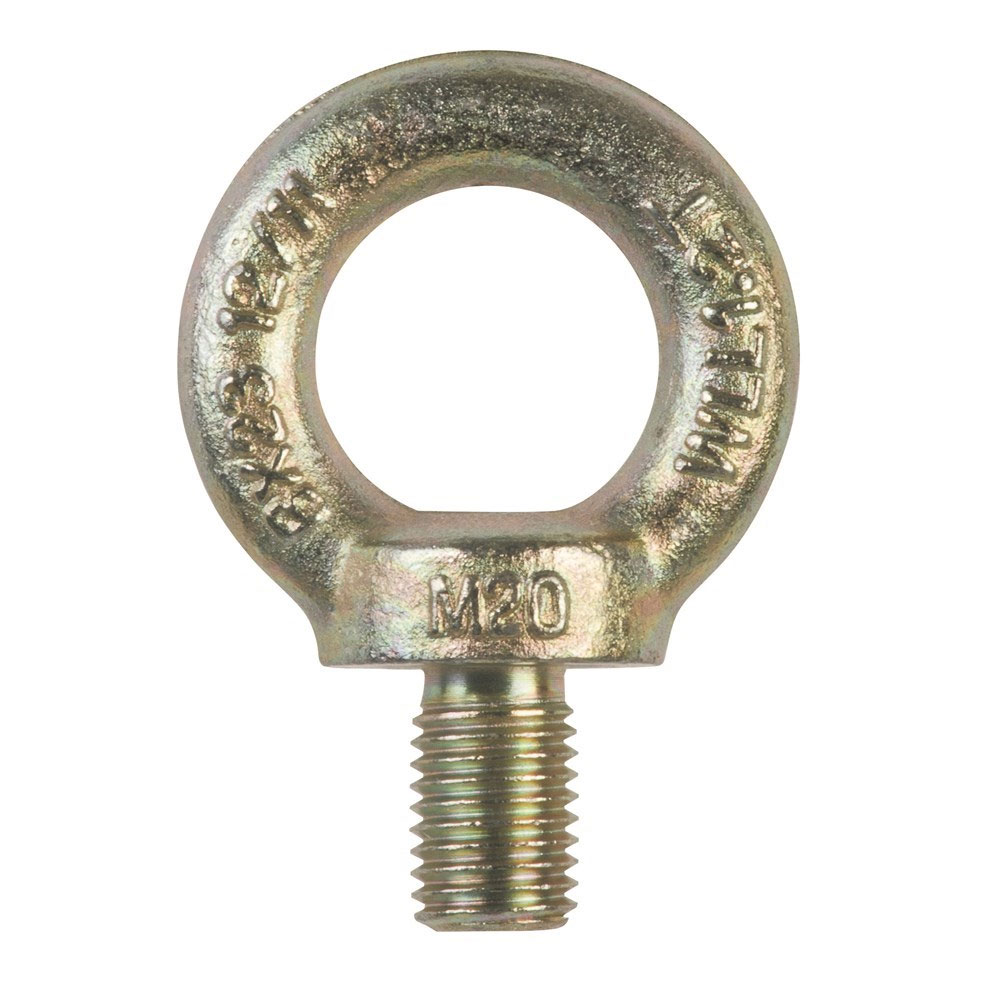

Eyebolt ZP Metric WLL 1.2t Large Eye 20mm

SKU: LEBM20WES/C: 359120Barcode: 9322297006741
Usually ships in 1 daySubject to availability

$10.54inc
GST

Beaver lifting eyebolts and eyenuts come in a range of threads, including BSW, UNC, and Metric, and are predominately used for lifting applications. This eyebolt complies to AS 2317. It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shoulderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.

  • For lifting applications
  • Made from forged steel
  • Complies to AS 2317
View all:

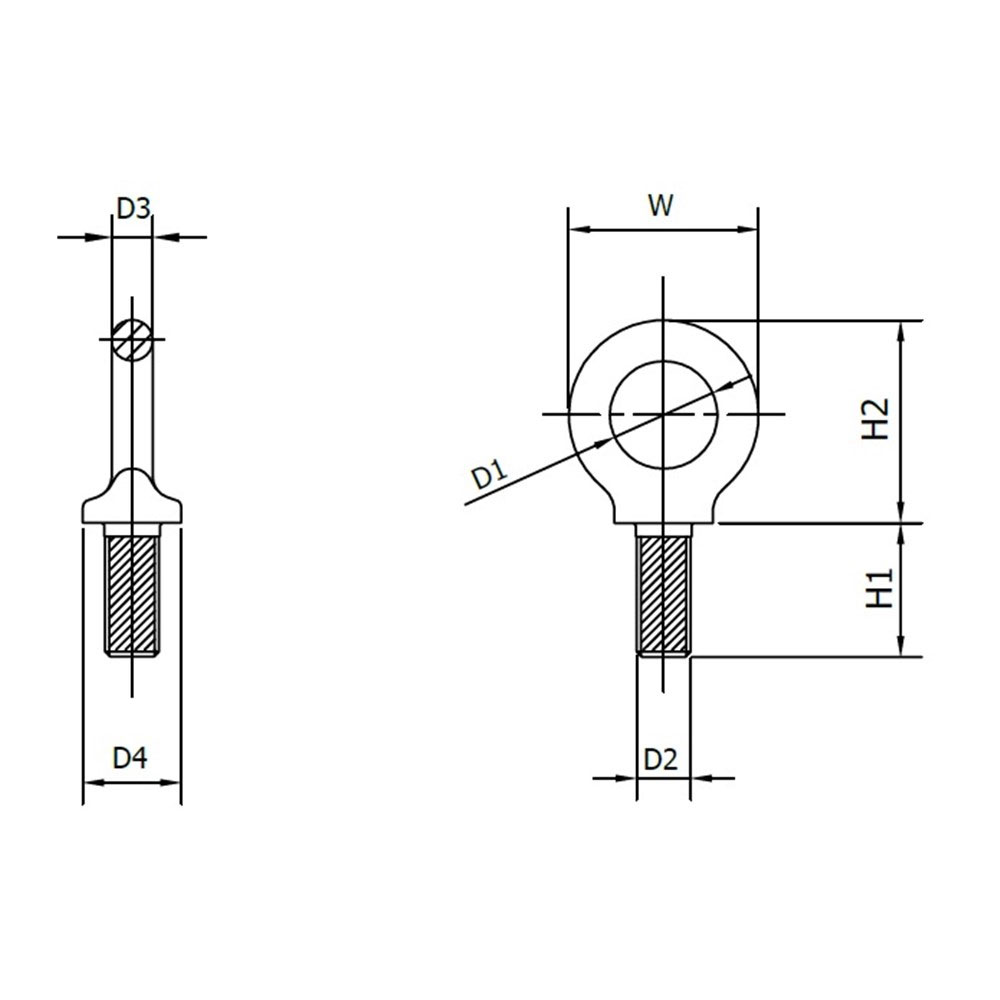

Technical Details
d140mm
d220mm
d316mm
d440mm
FinishZinc Yellow
h130mm
h270mm
Thread Size20mm
Transverse Load Tonne0.3
W72mm
WLL1.2t

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
