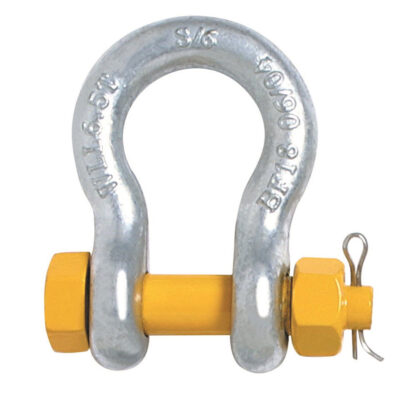

Shackle Safety Bow Gr S Galv 32x35mm WLL 12.0T
Shackle Safety Bow Gr S Galv 32x35mm WLL 12.0T - Image 2

Shackle Safety Bow Gr S Galv 32x35mm WLL 12.0T

SKU: BEA244332S/C: 244332Barcode: 9322297008868
Usually ships in 1 daySubject to availability

$121.87inc
GST

Price Match

These yellow pin Grade S safety pin shackles are manufactured by Beaver, and comply to AS 2741. Safety pin shackles are used for long-term or permanent applications, or where the load may slide on the pin, causing rotation of the pin. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

  • Recommended for applications where load may slide on pin
  • For long-term/permanent applications
  • Recommended where hight strength is required
  • Yellow Pin
More Info
View all:

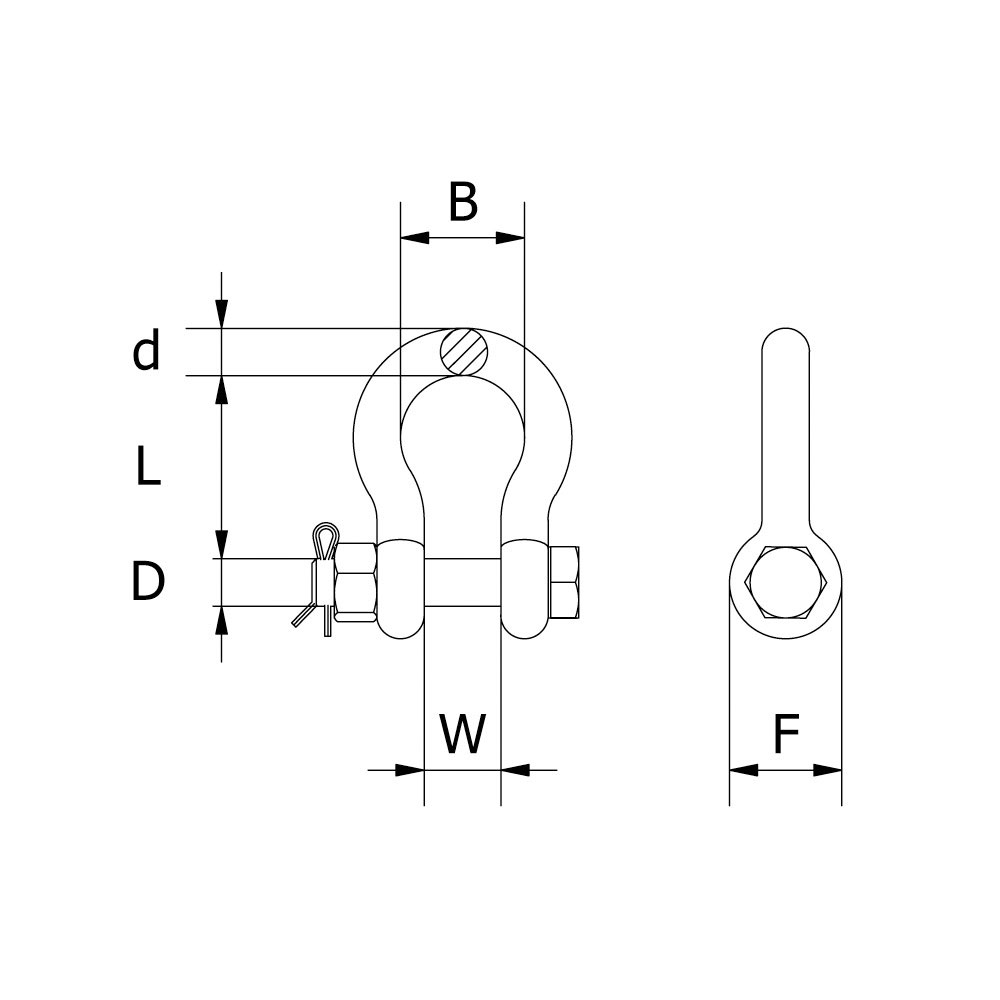

Technical Details
Closing MethodSafety Pin
Diameter32mm
Diameter Boss83mm
FinishYellow Pin
GradeGrade S
Inside Length119mm
Inside Width52mm
Pin Diameter35mm
ShapeBow
Size32mm x 35mm
Width of Bow76mm
WLL12t

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
