Technical Details | |
---|---|
1st Max Cut Depth | 15.5000mm |
Adapter Type Machine Side | Cylindrical |
Adapter/Shank/Bore Dia. | 25.0000mm |
Body Diameter Max | 23.2500mm |
Body Material Group | Steel |
Clamping Type | Screw Clamping |
Coolant Supply | Yes |
Effective Cutting Dia. | 25.0000mm |
Family | Cylindrical End Mills • Mill 4-15™ |
Hand of Tool | R - Right |
Head Length | 43.0000mm |
Insert Shape | X - Rectangle Mill 4 90° |
Machining Operation | Face/Chamfer Milling |
Material | Steel |
Milling Type | End Mill |
Number of Flutes | 2 |
Number of Inserts | 2 |
Overall Length | 100.0000mm |
Position of Insert | Lay Down |
Rake Angle Style | Double Negative |
Shank Length | 57.0000mm |

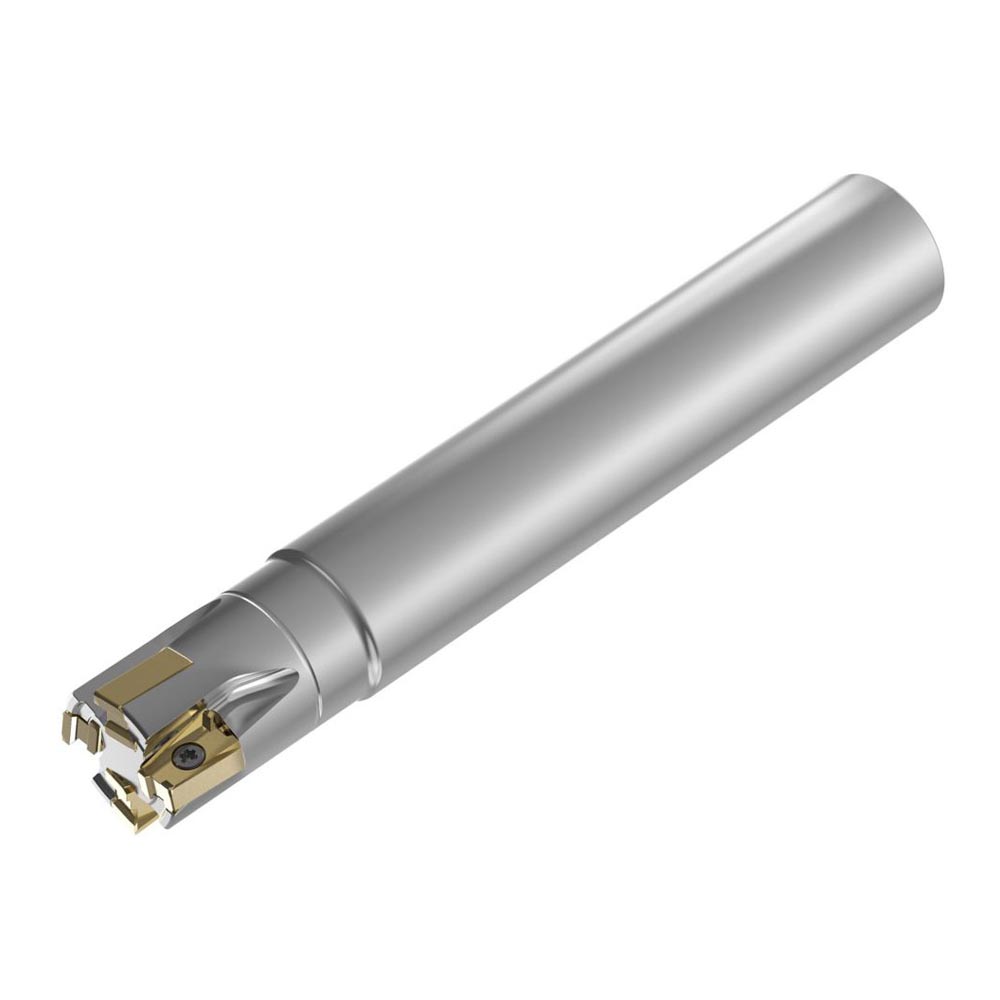

Kennametal M4D025Z02A25LN15L100 Mill 4-15 D = 25 Z = 2 End Mill Cutter
SKU: KEN5531915S/C: 5531915
Usually ships in 3 daysSubject to availability
$482.33inc
GST
Price Match
Kennametal was founded on the strength of a technological breakthrough, and a list of highlights demonstrates that it has continued to lead its industry in innovation.
- Superior wall and surface finish capabilities.
- True 90° capabilities. Stepless solution when using multiple steps.
- Engineered to run up to .610" (15,5mm) depth of cut.
- Effective internal coolant feature,reaching the cutting edge precisely.
- Kennametal leads the industry in innovation
- World-class product development
View all: Mill 4™ Series
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
