Technical Details | |
---|---|
1st Max Cut Depth | 15.5000mm |
Adapter Type Machine Side | Shell Mill |
Adapter/Shank/Bore Dia. | 22.0000mm |
Body Diameter Max | 47.8900mm |
Body Material Group | Steel |
Clamping Type | Screw Clamping |
Coolant Supply | Yes |
Effective Cutting Dia. | 50.0000mm |
Family | Face Mills • Mill 4-15™ |
Hand of Tool | R - Right |
Insert Shape | X - Rectangle Mill 4 90° |
Machining Operation | Face/Chamfer Milling |
Material | Steel |
Milling Type | Face Mill (Shell Mill) |
Number of Flutes | 6 |
Number of Inserts | 6 |
Overall Length | 40.0000mm |
Position of Insert | Lay Down |
Rake Angle Style | Double Negative |

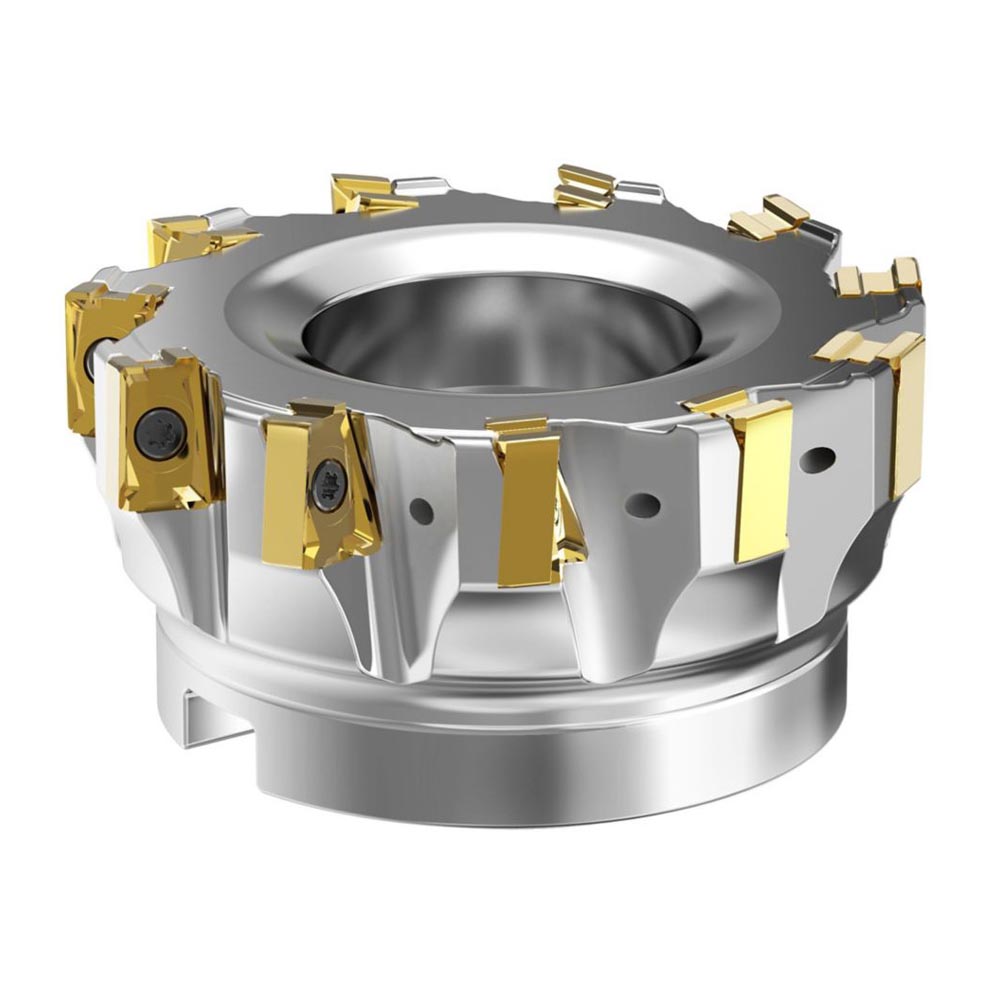

Kennametal M4D050Z06S22LN15 Mill 4-15 D = 50 Z = 6 Shell Mill
SKU: KEN5528634S/C: 5528634
Usually ships in 3 daysSubject to availability
$906.44inc
GST
Price Match
Kennametal was founded on the strength of a technological breakthrough, and a list of highlights demonstrates that it has continued to lead its industry in innovation.
- Superior wall and surface finish capabilities.
- True 90° capabilities. Stepless solution when using multiple steps.
- Engineered to run up to .610" (15,5mm) depth of cut.
- Effective internal coolant feature, reaching the cutting edge precisely.
- Kennametal leads the industry in innovation
- World-class product development
